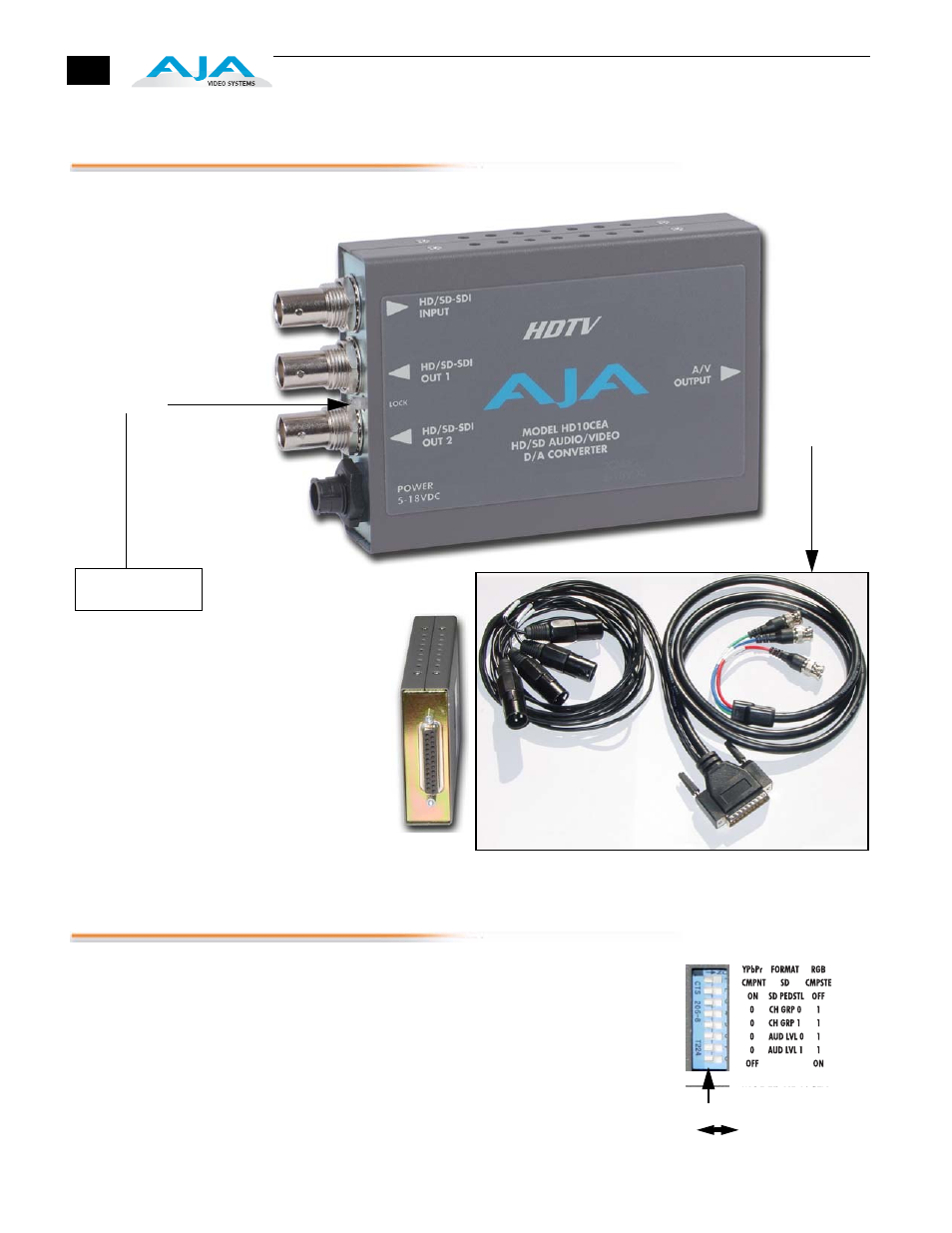

I/O Connections

HD10CEA Converter

User Controls

The user interface for the HD10CEA is an 8-switch DIP
accessible through a cut-out in the bottom of the unit.
Use the DIP switches to configure video outputs,
pedestal, select audio channel groups, and set audio
level.

Switches 1 through 3 configure video output format.
Switches 4 through 7 select the audio channel group
and audio level. The exact function of each DIP switch
and what it controls is described on the following
pages.

SD/HD-SDI Input

Audio and Video

BNC

SD/HD-SDI Loop

Output 1

+ 5-18VDC

Power

Input

Output

Lock LED

SD/HD-SDI Loop

Output 2

via Cable
Snake Connector
(25-pin D)

Configuration
Determined by
DIP switch on
back of
Converter

Audio and Video

Right Side

View

Green: Lock to SD

Red: Lock to HD

DIP Switches

LEFT RIGHT

AUX

OFF ON
