3 AJA HD10CEA SDI/HD-SDI to Analog Audio/Video Converter
Introduction
The HD10CEA converts SDI/HD-SDI video with embedded audio to analog
video and 4 channel balanced analog audio. SD video outputs can be
configured as YPbPr (Betacam or SMPTE/EBU-N10), RGB, composite or YC (S-
Video). HD video outputs can be configured as YPbPr or RGB. The 4 audio
channels can be selected from group 1-4. Audio and video output connections
are available on a 25 pin “D” subminiature connector (breakout cable supplied).
All video/audio configuration is done by external dipswitch selection. This
versatile, low-cost, miniature monitoring solution also outputs two loop-thru
SDI/HD-SDI outputs.
Features
• Digital to Analog Audio and Video Converter
• SDI/HD-SDI with Embedded Audio Input
• SD Component or Composite Video Outputs (SD Input)
• HD Component Video Outputs (HD Input)
• 4 Channel Balanced Audio Output
• 2 Equalized, Loop-Thru SD/HD-SDI Outputs
• Selectable Audio Channel Pair/Group
• Audio/Video Configurable via Dipswitch
• Uses 5-18Vdc power (supply sold separately)
Input Formats Standard Definition inputs supported:
• 525i 29.97 and 625i 25
High Definition inputs supported:
• 1080p component 23.98psf/24psf
• 1080i component 50/59.94/60
• 720p component 50/59.94/60

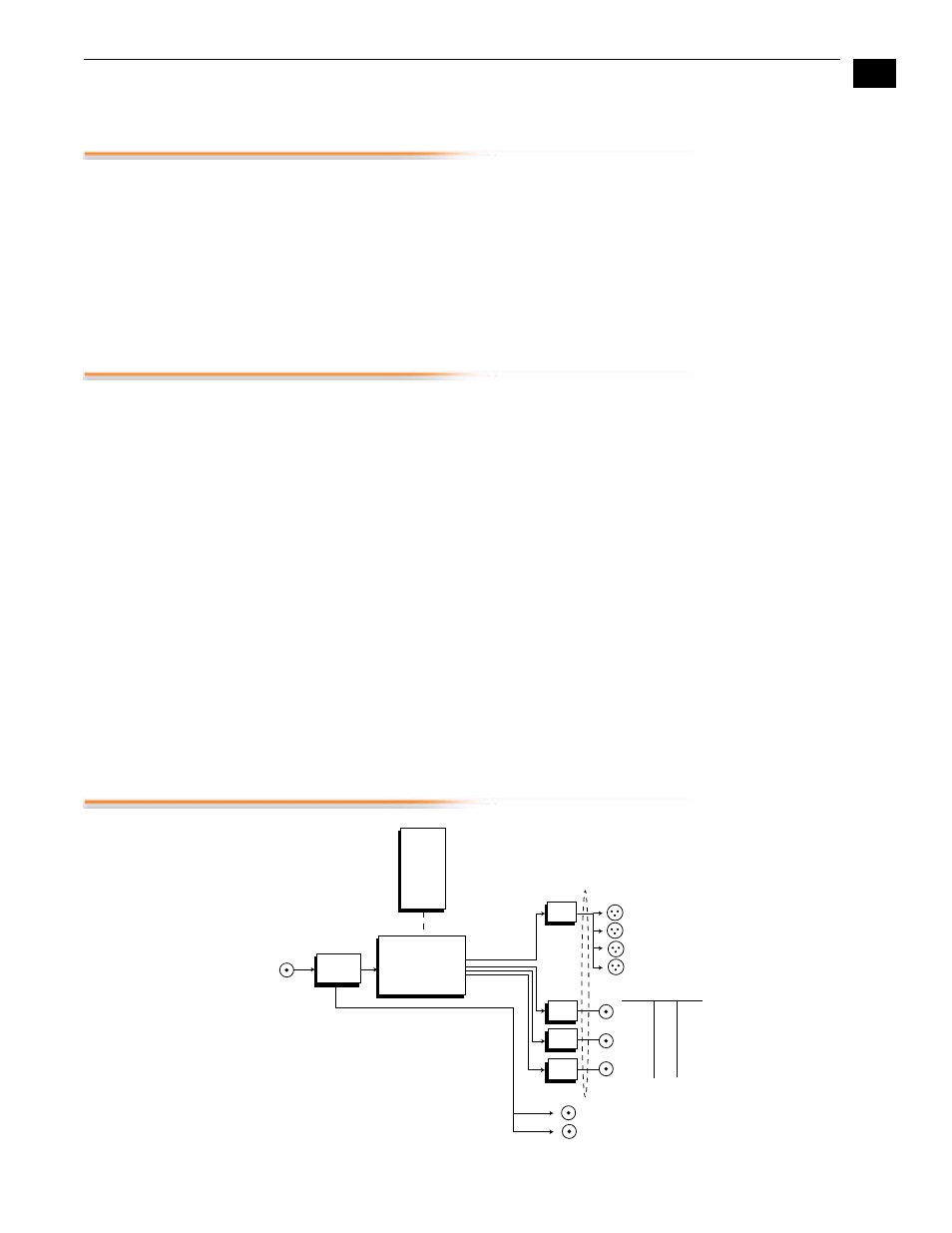

Block Diagram
HD10CEA Converter, Simplified Block Diagram
Serial
Video
with Embedded Audio
In
Filter
Audio
Filter
Filter
DIP
Switch
User
Interface
for
Feature
Selection
Video and
Audio D/A ReClock
COMPONENT OUTPUTS (selected by DIP switch)
Serial Video Out 1
Serial Video Out 2
COMP
Break-out
Cable
Y
C
Clocked Loop-through SDI Outputs
B
G
R
Y
Pb
Pr
Channel 1 Right
Channel 1 Left
Channel 2 Right
Channel 2 Left
