3 AJA HD10AVA Converter
Introduction
The HD10AVA is a miniature, high-quality, audio/video, HD/SD A/D converter.
The HD10AVA automatically detects the video input format and embeds the
audio inputs in the SDI/HD-SDI outputs. The HD10AVA is useful for adding an
SDI/HD-SDI audio/video output to tape decks or any professional video
equipment with analog outputs. The HD10AVA is especially useful for adding
HD-SDI outputs to most HDV cameras or decks by using the component
outputs of such devices. The HD10AVA uses a breakout cable for audio/video
inputs and provides 3 SDI-HD-SDI on BNCs.
Features
• High-Quality SD/HD Audio/Video A/D Converter
• SD Component, Composite or Y/C Video Input
• HD Analog Component Video Input
• Four Channel Balanced Analog Audio Input
• 3 SDI/HD-SDI w/embedded Audio Outputs
• 12 Bit Video, 24 Bit Audio A/Ds
• Automatic Multi-Standard
• External Dip Switch Configuration
• LOCK LED indicates type of input source (SD-Green or HD-Red)
• 5-18V Power
Video SD Input Modes Supported
• 525i 29.97 and 625i 25
HD Input Modes Supported
• 1080p component 23.98psf/24psf
• 1080i component 50/59.94/60
• 720p component 50/59.94/60
Audio The HD10AVA supports 4 analog audio input channels (2 stereo pairs) at 48
KHz. These inputs are connected via a supplied cable that attaches to a D-
connector on the converter. Connections are made via high quality XLRs.

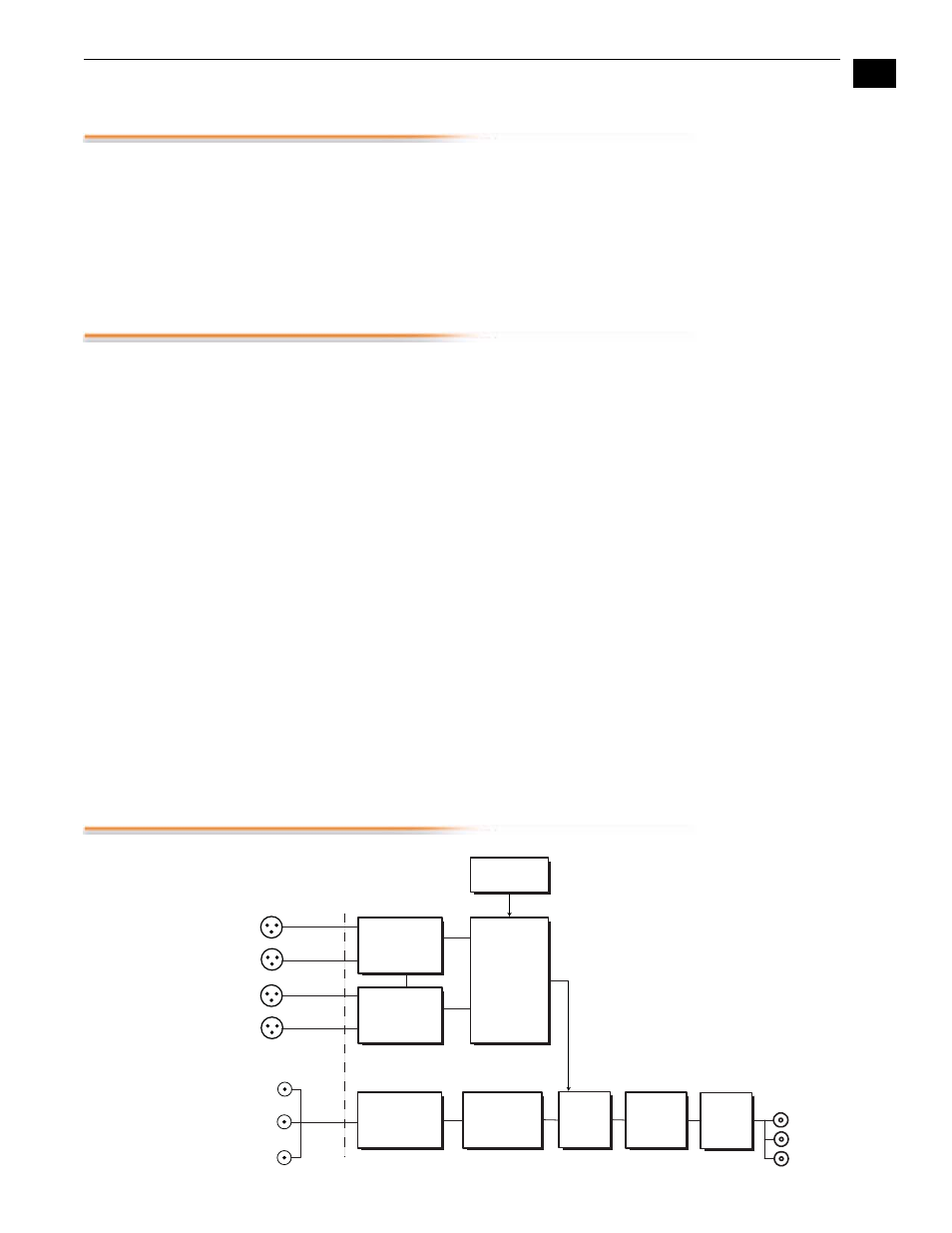

Block Diagram
Video ADC Dejitter
Embed
Audio
Line
Drivers Serializer
Audio ADC
Audio ADC
Audio
Process
Embedder
Control
Audio in1
Audio in2
Audio in3
Audio in4
Composite,
S-Video,
Component
Analog
Input Connectors
SDI_out1
SDI_out2
SDI_out3
Channel 1&2
Channel 3&4
HD10AVA, Block Diagram
