4

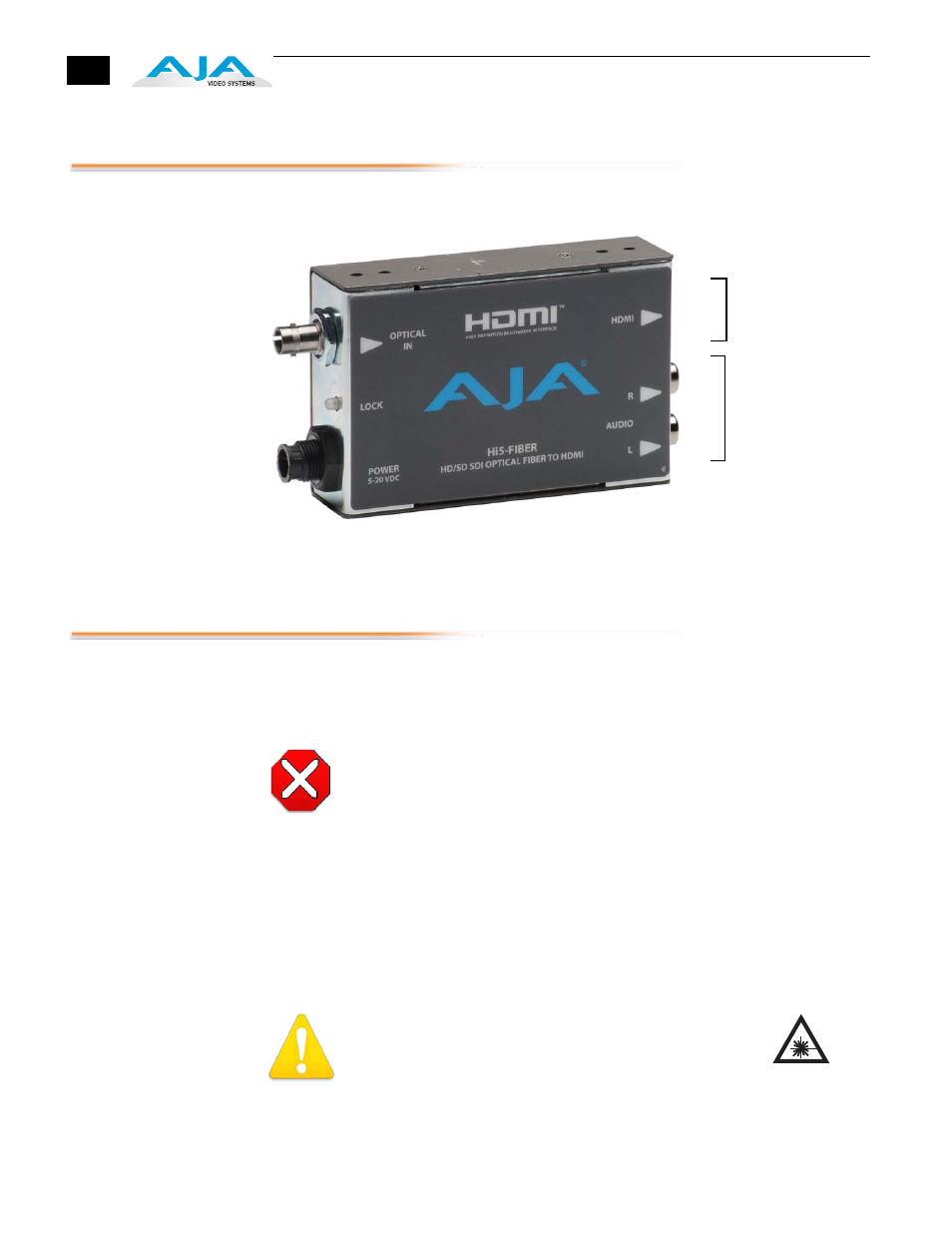

I/O Connections
Hi5-Fiber Converter
Installation
Typically, Hi5-Fiber installation consists of the following steps:
1. Ensure the Hi5-Fiber is disconnected from power.
2. Connect video equipment to the Fiber ST connector and HDMI connector.
Caution!
Hi5_Fiber requires the use of “single mode 1310nm compatible” fiber optic
cable.
3. Connect audio equipment to RCA connectors (optional)
4. Apply +5-20 VDC power to the converter (AJA power supply model DWP or
DWP-U).
5. The Hi5-Fiber will now run using the default factory settings. If you wish to
alter the factory settings, you’ll need to reset the factory internal jumper.
This process is detailed on the following pages.
Warning!
Active fiber-optic cables emit radiation invisible to the human
eye. Do not look directly at the end of an active fiber-optic cable;
the Hi5-Fiber is a Class 1 Laser Product.
SD/HD-SDI over Fiber
Output
2 Channel
ST Fiber Input
+ 5-20VDC
Power
HDMI Connector
Unbalanced
Analog
Audio
(RCA Jacks)
Input
Lock LED
CLASS 1
LASER
PRODUCT
