AJA Hi5-Fiber User Manual
Page 3
1
3
AJA Hi5-Fiber HD-SDI/SDI over Fiber to HDMI Video and Audio Converter
Introduction
The Hi5-Fiber converts SDI or HD-SDI over single mode 1310 nm fiber optic
cable (ST-style connection) to HDMI for driving HDMI monitors. Embedded 8
channel SDI/HD-SDI audio is supported in the HDMI output allowing a
convenient single cable audio/video connection. The Hi5-Fiber provides 2
Channel RCA style audio outputs for separate audio monitoring if needed.
Features
•
SDI/HD-SDI over Fiber to HDMI
•
Full HDMI support including 10-bit video and 8 channels of embedded
audio
•
Supports single mode 1310 nm fiber optic cable with ST receiver
•
Additional 2 Channel RCA jack audio output (channels 1 and 2)
•
HDMI cable supplied
•
Uses +5 to 20VDC power (supply sold separately)
•
No configuration necessary
•
5 year warranty

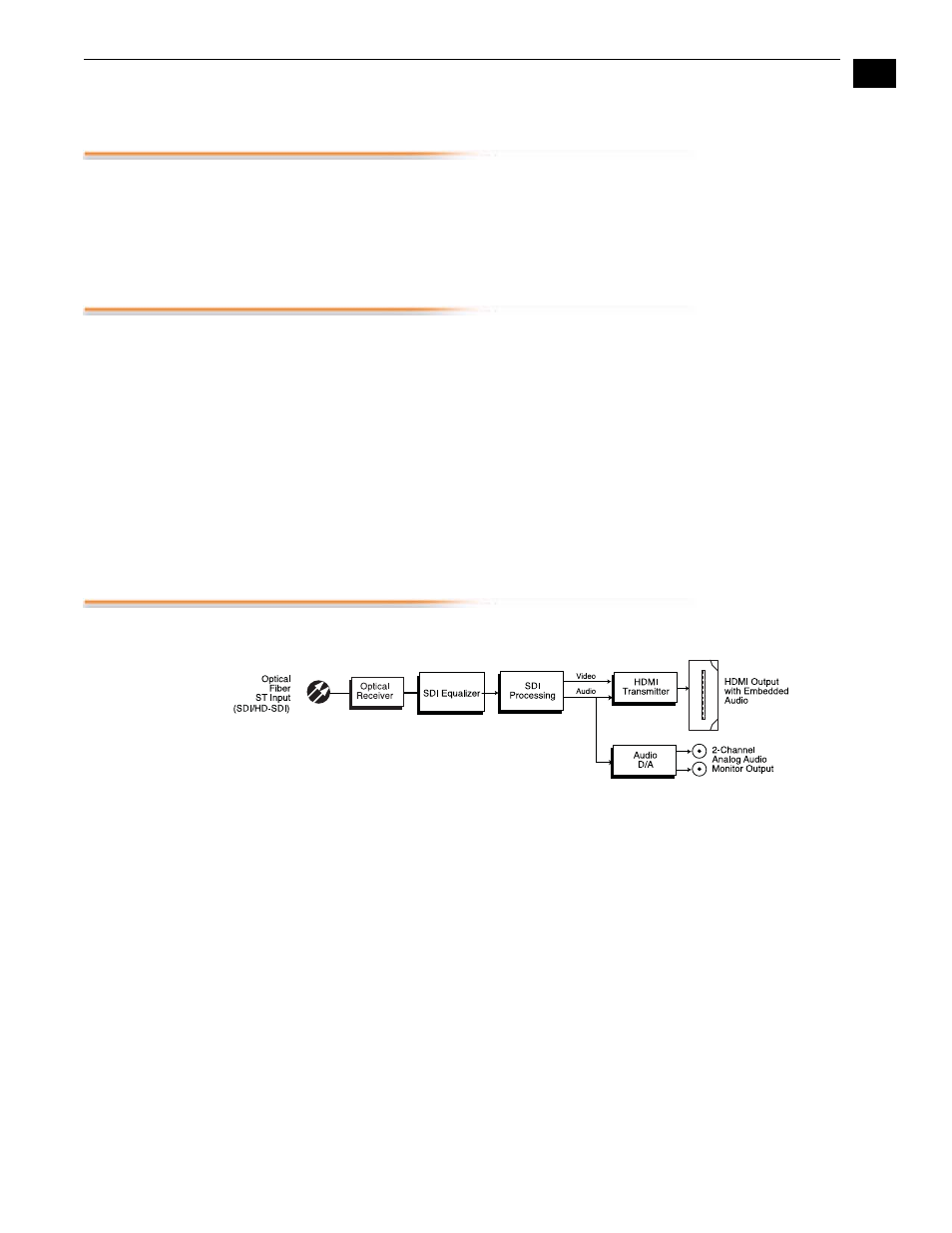

Block Diagram
Hi5-Fiber Converter, Simplified Block Diagram
