BOULDERLINK
Boulderlink is a means of interconnecting most Boulder products
so that their microprocessors can talk to each other and pass important
information. Among the key features, Boulderlink allows sequential
initiation of power amplifiers and other products when the 865
Integrated Amplifier is turned on. Power amplifiers can send messages
to the 865 which are then shown on its display.
CONNECTING BOULDERLINK
Turn off all products that are to be linked before connecting any
Boulderlink cables and setting Boulderlink ID and Master/Slave
switches.
Boulderlink cables in various lengths are available as an accessory
from your Boulder dealer. Two connectors are provided on the back of
the 865 and other Boulderlink enabled products.
All the chassis are connected together in a daisy chain manner. Start
by connecting one chassis to another—then from that chassis to the next
until all are connected. The order does not matter.
A special interface may be obtained to enable Boulderlink to be used
with other control systems. Contact your Boulder dealer for details.
BOULDER
LINK
5-1

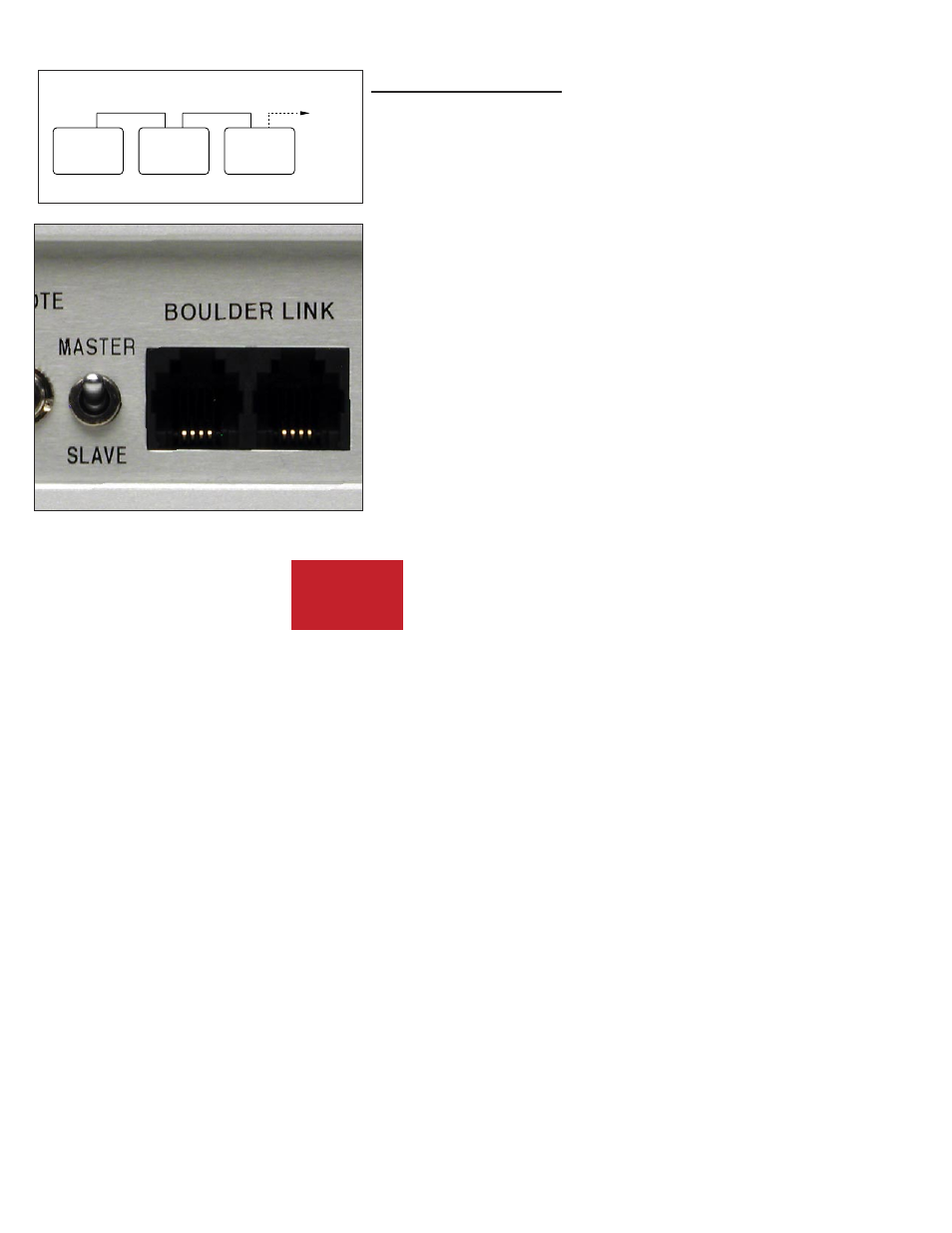

BOULDERLINK "DAISY CHAIN"
TO ALL
OTHER
SLAVE
UNITS
BOULDER
PRE-
AMPLIFIER
BOULDER
POWER
AMPLIFIER
BOULDER
POWER
AMPLIFIER
MASTER SLAVE SLAVE
