8

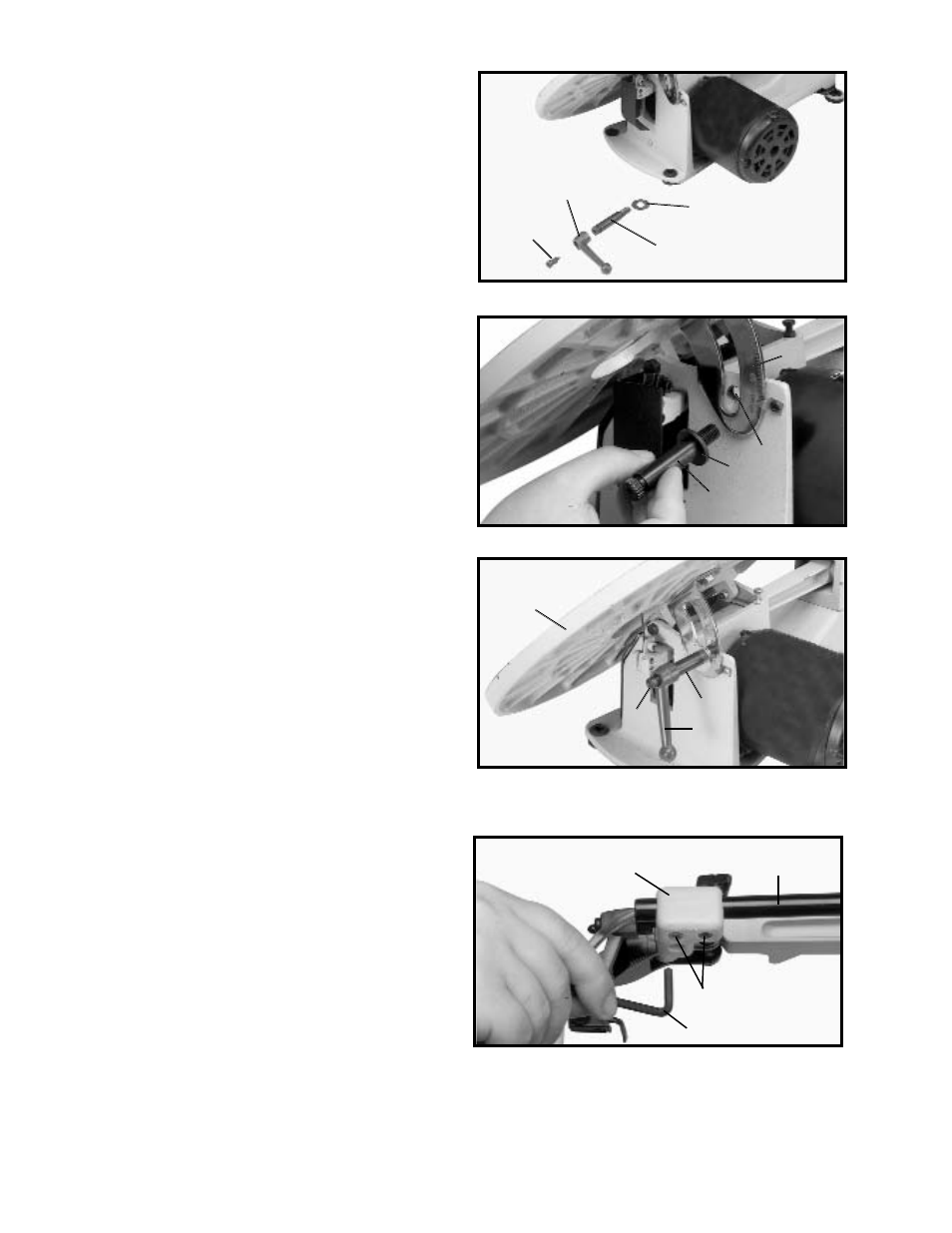

6. Disassemble the handle by unscrewing and
re mov ing screw and spring (F), and handle (G) from
locking stud (H), as shown in Fig. 8. Place a M10 flat
washer (J) on threaded end of stud (H).
7. Screw threaded end of stud (H) Fig. 9, with the M10
flat washer (J) through slot in angle of tilt scale (D) and
into tapped hole (K).
8. Place handle (G) Fig. 10, onto locking stud (H) and
fasten with screw and spring (F). Move table (A) to the
horizontal position and lock table (A), by turning handle
(G) clockwise.
9. Using the 4mm wrench (L) Fig. 11, loosen the two
screws (P) on bottom of bracket (M) that fasten bracket
to rod (N).
Fig. 9
Fig. 10
G
F
H
A
Fig. 11
J
H
D
K
N
M
P
L
Fig. 8
F
G
H
J
