14

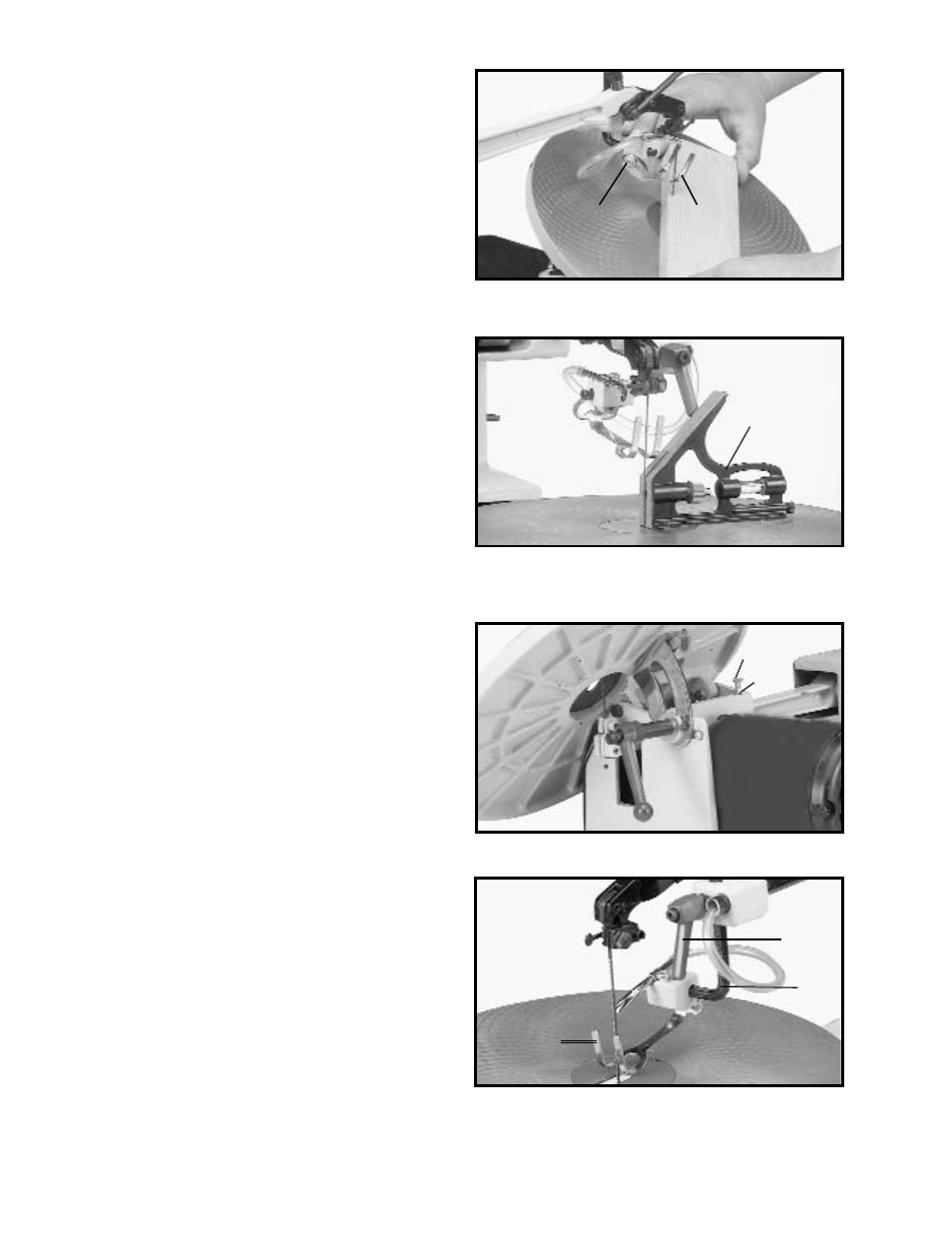

Fig. 31
When bevel cutting, the holddown (B) Fig. 31, can be
adjusted to lay flat on the stock by loosening screw (C)
and tilting the holddown (B) accordingly. Then tighten
screw (C).
ADJUSTING THE TABLE
Fig. 32
Fig. 33
1. Loosen the table locking handle, and move the
table all the way to the right.
2. Using a square (A) Fig. 32, check to see if the table
is 90 degrees to the saw blade, as shown.
3. If the table is not at 90 degrees to the blade, adjust
the table accordingly making certain screw (B) Fig. 33,
contacts bottom of table surface when table is 90
degrees to the blade. Screw (B) can be adjusted by
loosening nut (C), thread screw (B) in or out the desired
distance and tighten nut (C).
A
B
C
ADJUSTING HOLDDOWN
The holddown (A) Fig. 34, should be adjusted so it
contacts the top surface of the work being cut by
loosening lock handle (B) and moving holddown rod (C)
up or down. Then tighten lock handle (B).
Fig. 34
A
B
C
C B
