Page 12
Ref
Qty
Description
1
1
Lift Assist Spring
2
7
Hair pin
3
1
Flat Washer
4
1
Lift Arm
5
1
Stand Off
6
1
Lock Washer
7
1
Bolt
8
1
Hitch Assembly
9
1
Bell Crank
10
2
Mounting Pin
11
1
Hitch Pivot Assembly
12
3
Bolt
13
2
Whiz Lock Nut
Ref
Qty
Description
14
1
Snow Blade Assembly
15
1
Spring
16
1
Eye Bolt
17
1
Lower Control Arm
18
2
Bolt
19
2
Flange Nut
20
1
Upper Control Arm
21
1
Control Arm Support Bracket
22
2
Eye bolt lock nut
23
2
Spacer
24
2
Washer
25
1
Flange Nut

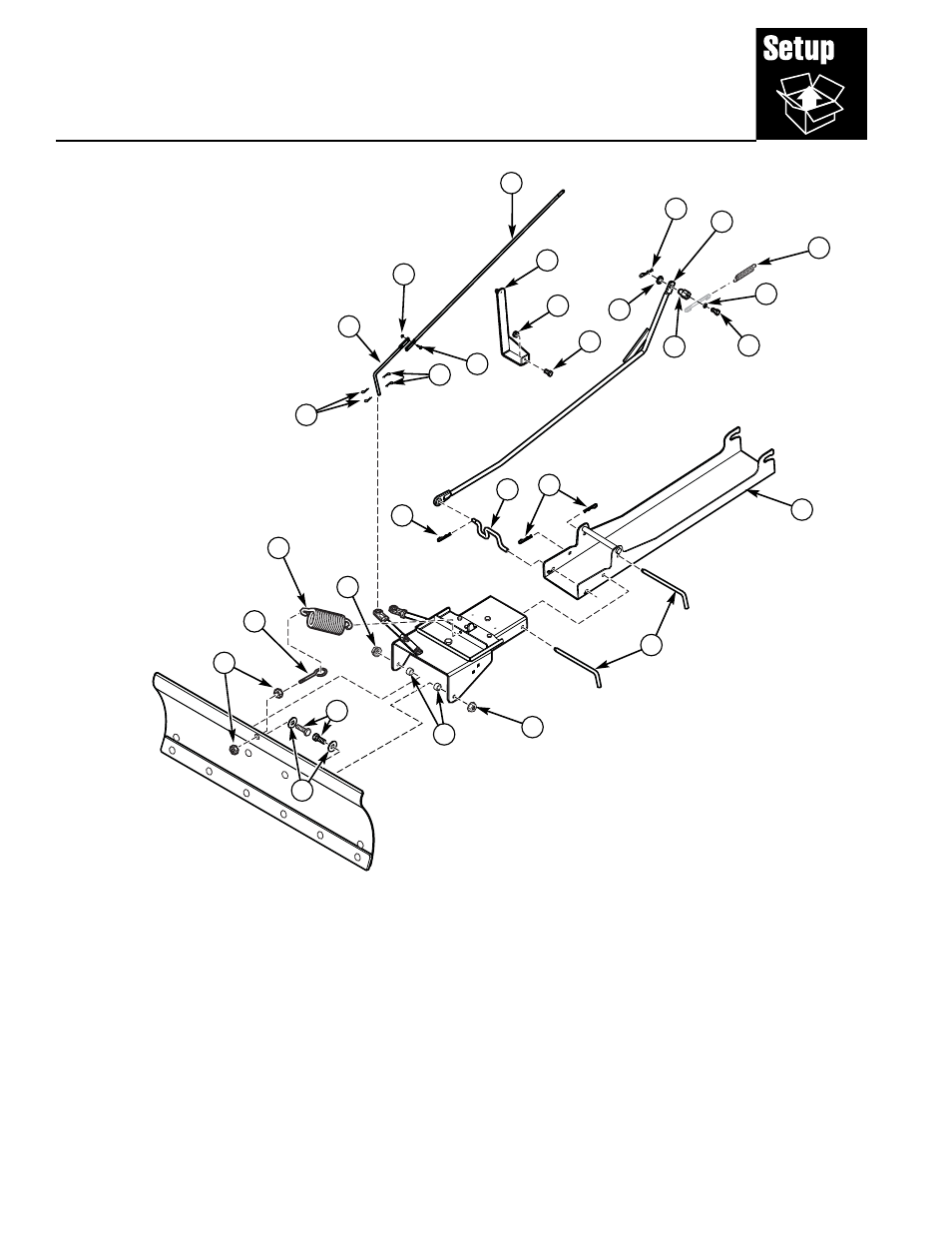

Figure 5. Initial Setup
10
Initial Setup
& Assembly
1
2
3
4
5
6
7
21
25
12
20
19
18
2
2
17
8
2
10
9
2
23
13
13
12
24
15
16
22
