INSTALLATION
Disassemble Housing
1. Remove the washers and retaining rings (D, Figure
2) from both ends of the auger shaft. Remove the
bearings (C).
2. Remove the hardware securing both side covers (A),
and remove the side covers.
1
Installation
Instructions
Gear Case Kit
Part No. 1687227 & 1687228
For 2004 Simplicity 860EI Intermediate Snowthrowers
1694433, 1694434

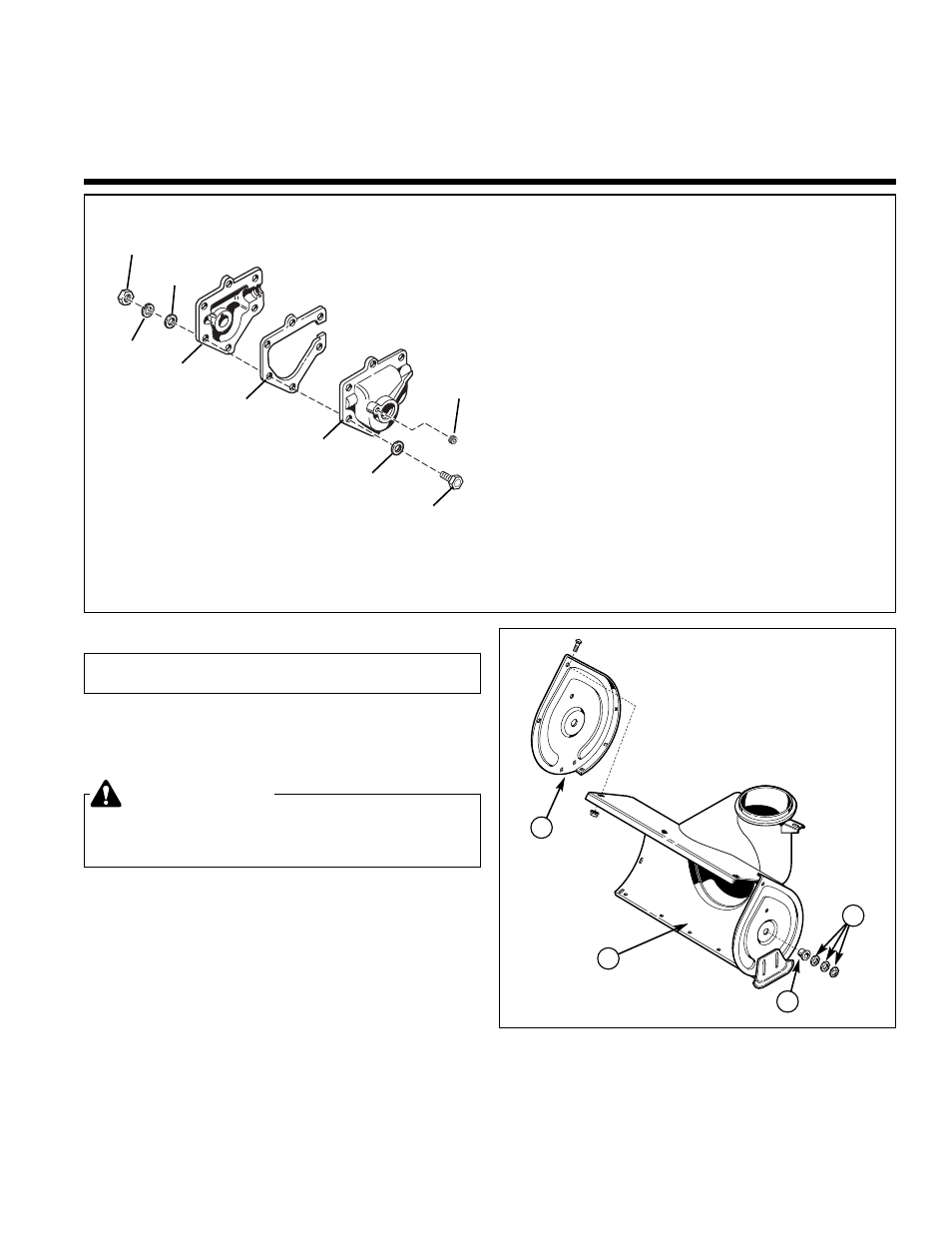

Figure 1. Contents
Kit Contents:
Ref Part No. Qty. Description
1 1721684 1 GEAR CASE, RH
2 7090052 6 WASHER, 1/4” SPLIT LOCK
3 7092129 12 WASHER, FLAT, .268 x .591
4 7091576 6 NUT, HEX, 1/4-20
5 7092125 6 SCREW, HEX, 1/4-20 x 7/8
6 1721676 1 GASKET, GEAR CASE
7 1721685 1 GEAR CASE, LH
8 960625 1 FITTING - PIPE PLUG
This kit is to service intermediate snowthrowers.
5
Figure 2. Disassemble Housing
A. Side Cover
B. Housing
C. Bearing
D. Washers & Retaining Ring
A
B
C
D
WARNING
Before beginning any service work turn off the
ignition, and disconnect the spark plug wire(s).
4
3
7
2
1
6
8
3
