SERVICE (cont.)

CONTROL BOARD

Location:

The Control Board is located inside the top cover

behind the front end cap.

Test Procedures:

The test procedures for the control board will vary

depending upon the problems experienced by the
brewer. Refer to the Troubleshooting guide beginning
on page 10. The troubleshooting guide is divided into
three sections, Refill Circuit, Heating Circuit, and Brew-
ing Circuit.

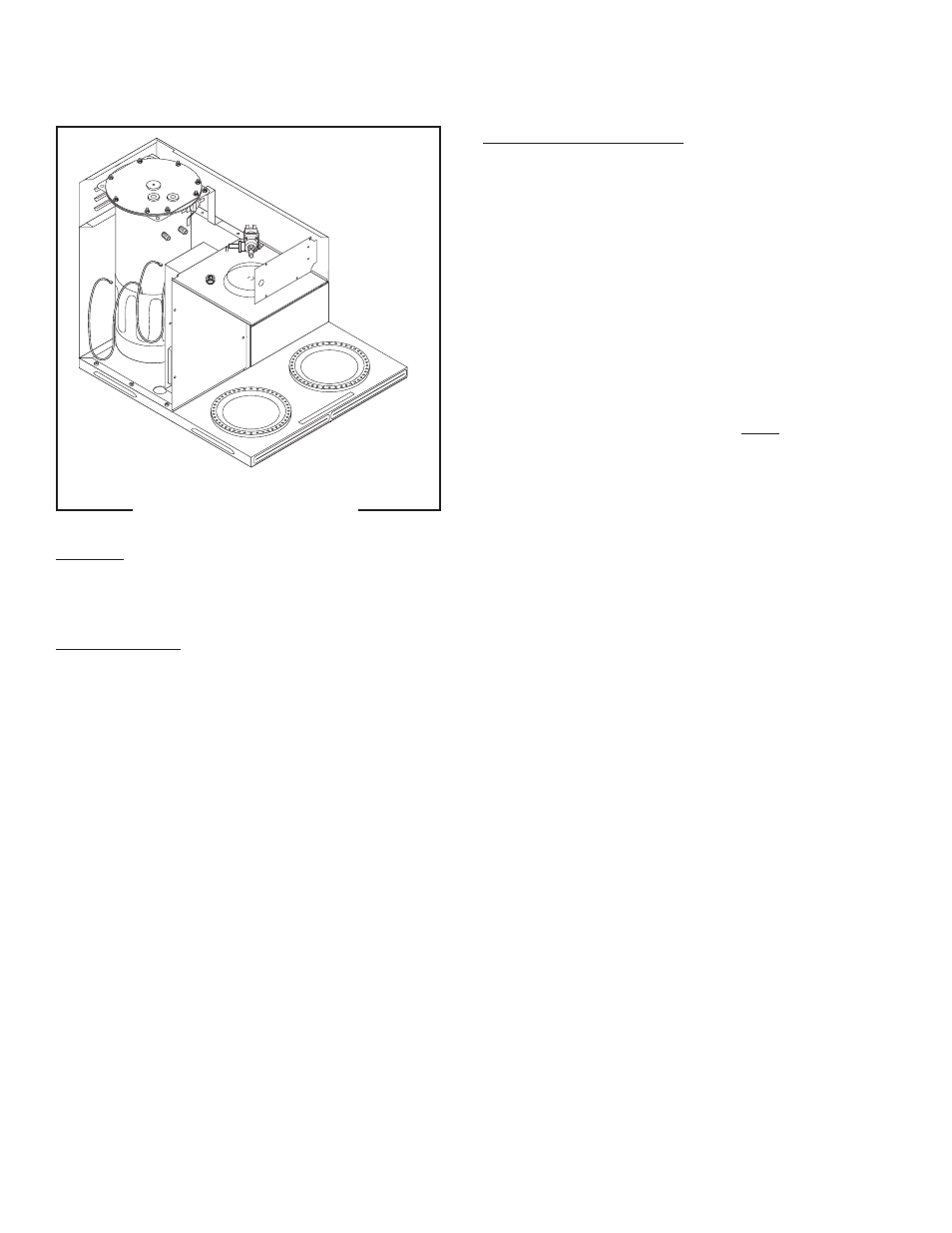

P1846

FIG. 2 CONTROL BOARD

Removal and Replacement:
1. Disconnect the black wire and blue wire from the

relay on the control board.

2. Disconnect the 10-pin connector and the 4-pin

connector from the main wiring harness.

3. Disconnect the 11-pin connector from the control

panel.

4. Remove the four #6 screws and four nylon wash-

ers and the two #4-40 screws securing the control
board to the end cap assembly.

5. Install a new control board and secure with the

four #6 screws and nylon washers and the two #4-
40 screws to the end cap assembly.
NOTE: The four nylon washers must be installed
under the heads of the four #6 screws to prevent
a possible shorting of the control board circuits.

6. Connect the 11-pin connector from the control

panel.

7. Connect the 10-pin connector and the 4-pin con-

nector from the main wiring harness.

8. Connect the blue wire and black wire to the relay on

the control board.

9. Refer to Adjustments and Optional Settings (See

page 9) to program the new control board.

29707.1 082803

CA

UTION :

W

ARM

ER

S A

ND SUR

FAC

ES A

RE HOT
