SERVICING INSTRUCTIONS
CAUTION
Electric Shock
Hazard
Opening access panels on this
brew may expose uninsulated
electrical components.
Disconnect brewer from
electrical power before
removing any panel.
ACCESS PANELS
TOP PANEL:
Remove top panel to access hot water tank, thermostat, timer,
brew solenoid and brew circuit tubing.
Top panel is held by two screws at the rear and a retaining lip at
the front .
REAR PANEL:
Remove rear panel to access wiring and bypass nozzle tubing.
Rear panel is held by eight screws on the perimeter.

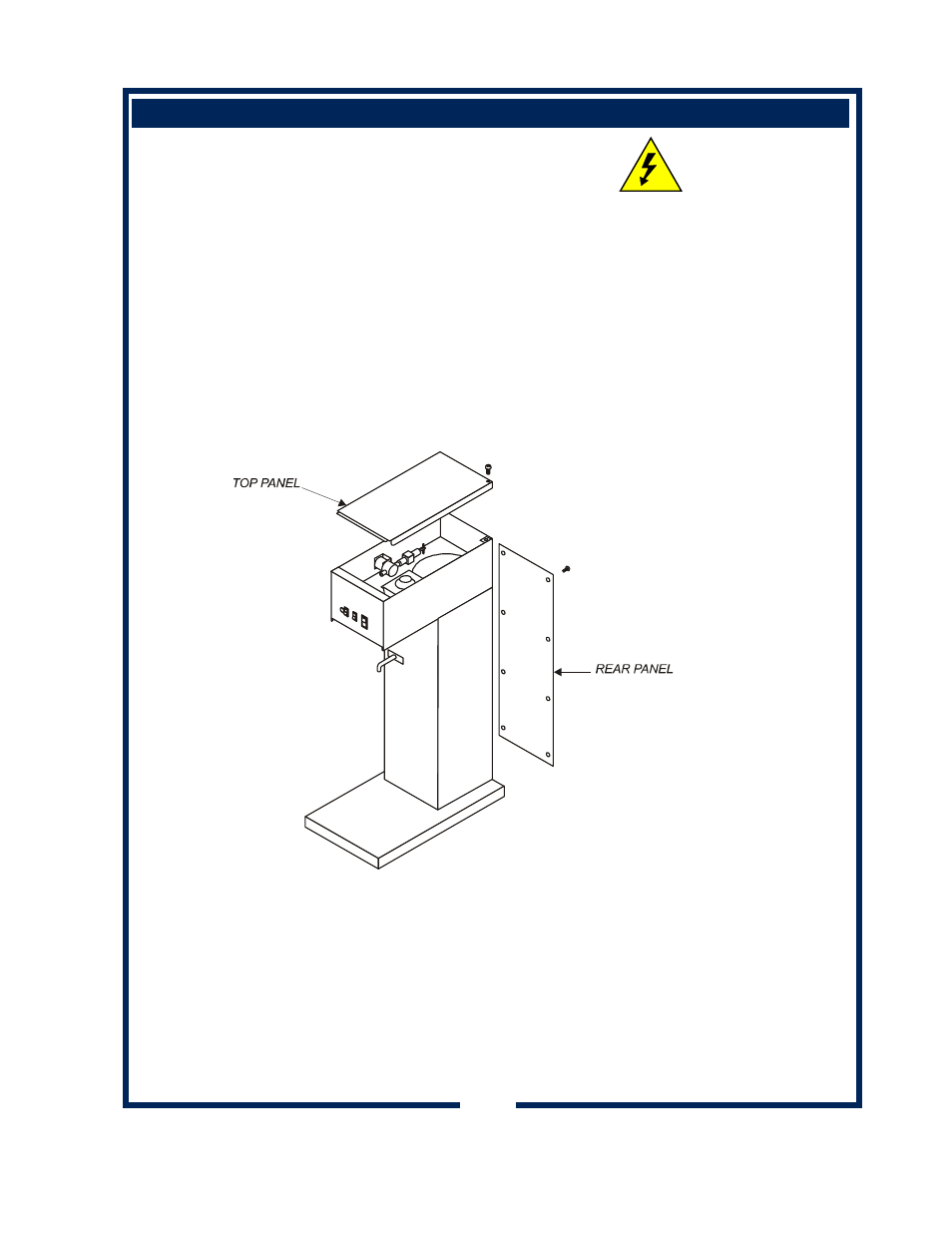

Fig. 8 Access Panels
