7
Bag Installation and Tube Assembly
INSTALL COLLECTOR BAGS
1. Raise the cover (A, Figure 5).
2. Attach collector bags (B) using grass bag hanger (C)
to bag hanger post (D).
A
D

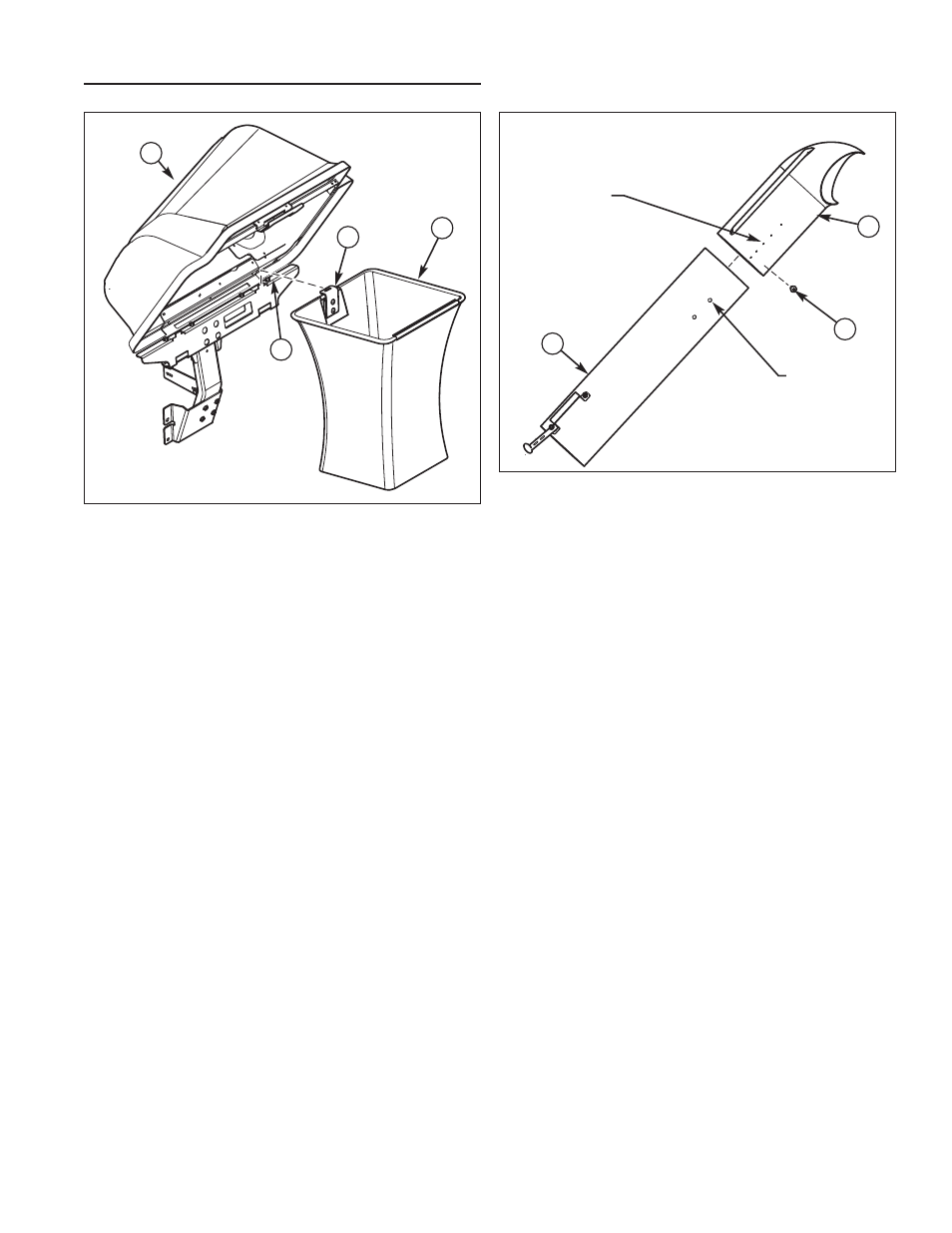

Figure 5. Install Collector Bags
A. Cover
B. Collector Bags
C. Grass Bag Hanger
D. Bag Hanger Post
B
C
B
A
42” Mowers
42” Mowers
CONNECTING UPPER AND MIDDLE TUBE
1. Slide the upper tube (A, Figure 6) over middle tube
(B) and secure together using screw (C).
In upper tube:
- Third hole from end is for 42” mowers
See Figure 6 for hole locations.
C
Figure 6. Middle and Upper Tube Assembly
A. Upper Tube
B. Middle Tube
C. Screw, 1/4 x 3/4
