6
Bag Support and Cover Installation

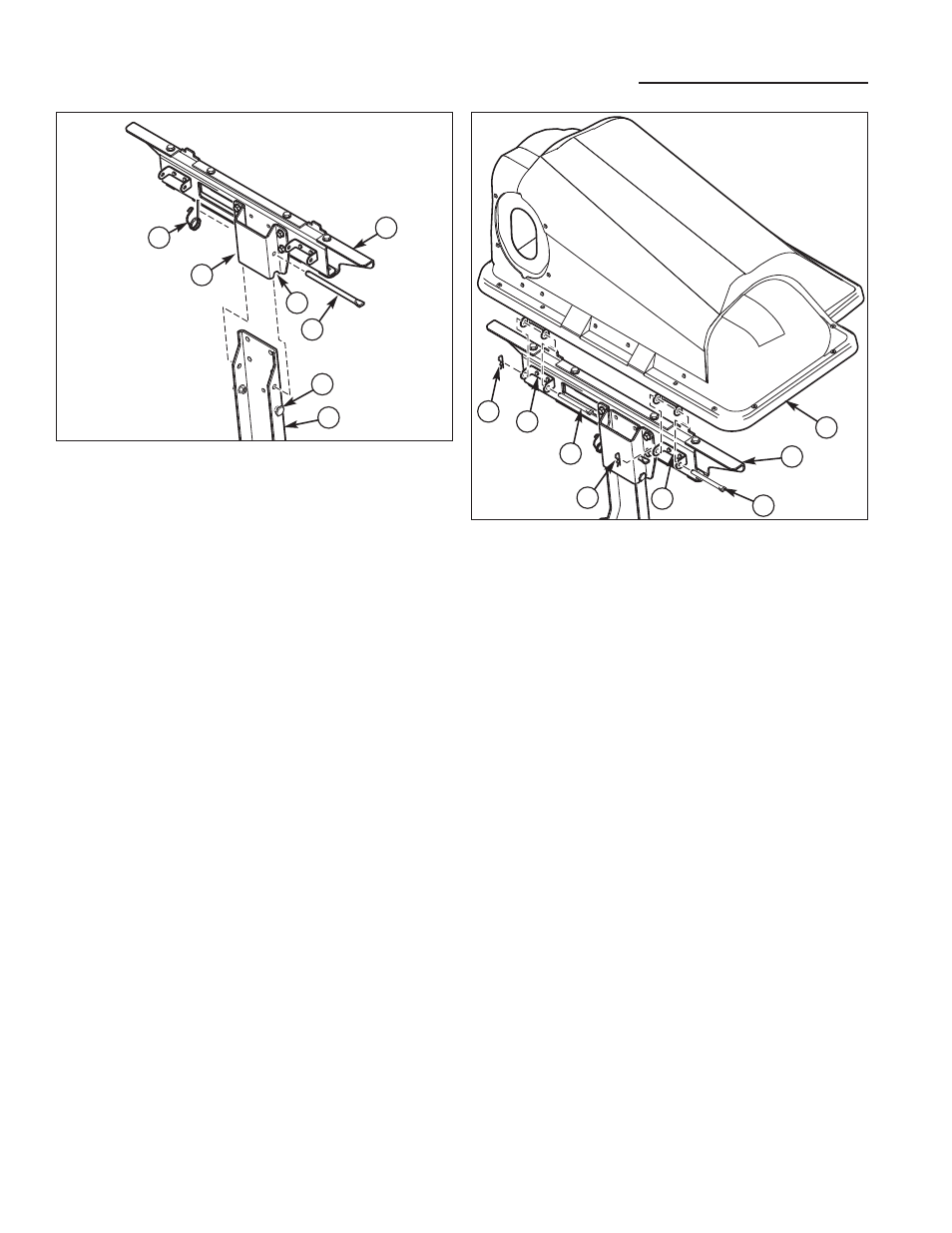

Figure 3. Install Bag and Cover Support
A. Upright Support
B. Bag and Cover Support
C. Support Mount
D. Mount Pin
E. Retainer Spring
F. Shoulder Rest
G. Shoulder Bolt
E
A
G
B
F
D
C
C
Bag Support Installation
1. Attach the bag and cover support (B, Figure 3) to the
upright support (A) by sliding the support mount (C)
over the upright support (A) until the shoulder rest (F)
makes full contact with the shoulder bolts (G).
2. Insert mount pin (D) through the support mount (C)
and upright support (A) as shown.
3. Secure mount pin (D) with retainer spring (E).
Figure 4. Cover Installation
A. Cover Assembly
B. Bag Support Bracket
C. Cover Hinge Pivots
D. Hinge Pins
E. Retainer Springs
INSTALL COVER
1. Attach cover assembly (A, Figure 4) to bag support
bracket (B) using cover hinge pivots (C). Secure
cover assembly to bag support bracket using hinge
pins (D) and retainer springs (E) as shown.
C
D
D
E
E
B
A
