Hitch Installation
HITCH INSTALLATION
Hitch Installation
1. Remove 5/16-16 nut (G, Figure 2) from seat deck
support capscrew (E).
2. Remove 3/8-16 nut (F) from rear debris guard
capscrew (D).
3. Remove 1/2-13 nut (H) from rear of frame (A).
4. Remove 3/8-16 nut (I) from rear transmission
support (J).
5. Attach hitch assembly (B) to frame (A) sliding rear of
hitch flush with frame.
6. Finger tighten 3/8-16 nut (F), 5/16-16 nut (G), 1/2-13
nut (H) and 3/8-16 nut (I).
7. Tighten 3/8-16 nut (F) and 5/16-16 nut (G) first, then
1/2-13 nut (H) and 3/8-16 nut (I).
I
F
G
E
C
B
H
B
A
A
J
Left View Back View

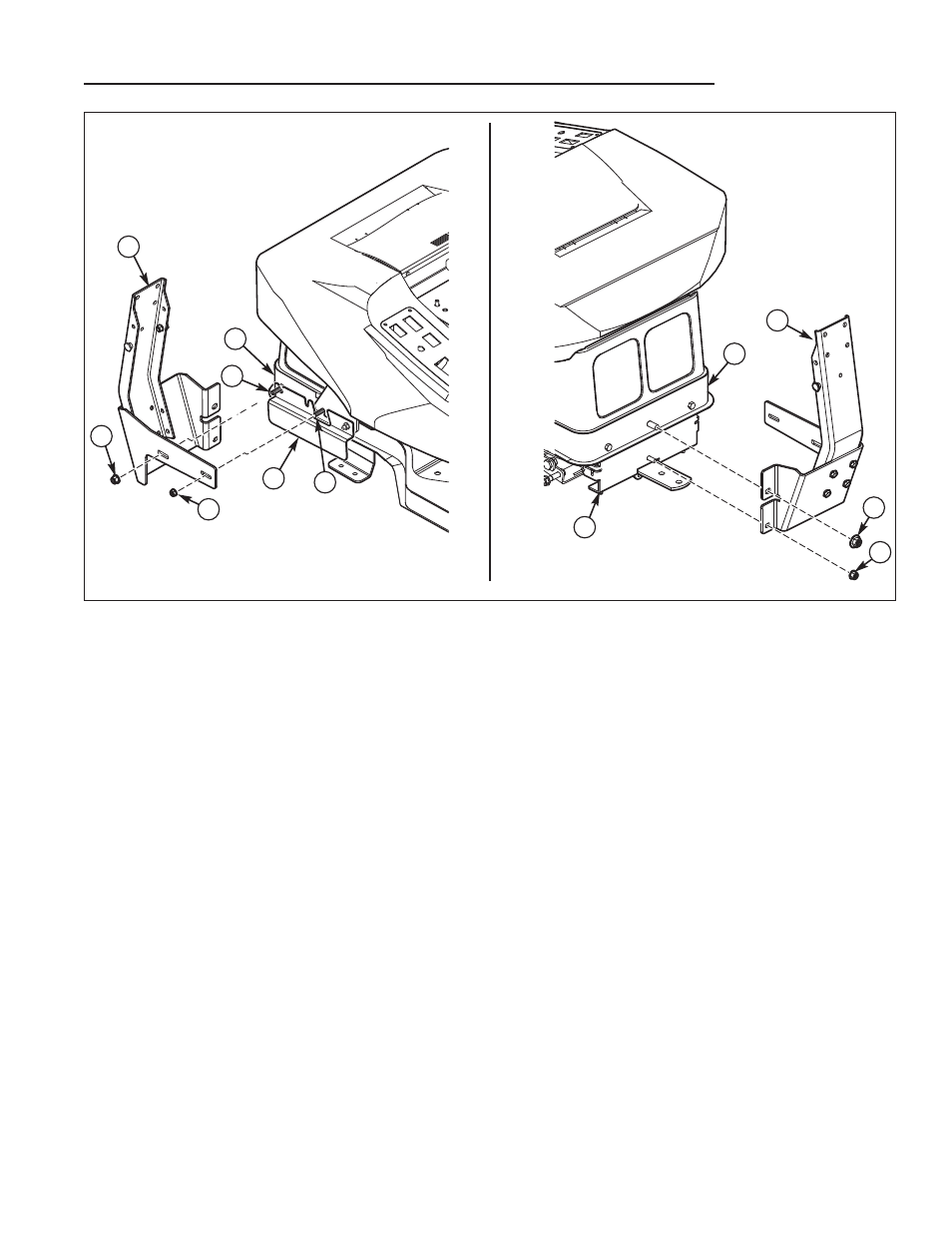

Figure 2. Install Hitch Assembly
A. Frame
B. Hitch Assembly
C. Debris Guard
D. Capscrew, Debris Guard, 3/8-16
E. Capscrew, Seat Deck Support, 5/16-18
F. Nut, Nylock, Flanged 3/8-16
G. Nut, Nylock, Flanged 5/16-16
H. Nut, 1/2-13
I.
Nut, 3/8-16
J. Rear Transmission Support
D
