OPERATION
O
PERATING
F
EATURES
Note: Components featured in the following instructions for operating or maintaining the product
are underlined on their first appearance in each section.

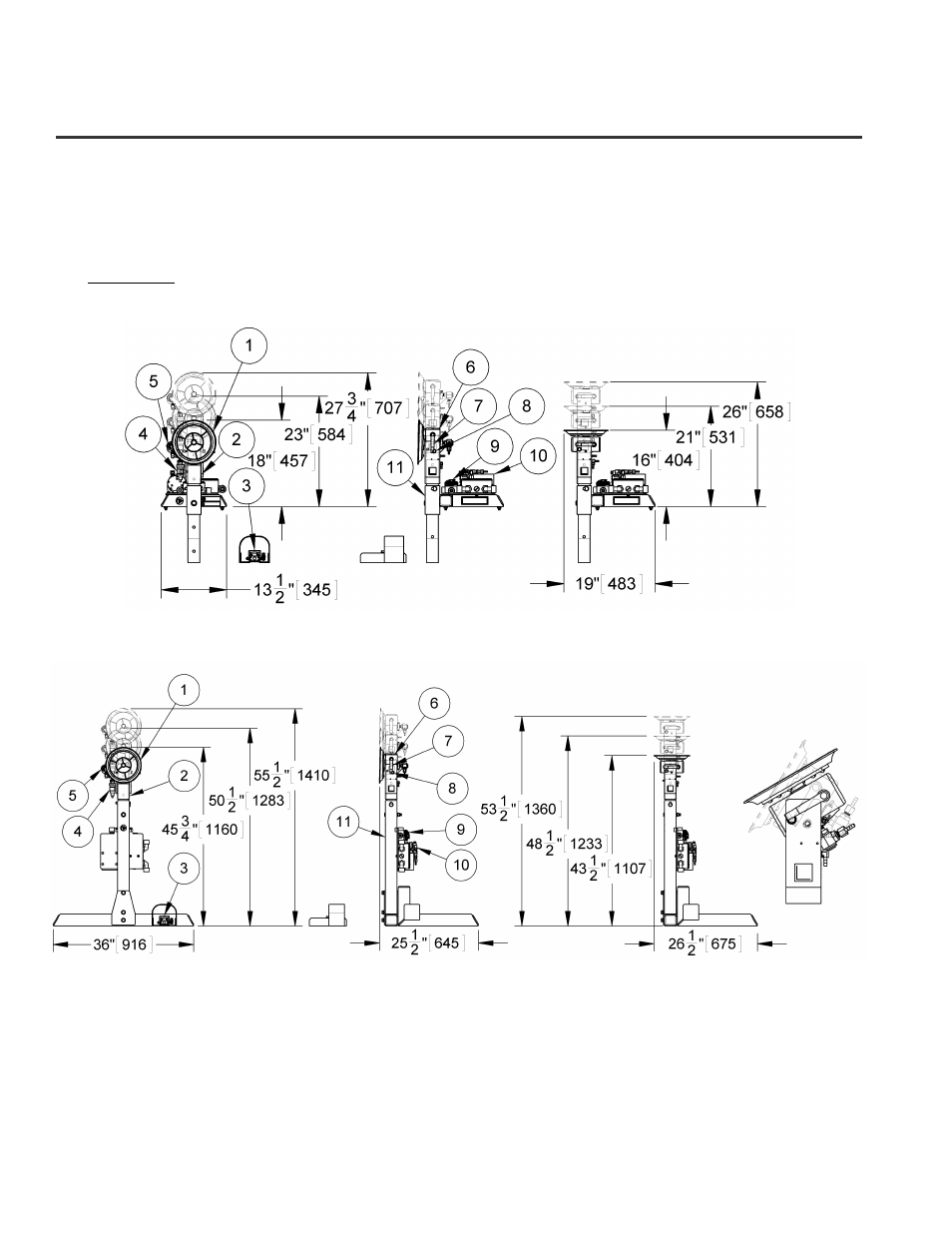

Standard POSB1P9AC shown.
Standard POSF1P9AC shown.
1 VACUUM PAD
5 VACUUM GAUGE
9 POWER SWITCH
2 EXTENSION TUBE
6 TILT/ROTATION HEAD
10 VACUUM PUMP
3 VACUUM RELEASE PEDAL
7 ROTATION TENSION LEVER
11 BENCH-/FLOOR-MOUNT BASE
4 AIR FILTER
8 HEAD ADJUSTMENT BOLT
