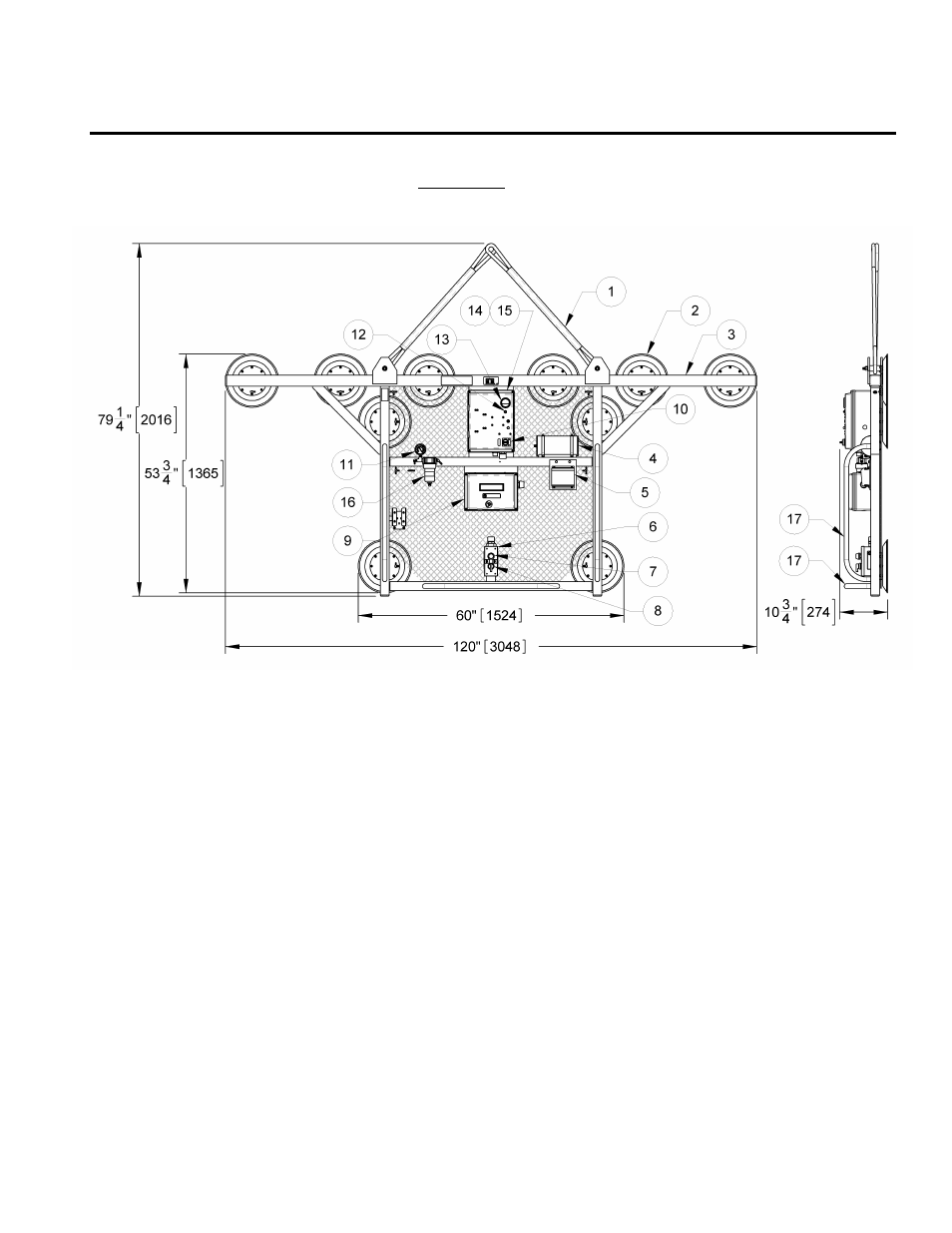

OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.
Standard VLGG1011LDC shown.
1 LIFT SLING
9 BATTERY ENCLOSURE
2 VACUUM PAD
10 POWER SWITCH
3 PAD FRAME
11 VACUUM GAUGE
4 VACUUM RESERVE TANK
12 BATTERY TEST BUTTON
5 BATTERY CHARGER
13 BATTERY GAUGE
6 MOVABLE CONTROL PENDANT
14 Enclosure with VACUUM PUMP(S)
7 VACUUM LIFT LIGHT
15 Enclosure with VACUUM SWITCH
8 APPLY/RELEASE SWITCH
16 AIR FILTER
17 CONTROL HANDLES
