Rev 19.0/1-13 3 MT-HV11FDCO: #35093
OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.

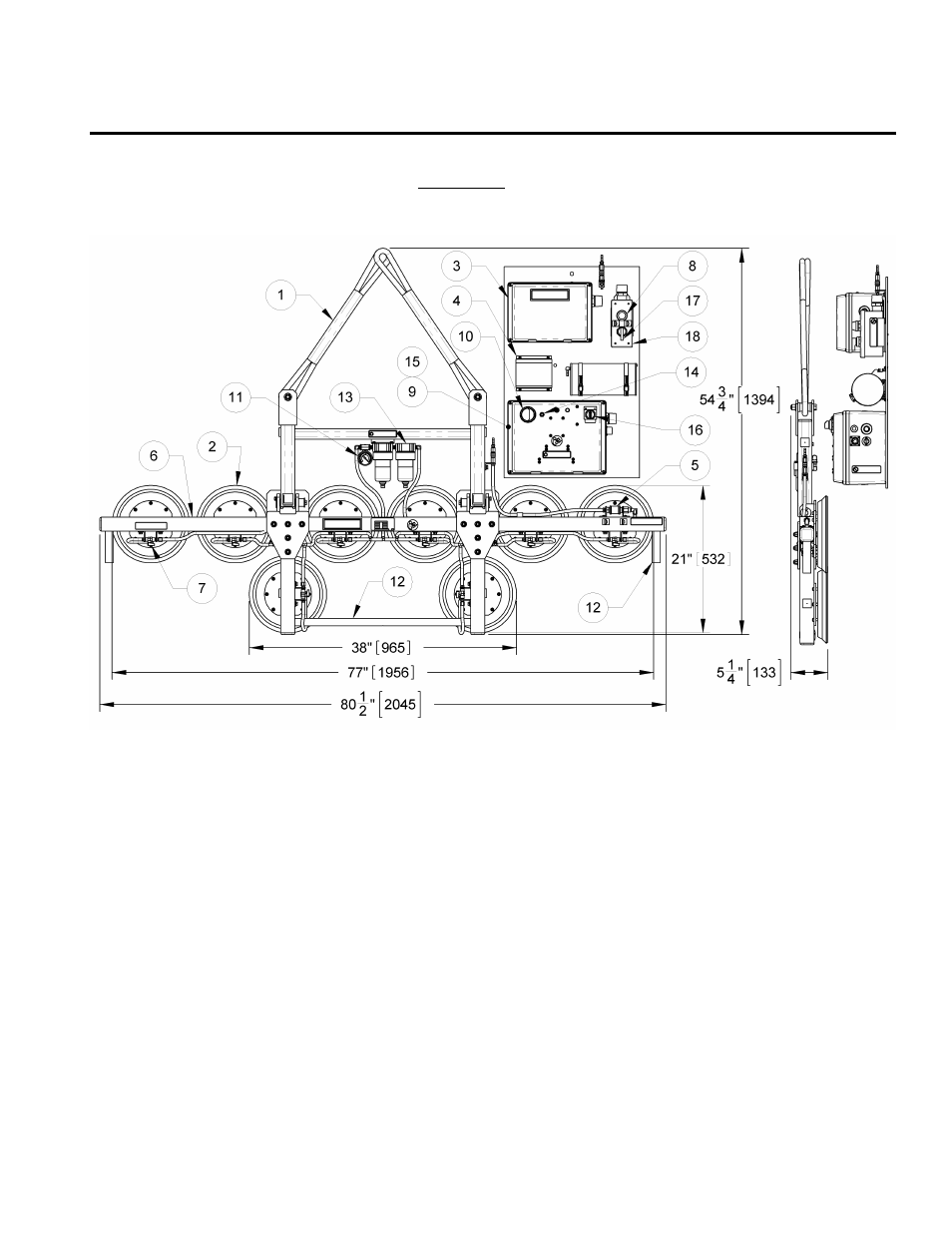

Note: Illustration shows MT8HV11FDC with independent 3-SCFM vacuum package.
Items 3 and 4 do not apply to the optional vacuum package purchased.
1 LIFT SLING 10 BATTERY GAUGE
2 VACUUM PAD 11 VACUUM GAUGE
3 (BATTERY ENCLOSURE – N/A) 12 CONTROL HANDLES
4 (BATTERY CHARGER – N/A) 13 AIR FILTERS
5 PAD FRAME CONTROL VALVE 14 BATTERY TEST BUTTON
6 PAD FRAME 15 Enclosure with VACUUM SWITCH
7 PAD SHUTOFF 16 POWER SWITCH
8 VACUUM LIFT LIGHT 17 APPLY/RELEASE SWITCH
9 Enclosure with VACUUM PUMP(S) 18 MOVABLE CONTROL PENDANT
