4) Attach the vacuum package
securely to the forklift or hoisting
equipment in a protected location
where the vacuum package will
move with the lifter. Note that the
low vacuum warning light must
remain visible to the lifter operator
at all times (see OPERATION: T
O
L
IFT AND
M
OVE THE
L
OAD
: Monitoring

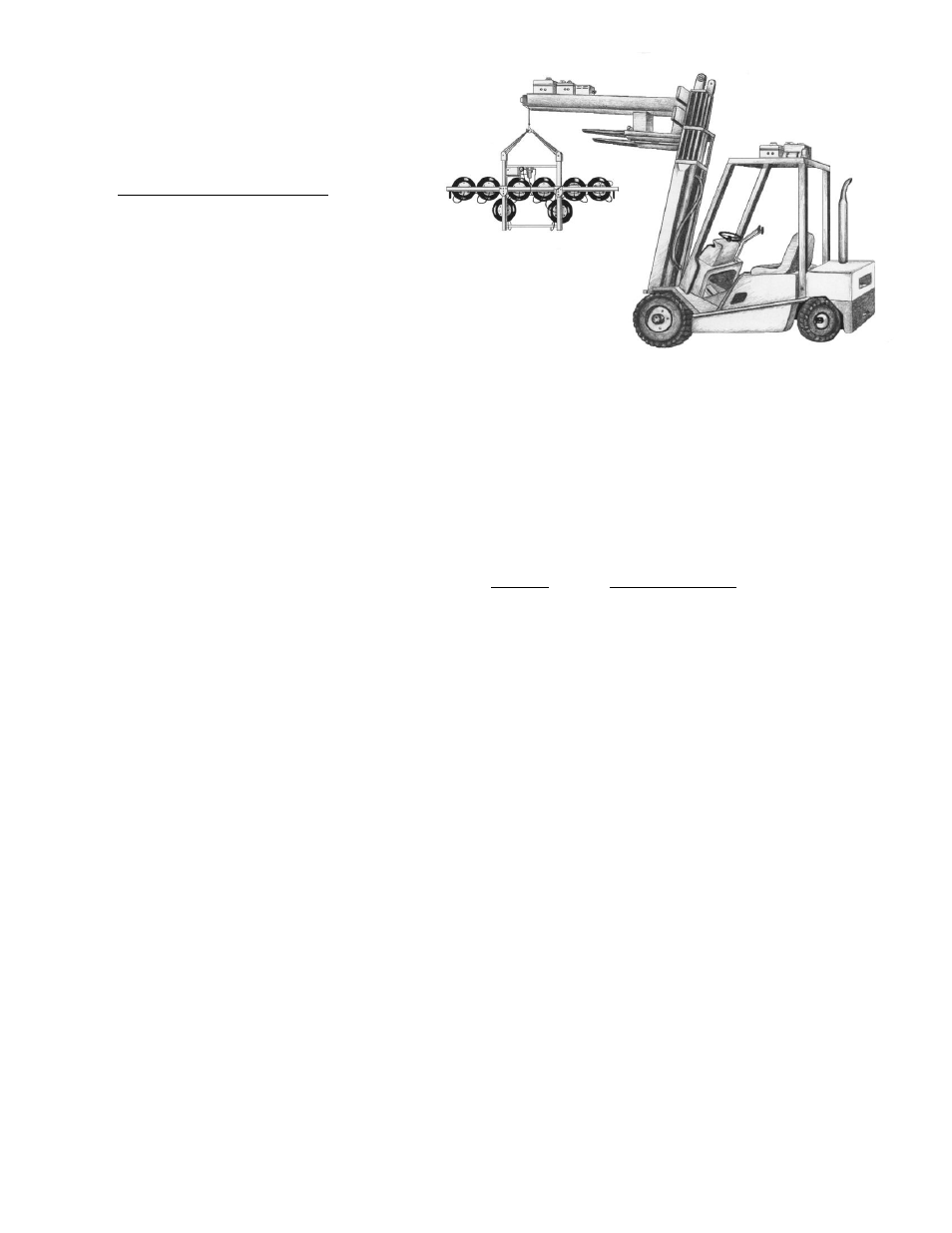

Vacuum Indicators). The
illustration represents two
potential mounting locations.
However, hoisting equipment
design and applicable statutory or
regulatory standards must be factored into any specific installation. Consult the hoisting
equipment manufacturer to determine how to mount the vacuum package in a safe location
that will not interfere with hoisting equipment operation.
5) Connect the vacuum line from the lifter to the vacuum package: Make certain the vacuum
line is routed so that it does not become tangled, kinked, pinched or cut while operating the
lifter or hoisting equipment. Then connect the line by pushing the male and female ends of
the quick connectors together until they lock.
6) Connect the electrical connectors uniting the battery to the battery charger and the vacuum
generating system. Now the lifter is operational.
7) Perform Operational and Load Tests for the lifter as directed in MAINTENANCE: T
ESTING
S
CHEDULE
.
location 1 -->
<-- location 2
