OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.

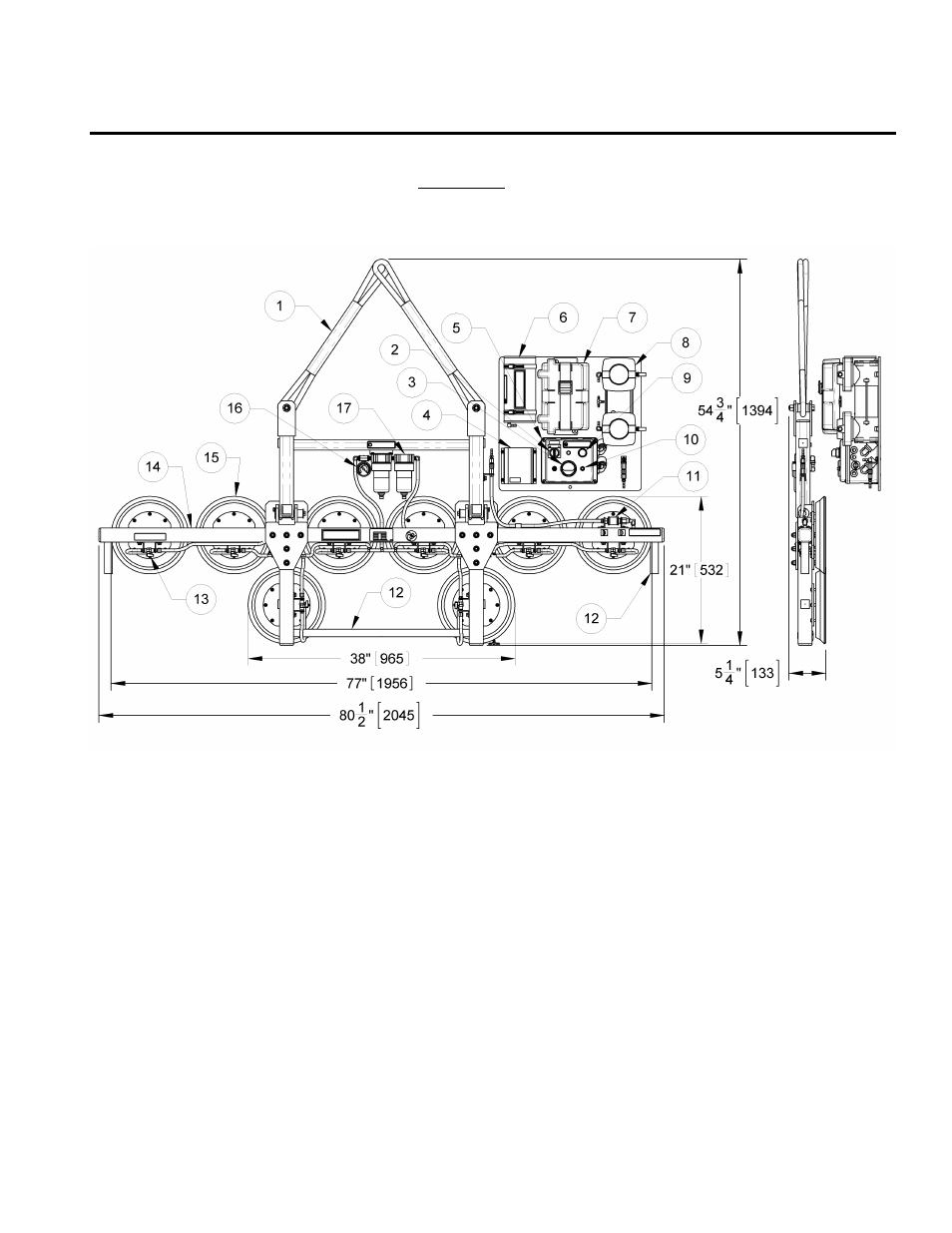

Standard MT8HV11FDC shown with optional 3-SCFM vacuum package.
1 LIFT SLING 10 BATTERY TEST BUTTON
2 POWER SWITCH 11 VACUUM CONTROL VALVE
3 BATTERY GAUGE 12 CONTROL HANDLES
4 BATTERY CHARGER 13 PAD SHUTOFF
5 Enclosure with VACUUM SWITCH 14 PAD FRAME
6 VACUUM RESERVE TANK 15 VACUUM PAD
7 BATTERY BOX 16 VACUUM GAUGE
8 VACUUM PUMP(S) 17 AIR FILTERS
9 LOW VACUUM WARNING LIGHT
