Operating features – Wood’s Powr-Grip P211047DC User Manual
Page 5
Rev 12.0/12-12
3
P2-04-DCO: #35114:

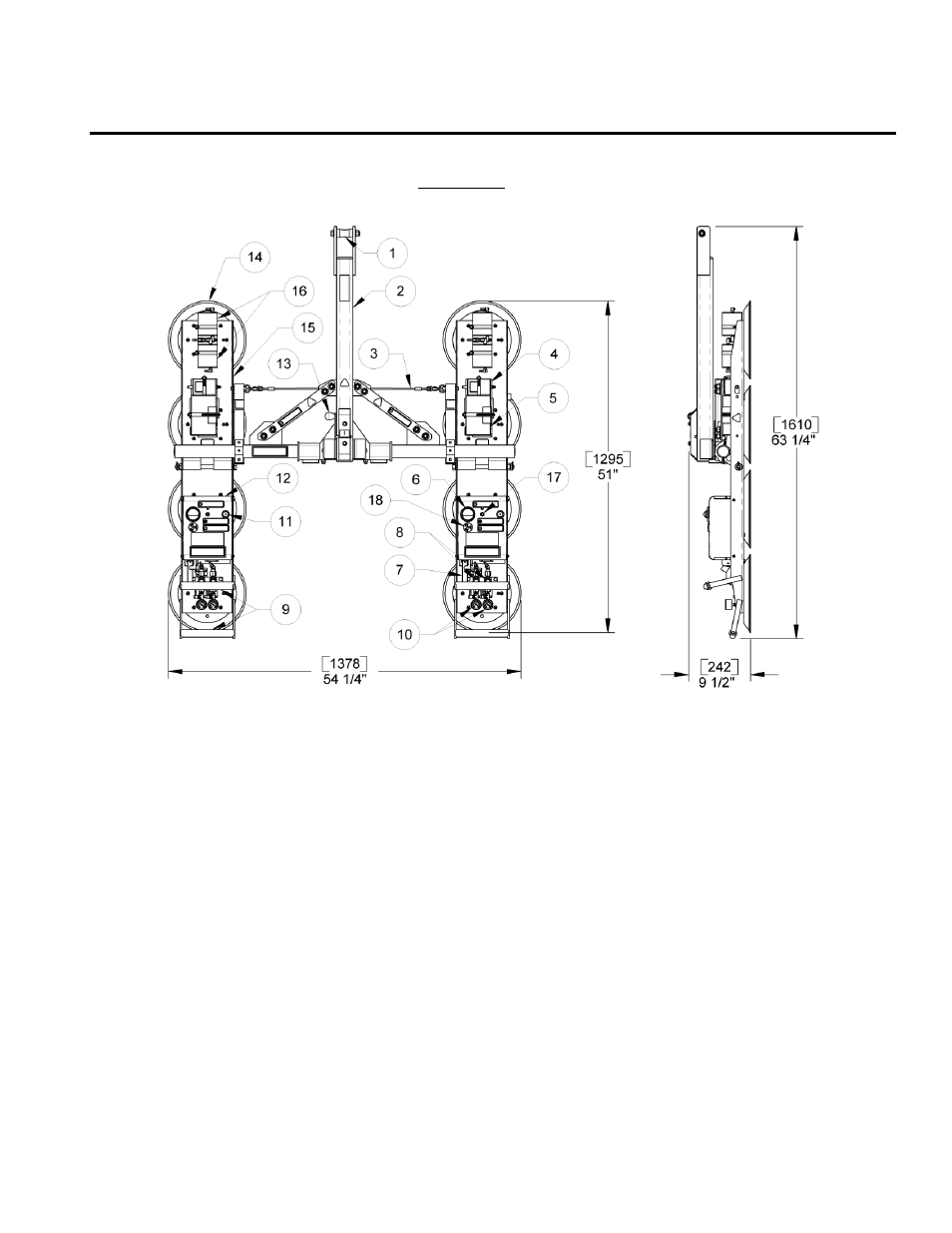

OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.
Standard P2110445DC shown with Dual Vacuum System option.
1 LIFT SPOOL
7 VALVE HANDLE
13 ROTATION RELEASE LEVER
2 LIFT FRAME
8 AIR FILTERS
14 VACUUM PAD
3 TILT RELEASE CABLE
9 CONTROL HANDLES
15 PAD CHANNEL
4 BATTERY CHARGER
10 VACUUM GAUGES
16 VACUUM RESERVE TANKS
5 BATTERY
11 LOW VACUUM WARNING LIGHT
17 BATTERY TEST BUTTON
6 BATTERY GAUGE
12 Enclosure with VACUUM PUMP
18 LOW VACUUM WARNING BUZZER
and VACUUM SWITCHES
