FEATURES AND FUNCTIONS – 4
Features and Functions

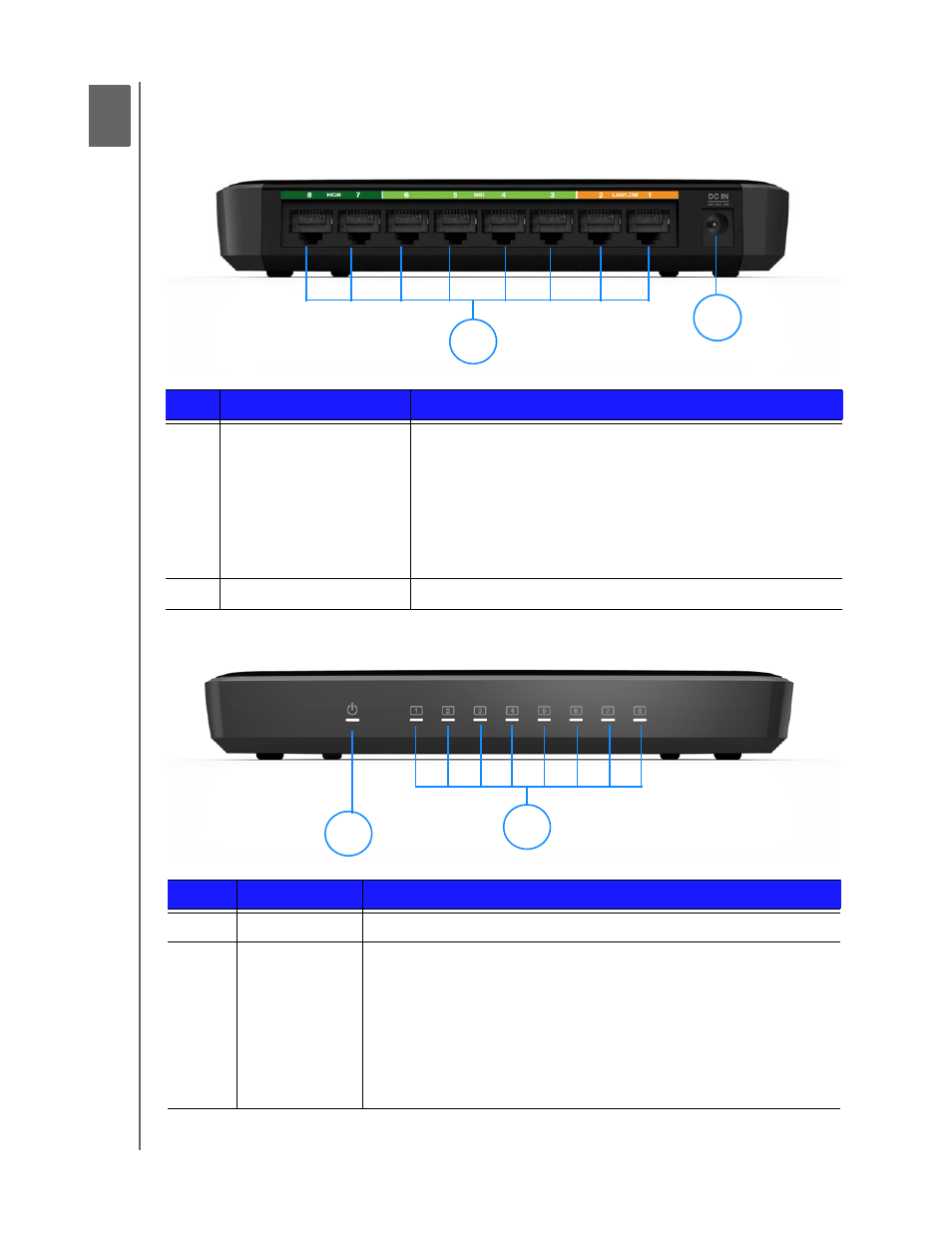

Connections
LED Indicators
Item Component Description
1 Ethernet ports (1-8) Supports connection of network-connectable devices.
Choose a port based on the quality of service (QoS) priority
you want assigned to your device. Examples:
„ HIGH (dark green) – VoIP, online gaming
„ MID (light green) – video streaming, music, data
„ LAN/LOW (orange) – Web surfing, email,
router/LAN connection
2 Power jack Connects the power cable
Item Component Description
1 Power LED Indicates that the device is powered on (illuminated blue).
2 Ethernet ports Indicates that the device is connected to the corresponding port
number.
„ Solid green – link at 1000 Mbps
„ Blinking green – activity for 1000 Mbps
„ Solid amber – link at 10/100 Mbps
„ Blinking amber – activity at 10/100 Mbps
„ Lights off – No connection or link on LAN port
