Q-Gun
™
Part Number

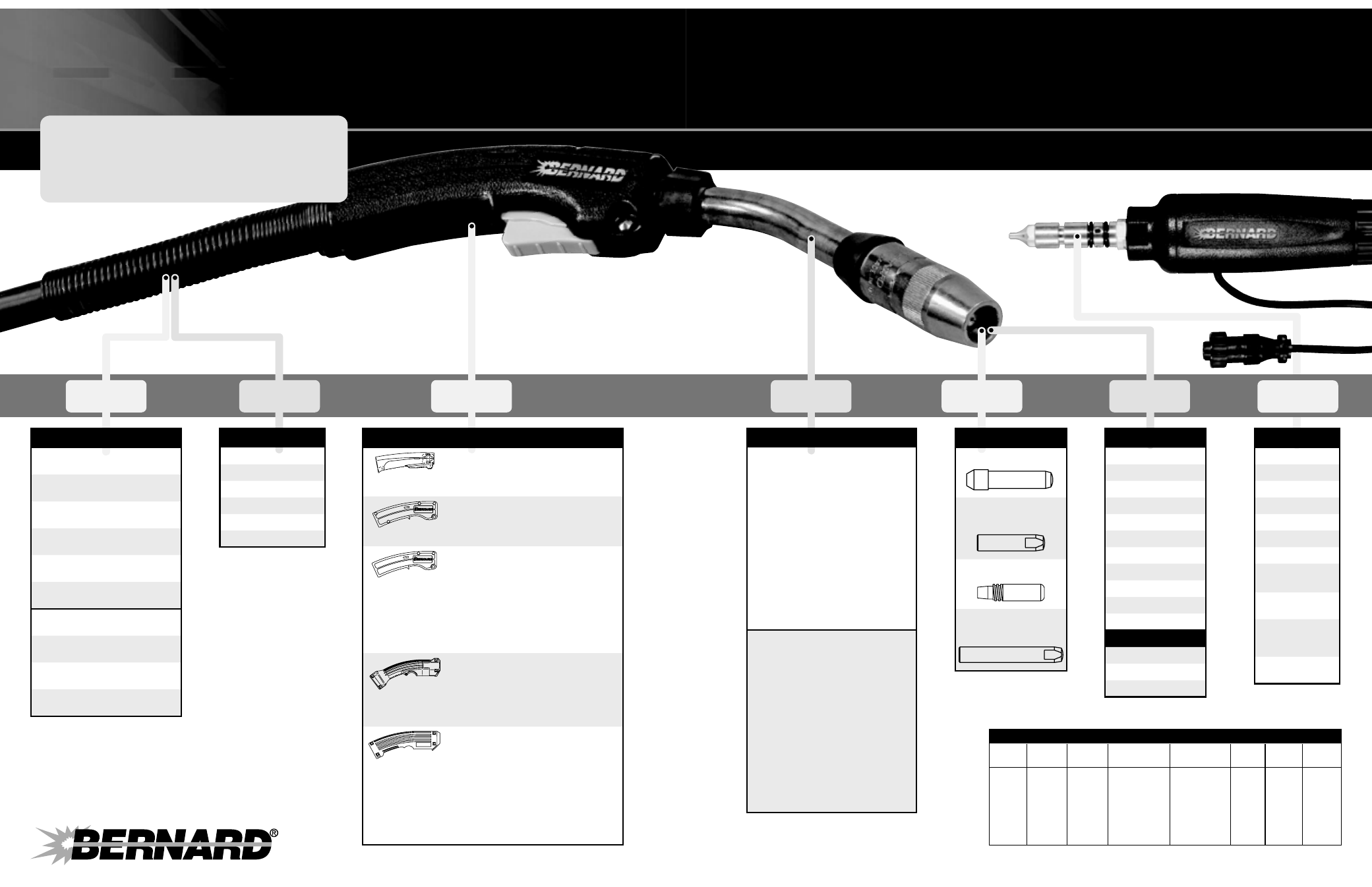

The part number shown here, Q4015AE8EM , is an example of a typical
configuration. It consists of a 400-amp Q-Gun ™ with a 15' cable, curved
handle, standard trigger, rotatable medium 45° neck, Centerfire
™
0.045"
contact tip and a Miller-style direct plug.
Choose Your Weapon.
Time to
Q40 15 A E E 8 M
Amp and Cable Type
Q15 150 amp
max. wire size: .045" (1.2 mm)
Q20 200 amp
max. wire size 1/16" (1.6 mm)
Q30 300 amp
max. wire size: 5/64" (2.0 mm)
Q40 400 amp
max. wire size: 5/64" (2.0 mm)
Q50 500 amp
max. wire size: 3/32" (2.4 mm)
Q60 600 amp
max. wire size: 1/8" (3.2 mm)
S30 300 amp Steel "Monocoil"
max. wire size: 5/64" (2.0mm)
S40 400 amp Steel "Monocoil"
max. wire size: 5/64" (2.0mm)
S50 500 amp Steel "Monocoil"
max. wire size: 3/32" (2.4 mm)
S60 600 amp Steel "Monocoil"
max. wire size: 1/8" (3.2 mm)
Combine Steel Monocoil cable with OXO style
handle and QuikTip for gun similar to former
OXO APX gun.
Cable Length
08 8 ft (2.44 m)
10 10 ft (3.05 m)
12 12 ft (3.66 m)
15 15 ft (4.57 m)
20 20 ft (6.16 m)
25 25 ft (7.63 m)
Neck
A Rotatable, Short 30° QT2-30
B Rotatable, Short 45° QT2-45
C Rotatable, Short 60° QT2-60
J Rotatable, Short 80° QT2-80
D Rotatable, Medium 30° QT3-30
E Rotatable, Medium 45° QT3-45
F Rotatable, Medium 60° QT3-60
K Rotatable, Medium 80° QT3-80
G Rotatable, Long 30° QT5-30
H Rotatable, Long 45° QT5-45
I Rotatable, Long 60° QT5-60
N Fixed, Short 30° QT2-30
O Fixed, Short 45° QT2-45
P Fixed, Short 60° QT2-60
W Fixed, Short 80° QT2-80
Q Fixed, Medium 30° QT3-30
R Fixed, Medium 45° QT3-45
S Fixed, Medium 60° QT3-60
X Fixed, Medium 80° QT3-80
T Fixed, Long 30° QT5-30
U Fixed, Long 45° QT5-45
V Fixed, Long 60° QT5-60
Contact Tip
8 Centerfire
TM
7 Elliptical, 7400 series,
1.25" long, std.
5 QuikTip
TM
1 Elliptical, 1500 series,
2.00" long, HD
Wire Size
A .023" (0.6 mm)
B .030" (0.8 mm)
C .035" (0.9 mm)
D .039" (1.0 mm)
E .045" (1.2 mm)
H .052" (1.4 mm)
I 1/16" (1.6 mm)
K 5/64" (2.0 mm)
L 3/32" (2.4 mm)
M 7/64" (2.8 mm)
N 1/8" (3.2 mm)
Aluminum Wire Size
Q .035" (0.9 mm)
R 3/64" (1.19 mm)
S 1/16" (1.6 mm)
Direct Plug
B Bernard ®
E Euro ®
H Hobart ®
L Lincoln ®
M Miller ®
N National ®
O OXO ®
S Tweco ® 4
(Lincoln lead)
T Tweco ® 4
(std. lead)
U Tweco ® 4
(two prong
twist-lock lead)
W Tweco ® 5
(std. lead)
See back page for help
selecting direct plug.
Amp Centerfire TM Tips Elliptical Tips Quik Tips TM
Diffuser Nozzle
Diffuser
(7400 series tip)
Diffuser
(1500 series tip) Nozzle Diffuser Nozzle
150 amp DS-1 NS-1200B 4335-116 4235-116 4392 D118Q N1C58Q
200 amp DS-1 NS-1218B 4335-116 4235-116 4392 D118Q N1C58Q
300 amp DS-1 NS-5818C 4335-116 4235-116 4393 D118Q N1C58Q
400 amp D-1 N-5818C 4435 4635-116 4591 D118Q N1C58Q
500 amp D-1 N-5814C 4435 4635 4591HD D114Q N1C34HQ
600 amp D-1 N-3414C 4435 4635 4591HD D114Q N1C34HQ
Bernard Q-Guns and S-Guns are fitted at the factory with the diffusers and nozzles in the table above.
Typically selected necks by amperage:
150 - 200 amp QT2-45
300 - 400 amp QT3-45
500 -600 amp QT5-60
Handle and Trigger
150 Amp A Standard Trigger
Curved Handle
Standard Cable
200, 300 Amp A Standard Trigger
Curved Handle B Locking Trigger
Standard Cable C Dual Pull Trigger
400 Amp A Standard Trigger
Curved Handle B Locking Trigger
Standard Cable C Dual Pull Trigger
D Dual Schedule
Switch
E Dual Schedule
Switch w/ Lock
*150-400 Amp T Standard Trigger
OXO Style Small
Curved Handle U Locking Trigger
Standard or Steel
Monocoil
*400-600 Amp G Standard Trigger
OXO Style Large
Curved Handle H Locking Trigger
Standard or Steel
Monocoil
I Dual Pull Trigger
K Dual Schedule
Switch
L Dual Schedule
Switch w/ Lock
*Only OXO style handle options can be used with Steel Monocoil power cable.
