Vortex Optics RECON R/T 15X50 - WITH VMS MONOCULAR User Manual
Page 5

8
9
Stock Adapter
AR Spacer
Vertical grip installed on
bottom part of the long rail.

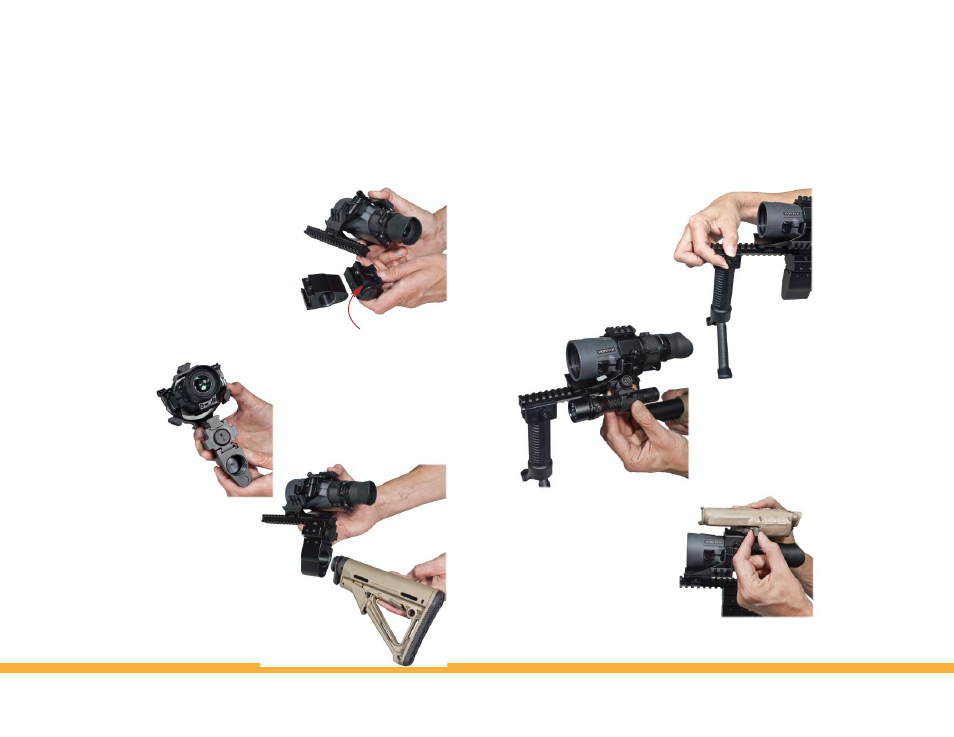

To use an AR15 stock, the stock adapter must be installed on
bottom rear of long rail.
If desired, the AR spacer
can be used between
rail and stock adapter
for a lower stock height
and additional mounting
locations for Picatinny
rails. AR spacer includes
small battery compartment.
AR15 Stock Adapter
Accessories using Picatinny rail clamps may be located in
several locations on the VMS
kit U-brackets depending on
user preference.
Other Accessories
Flashlight installed on left
side of the U-bracket.
Laser rangefinder installed on
top of the U-bracket.
Attach rail spacer to bottom of long
Picatinny rail and AR stock adapter
to bottom of rail spacer.
AR stock not included.
Thread the AR stock into
AR stock adapter.
Shown accessories, the vertical bipod grip,
tripod, and AR stock are not included.
