6

7

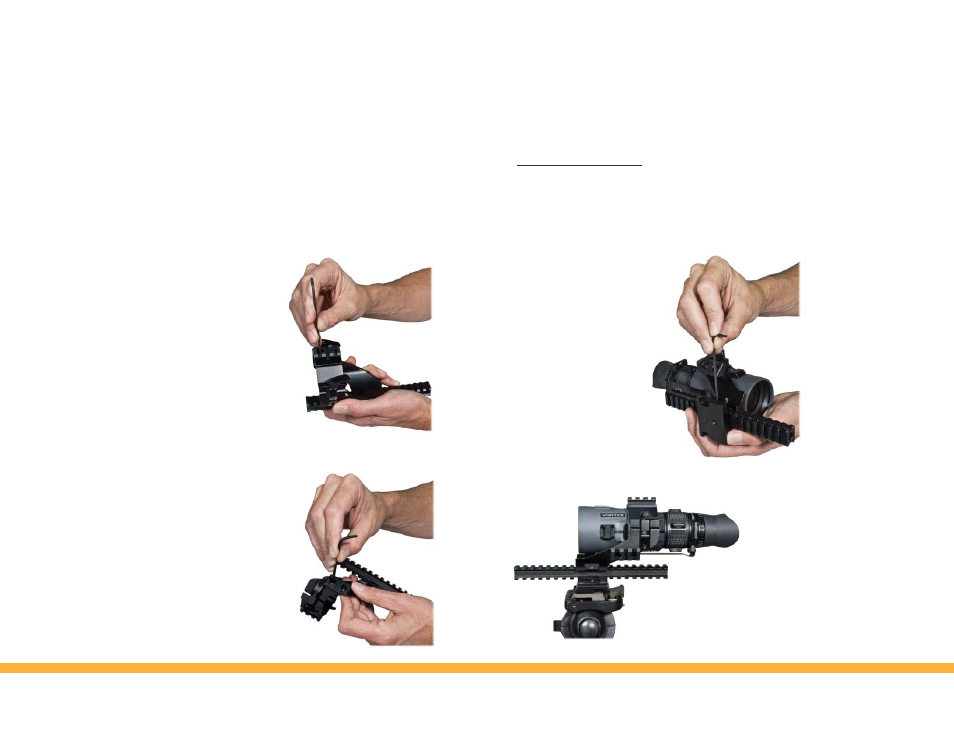

If desired, short accessory Picatinny rails may be installed
on sides and top of U brackets. Rails may also be installed
on sides of AR stock spacer using included screws.

Accessory Picatinny Rails

Installing rail on top of
U-bracket.

Installing rail on side
of U-bracket.

Generally, most users will want to stabilize the VMS kit
using popular aftermarket accessories such as vertical
AR15 style bipod grips, tripods or AR15 type riflestocks.
These may be used individually or in any combination
desired.

To use a tripod, the tripod
adapter plate must be
installed on bottom of
long rail. Adapter plate
will accept standard
tripod mounting screw.

Tripod Adapter Plate

Attaching Accessories

Recon R/T with VMS shown installed
on a quick-release style tripod.
