Vortex Optics RAZOR HD 16-48X65 SPOTTING SCOPE User Manual
Page 5
- 9 -
- 8 -
spotting scopes

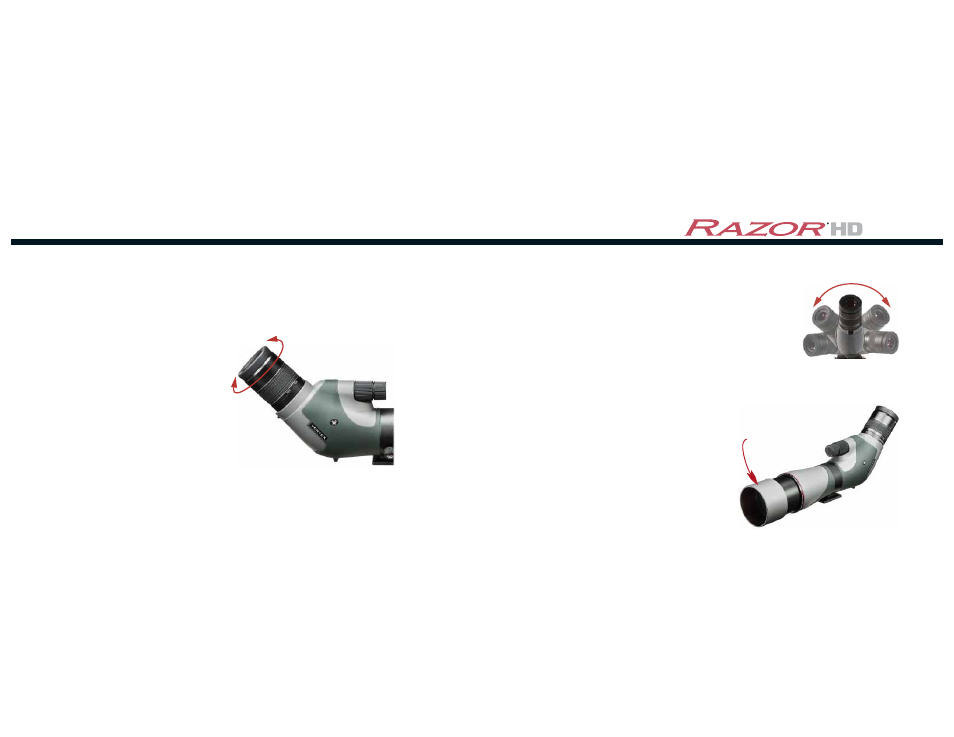

Adjust the magnification with a simple
turn of the adjustment ring. Twist the
eyecup down for viewing with eyeglasses
or sunglasses.
Adjust the eyecup
The adjustable eyecup on the 65 mm Razor HD spotting scope twists up and down so you
can observe the full field of view if you wear eyeglasses or sunglasses. Fully extend the
eyecup for best viewing without glasses.
Flexible viewing angle
The tripod mounting collar of the Razor allows you to rotate the
spotting scope body for greater viewing flexiblity.
• Turn the thumbscrew counter-clockwise to loosen the
mounting collar.
• Rotate the spotting scope body to a comfortable viewing angle.
• Keep the scope body in the preferred viewing position by securing the mounting collar
with a clockwise turn of the thumbscrew.
Extendable sunshade
Extend this fitted hood to effectively block out
disturbing stray light. The sunshade also shields
the objective lens from mechanical damage
and guards against soiling by fingerprints and
precipitation.
Sunshade shield is easily
extended or retracted.
