Vortex Optics CROSSFIRE II 1-4X24 RIFLESCOPE User Manual

Page 7

RIFLESCOPE

Indexing Adjustment Dials with Zero Reset

Crossfire II riflescopes feature windage/elevation dials that allow you to
re-index the zero indicator after sight-in without disturbing your settings.
Though not required to do, this process will allow you to quickly return to
your original zero if temporary corrections are dialed in the field. Reset the
windage and elevation dials in this way:

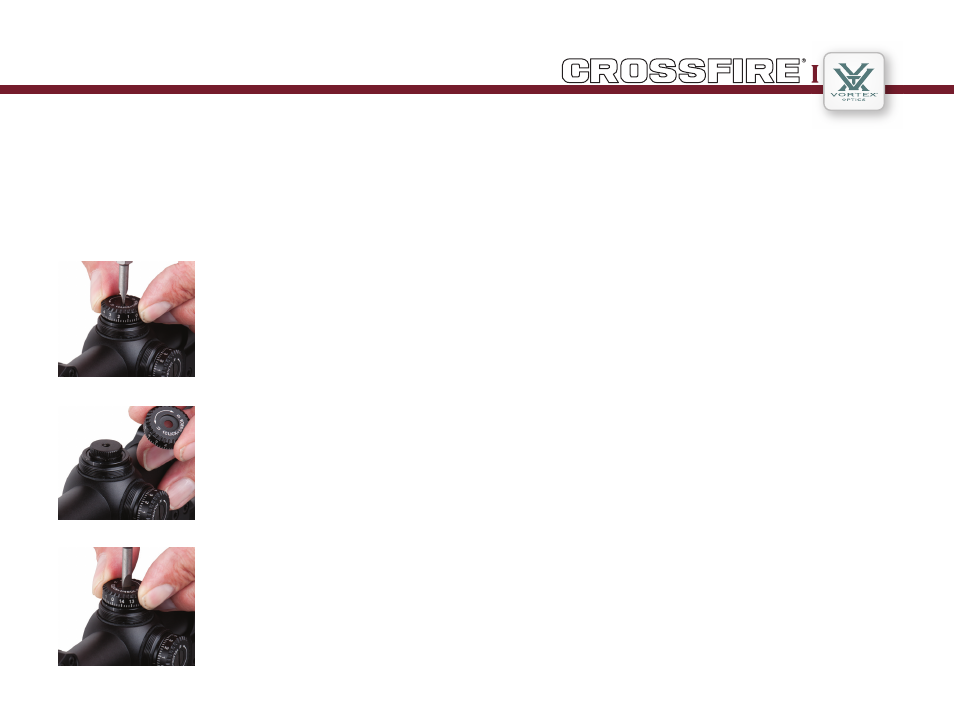

1. Remove the outer cap.
While firmly holding the
dial, loosen and remove
center screw.

2. Lift dial off of scope.
Orient dial to reposition
the zero mark on the index
line.

3. Install dial and reinstall
and tighten center screw
while firmly holding the
dial..

AintenAnce

The fully waterproof and fogproof Vortex Crossfire II riflescope requires
very little routine maintenance other than periodically cleaning the
exterior lenses. The exterior of the scope may be cleaned by wiping with a
soft, dry cloth.

Cleaning

• Be sure to blow away any dust or grit on the lenses prior to wiping the
surfaces.

• Using your breath, or a very small amount of water or pure alcohol, can
help remove stubborn things like dried water spots.

All components of the Vortex Crossfire II riflescopes are permanently
lubricated, so no additional lubricant should be applied.

Lubrication

When cleaning the lenses, be sure to use products, such as the Vortex Fog
Free cleaning products or Lens Pen, that are specifically designed for use
on coated optical lenses.

Note: Other than to remove the turret caps, do not attempt to disassemble
any components of the riflescope. Disassembling of riflescope may void
warranty.

If possible, avoid exposing your Vortex riflescope to direct sunlight or any
very hot location for long periods of time.

Storage
