Reticle Focus
Once this adjustment is complete, it will not be necessary to re-focus every
time you use the riflescope. However, because your eyesight may change
over time, you should re-check this adjustment periodically.
To adjust the reticle focus:
• Look through the riflescope at a blank
white wall or up at the sky.
• Turn the eyepiece focus knob in or
out until the reticle image is as crisp as
possible.
• Note: Try to make this particular
adjustment quickly, as the eye will try to compensate for an out-of-focus
reticle.
Vortex Crossfire II riflescopes use a fast focus eyepiece designed to quickly
and easily adjust the focus on the riflescope’s reticle.
The Crossfire II riflescope incorporates adjustable elevation and windage
dials with audible clicks. Each audible click moves the bullet’s point-of-
impact 1/2 of a minute of angle (MOA).
1/2 MOA closely corresponds to 1/2 inch at 100 yards, 1 inch at 200
yards, 1 1/2 inch at 300 yards...taking two (2) clicks to move the bullet’s
point-of-impact approximately one inch at 100 yards.
Windage and Elevation Adjustments
Begin adjusting the windage and elevation settings by first removing
the outer covers. Then, move the
turrets in the direction you wish the
bullet’s point-of-impact to change.
To make the adjustments, rotate the
adjustment dial in the appropriate
direction (up/down or left/right) as
indicated by the arrows.
After sight-in, you can re-align the
zero marks on the turret dials with
the reference dots if you wish (see
Indexing Adjustment Dials with Zero
Reset on page 12). Replace outer
covers when done.

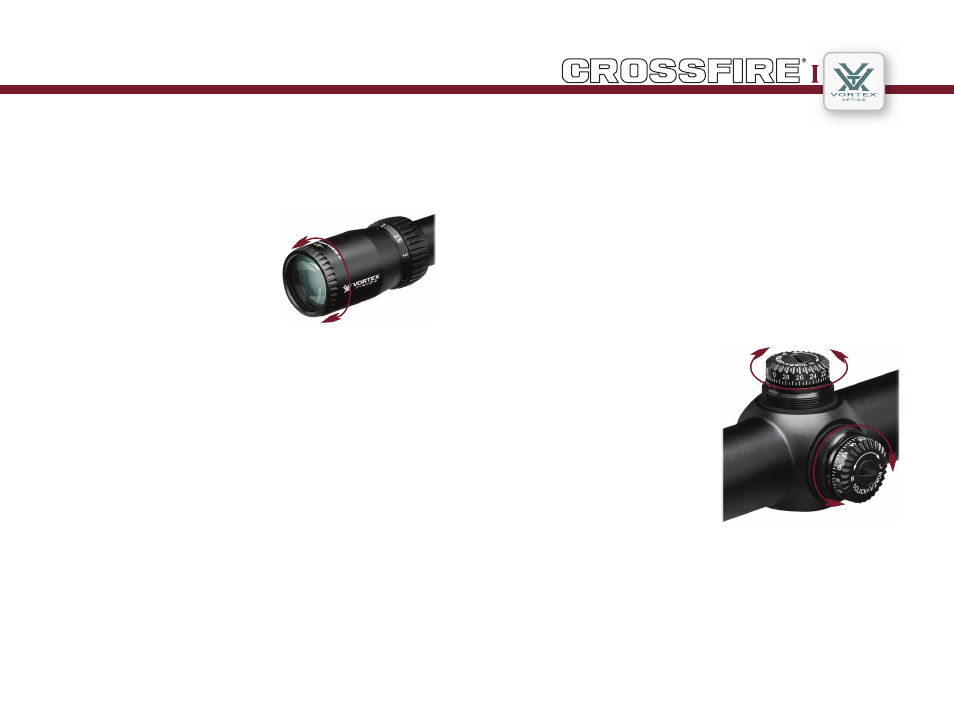

How to adjust windage and elevation settings
Adjust the reticle focus
To adjust settings, turn dials:
· Up / Down
· Left / Right
