Vigo VG06012 User Manual

Page 8

background image

10

3

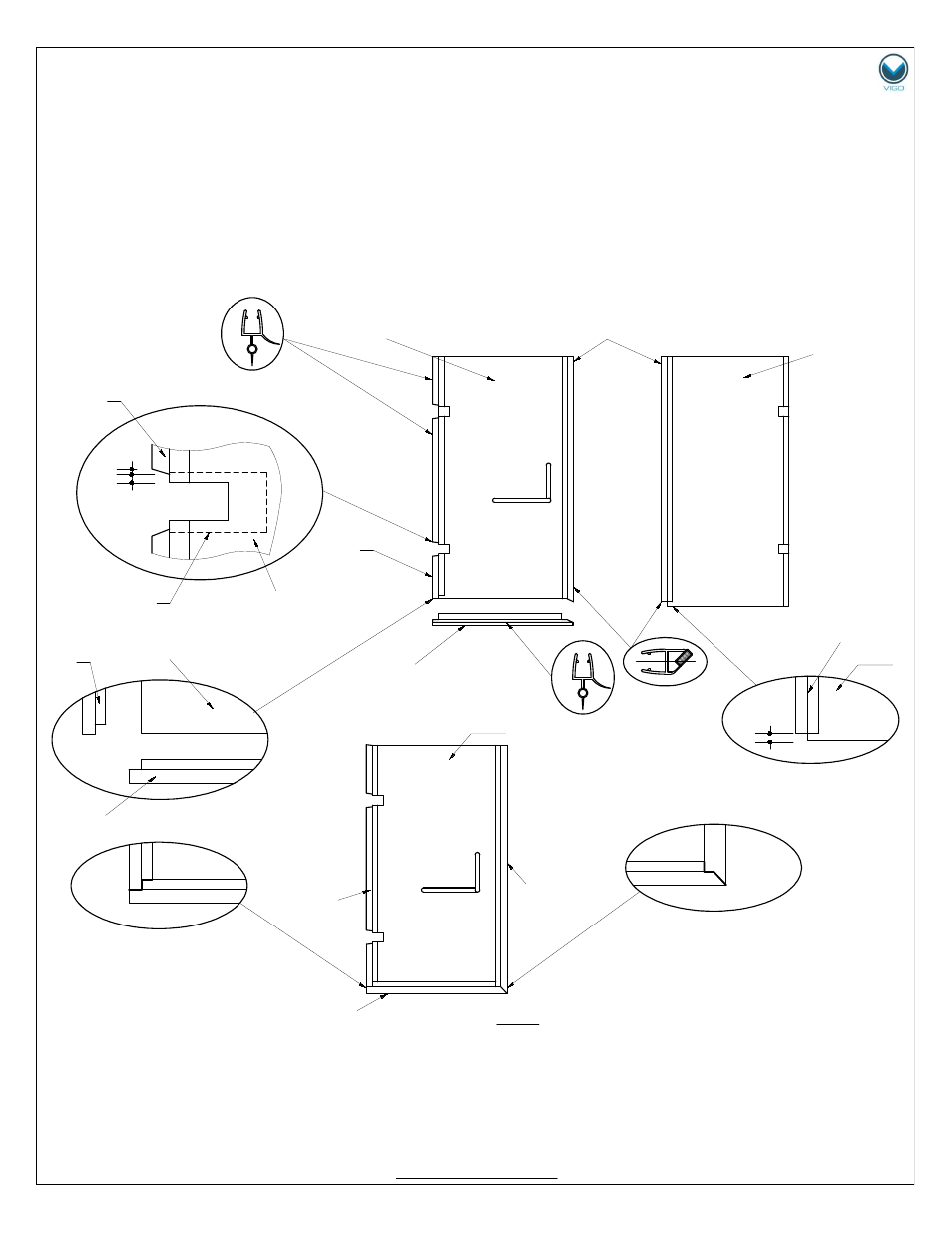

FIG.7

SEAL STRIP INSTALLATION

13

1/2"

1/8"

3

13

HINGE OUTLINE

5

4

5

10

13

3

1/4"

4

5

13

10

3

8

MODEL VG06012

E.

INSTALLING THE WATER SEAL STRIP

1.

Clean all glass panel edges receiving seal strips with rubbing alcohol. [SEE FIG.7]

2.

Cut seal strips (#6, #10, #13) according to seal strip diagram (FIG.7).

3.

Verify that the seal strip lips are facing toward the inside of the cabin.

4.

Install seal strips according to seal strip diagram (FIG.7).
