Vigo VG06012 - Manual (Page 2)

Packing List
1. Wall connector (1pc)
2. Structural arm (1pc)
3. Door (1pc)
4. Side glass panel (1pc)
5. Door magnetic seal strip (2pc)
6. Side seal strip (1pc)
7. Glass support (2pc)
8. Hinge (2pc)
9. Bottom rail (2pc)
10. Door bottom seal strip (1pc + 1pc is extra)
11. Bottom corner joint (1pc)
12. Handle assembly (1pc)
13. Door side seal strip (1pc + 1pc is extra)
14. Phillips screw 1 1/8" (1pc)
15. Hex screw 1 5/8" (10pc)
16. Phillips screw 3/4" (5pc)
17. Plastic anchor (green) (6pc)
18. Plastic anchor (white) (10pc)
19. Hex screw covers (16pc)
2
1
2
3
9
11
8
5
12

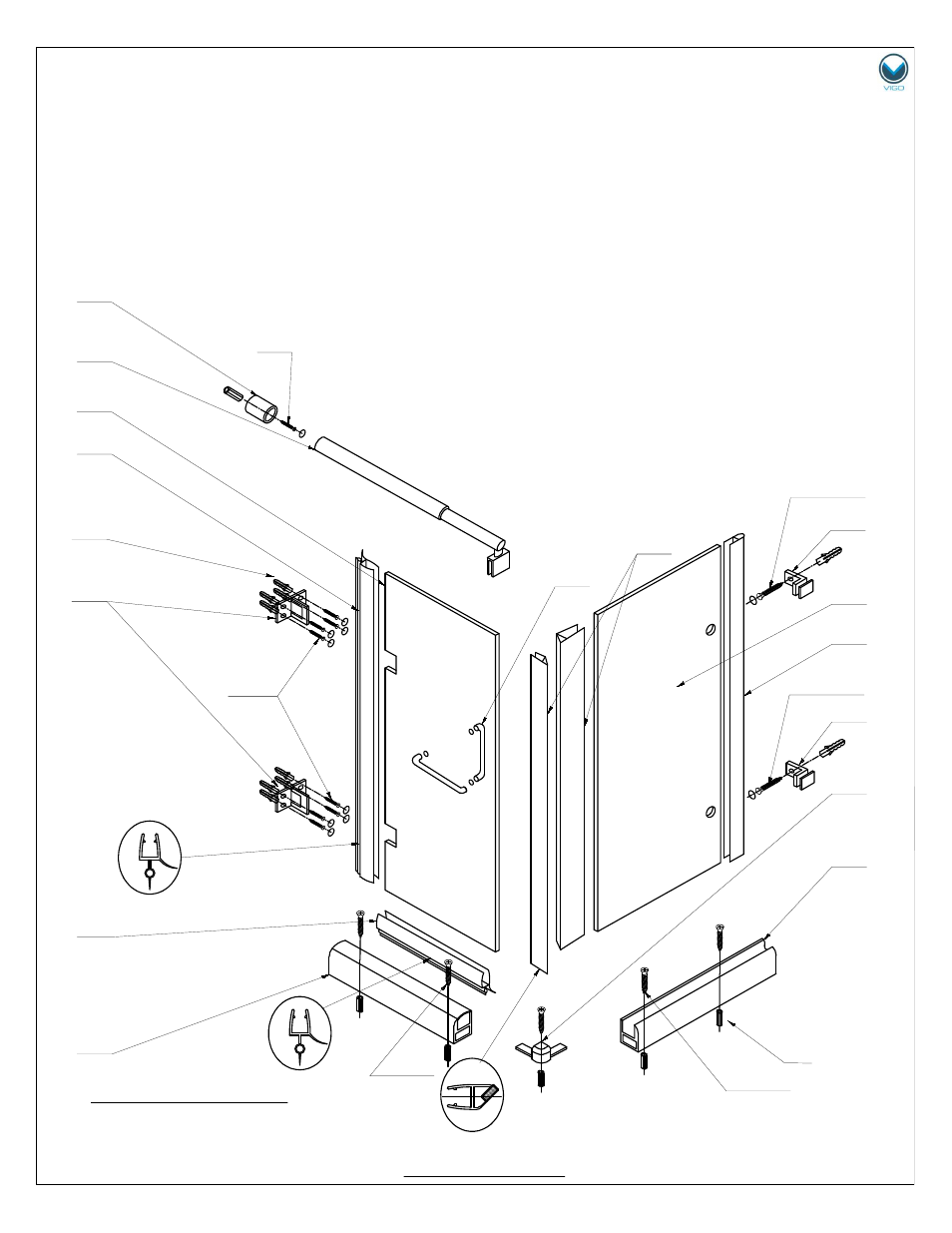

MODEL VG06012
6
NOTE: INSTALLATION MUST BE DONE BY A QUALIFIED, LICENSED PLUMBER.
GLASS THICKNESS 3/8"
PLEASE READ INSTRUCTIONS BEFORE PROCEEDING
OWNER'S MANUAL
INSTALLATION INSTRUCTIONS FOR STANDING SHOWER CABIN
4
7
7
10
9
18
16
16
15
15
14
15
13
17
