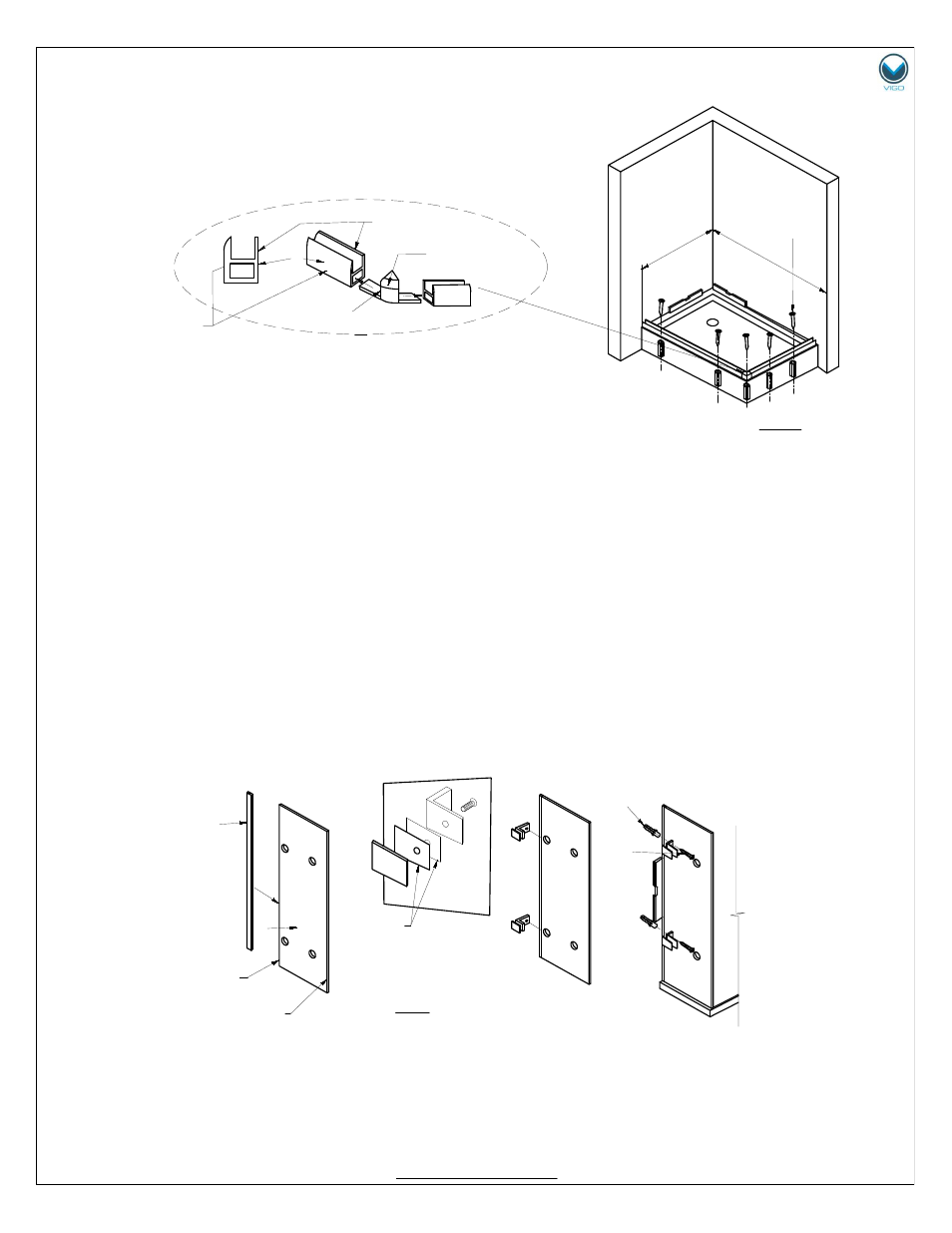

FIG.2
FIG.3
THIN
GASKETS
6
WALL
SIDE
DOOR
SIDE
18
15
5
A B
9
11
THIS EDGE LOOKS
OUTSIDE OF THE SHOWER
THIS EDGE LOOKS
INSIDE OF THE SHOWER
#17
6
MODEL VG06012
B. INSTALLING SIDE GLASS PANEL
1. Arrange glass to the preferred configuration. [SEE FIG.1A]
2. Install the seal strip (#6) to the wall side of the front glass panel (#4). [SEE FIG.3]
3. Screw in the glass support (#7) with the hex key to the side glass panel. Be sure to use washers
on both sides of the panel.
4. Place the side glass panel onto the bottom rail (#9).
5. Mark holes on the wall for the mounting screws.
6. Remove the side glass panel and drill holes into the wall. Insert the plastic anchors (#18) into the
holes.
7. Replace the front glass panel. Screw into the wall with 1 5/8" screws (#15). [SEE FIG.4]
TOP REMOVES TO
INSTALL 3/4" SCREW
