Broilmaster SBB 2804 - Manual (Page 13)

SBB00104-1-1107 Page 13

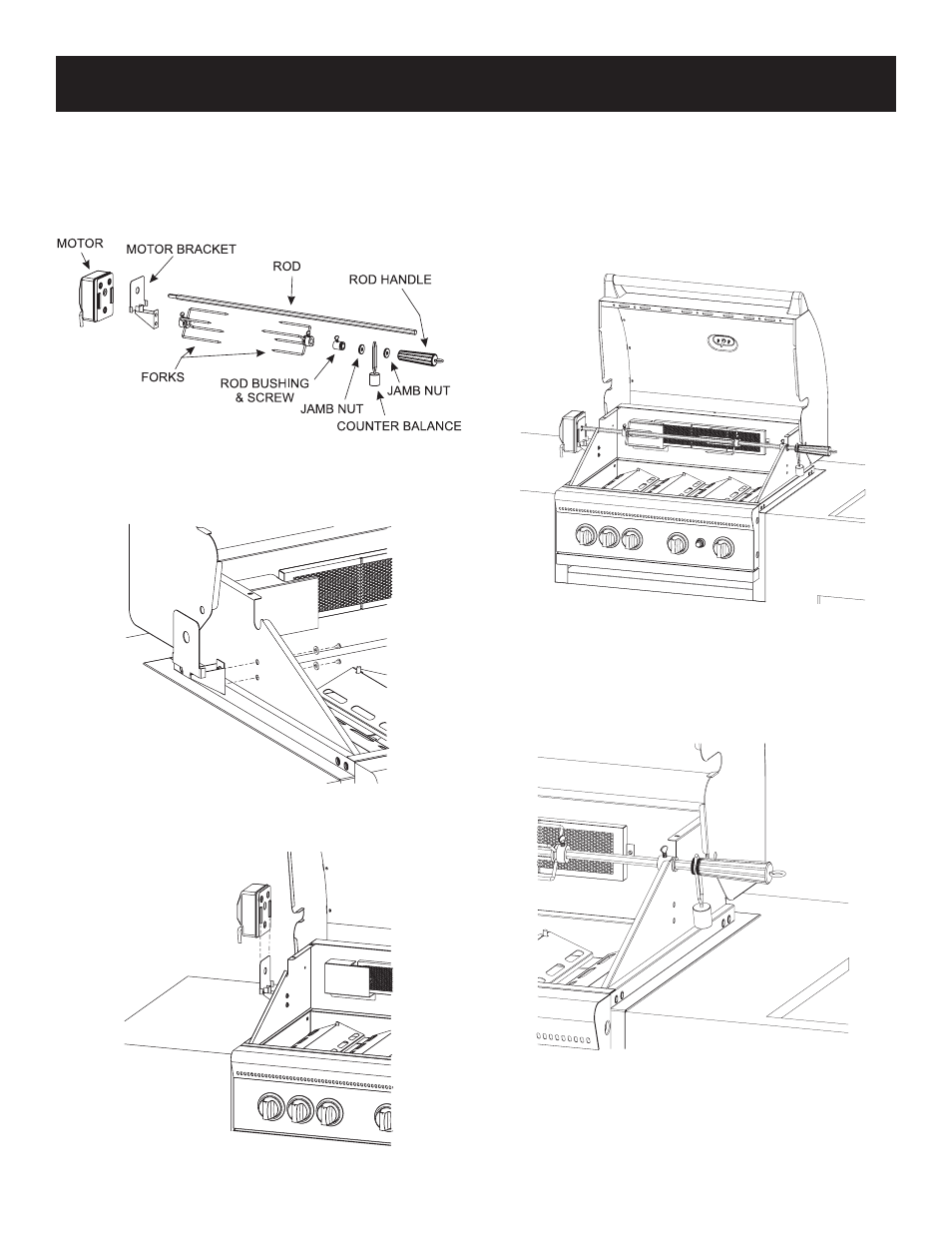

ROTISSERIE INSTALLATION
The Infrared burner (Rotisserie burner) is for rotisserie cooking
only. Warning: Never use the main burners while using the
Infrared Back Burner, as this could result in igniting the drip-
pings, or overheating your grill. Remove warming rack and
cooking grids.
9. Remove all components from the carton. See Figure 8.
10. Attach the motor bracket to the left side of the grill with two
(2) lock washers, and 1/4” screws. See Figure 9.
11. Slide motor into position on motor bracket. See Figure 10.
12. Slide a rotisserie fork onto each end of the spit. See Figure
11.
13. Adjust spacing between rotisserie forks to accommodate your
food. Tighten the thumbscrews to secure the holding forks.
14. Slide the bushing onto threaded end of spit. Insert spit into
slot of motor on left side of grill and place bushing into slot
on right side of grill. Tighten thumbscrew on bushing.
See Figure 11.
15. Screw jamb nut to the threaded side of spit. Slide counterbal-
ance onto threaded end of spit. The counterbalance will remain
to the outside of the grill. Screw second jamb nut into the spit
to hold counterbalance in place. See Figure 12.
16. Attach handle onto spit. See Figure 12.
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
