Surround and grill assembly – Broilmaster SBB 2804 User Manual
Page 12
SBB00104-1-1107
Page 12
8. Remove ignitor button, insert AA battery (provided) positive
side facing out, replace ignitor button. See Figure 7.
4. Attach grill head to surround from inside of the grill
with four (4) lock washers, and 1/2” screws (provided).
See Figure 5.
5. Place flame tamers over burners. Pins on burner box fit through
holes on flame tamer. See Figure 6.
6. Place cooking grids into grill. See Figure 6.
7. Place warming rack on top of grill body side walls.
See Figure 6.

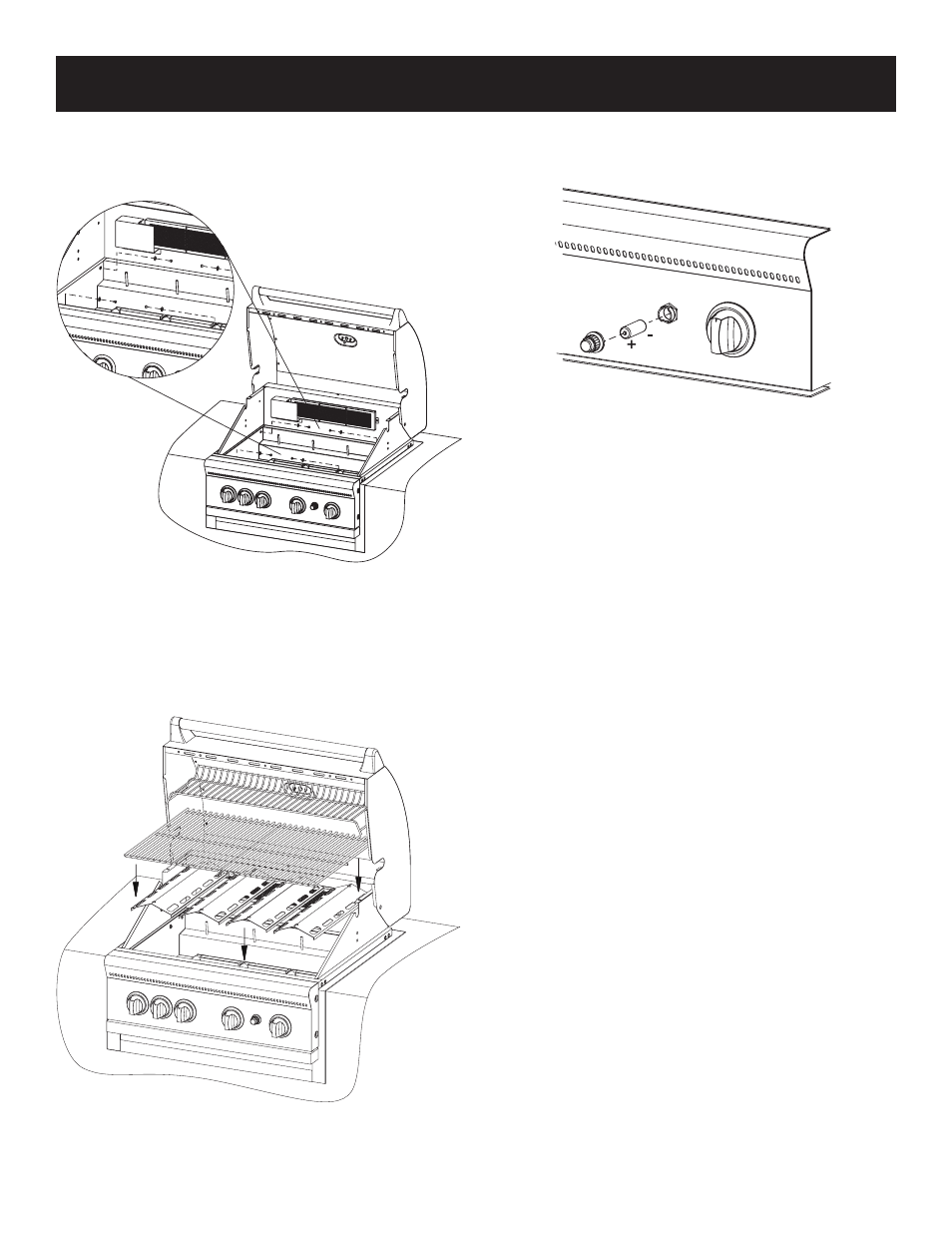

SURROUND AND GRILL ASSEMBLY
Figure 5
Figure 6
Figure 7
