Victorio VKP1011 Apple Peeler User Manual
Page 6

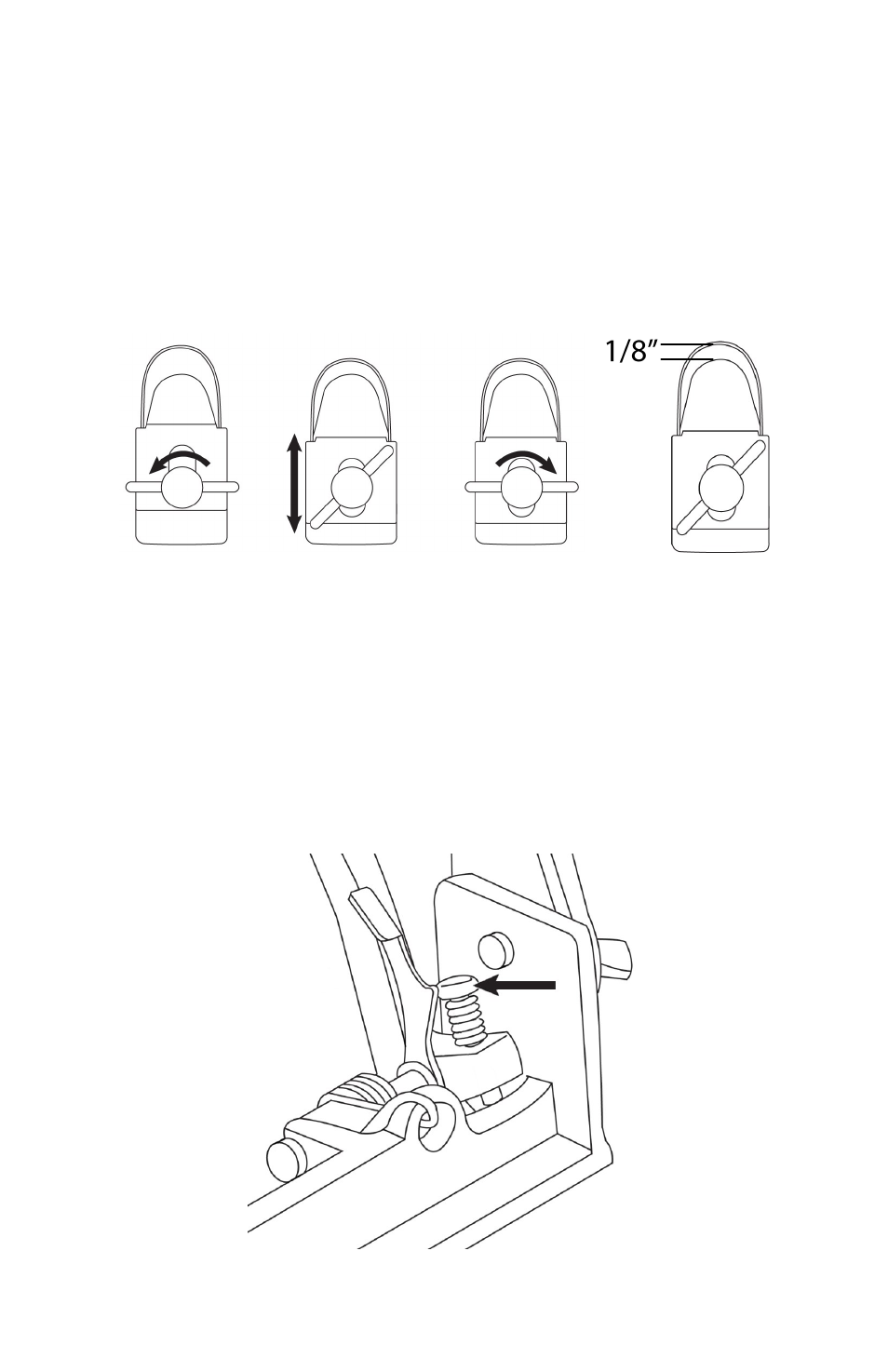

Adjust peeling blade:
The peeling blade works best when adjusted to about 1/8 inch past the head of
the peeling arm. To adjust the peeling blade, loosen the wing-nut 1/2 turn. The
blade can be moved forwards to remove more peel or backwards to remove
less peel. Firmly tighten the wing-nut after adjustment has been made. It may
require a few tests and further blade adjustments before you get the desired
result. * Use caution when adjusting, blade is sharp!
Adjust peeling arm:
The peeling arm has been factory adjusted to have approximately 1⁄4 inch
clearance between the peeling blade and the widest part of the fork.. To adjust
the position of the peeling arm, either tighten or loosen the adjustable screw to
achieve proper spacing. Turn the screw clockwise to adjust it away from the
fork. Turn the screw counter-clockwise to adjust it closer to the fork.
4
Loosen
Adjust
Tighten
