Introduction
The EL Series Ultraviolet Lamps offer a uniform and intense source of ultraviolet light
(radiation). The lamps emit one of three UV wavelengths or white light in four watt, six watt
and eight watt configurations for exposure/illumination of materials. All EL Series Lamps can
be used with the universal J138 Lamp Stand. The four watt models can be used with C-10E
Cabinet for viewing materials in a darkroom environment. Eight watt lamps can be used with
the C-65 Cabinet.
NOTE: Though the manual refers to the midrange UV waveband as 302nm, others refer to
this region as 300nm or 312nm. The spectral output of all these regions is the same.
CAUTION: Shortwave and midrange UV radiation will cause damage to unprotected eyes
and skin. Before operating any unit, be sure all personnel in the area are properly protected.
UV Blocking Eyewear should be worn as well. UVP has a complete line of UV Blocking
Eyewear: Spectacles, Goggles and Faceshield designed for this purpose.
Specifications
EL Lamps - Four Watt Models
Dimensions: 9.8”L x 2.5”H x 3.8”W (249 x 64 x 97 mm)
Model Part Number Volt/Hz/Amp Wavelength___________
UVS-14 95-0266-01 115/60/0.16 254nm/White (one tube each)
95-0266-02 230/50/0.16
95-0266-03 100/50-60/0.16
UVL-14 95-0264-01 115/60/0.16 365nm/White (one tube each)
95-0264-02 230/50/0.16

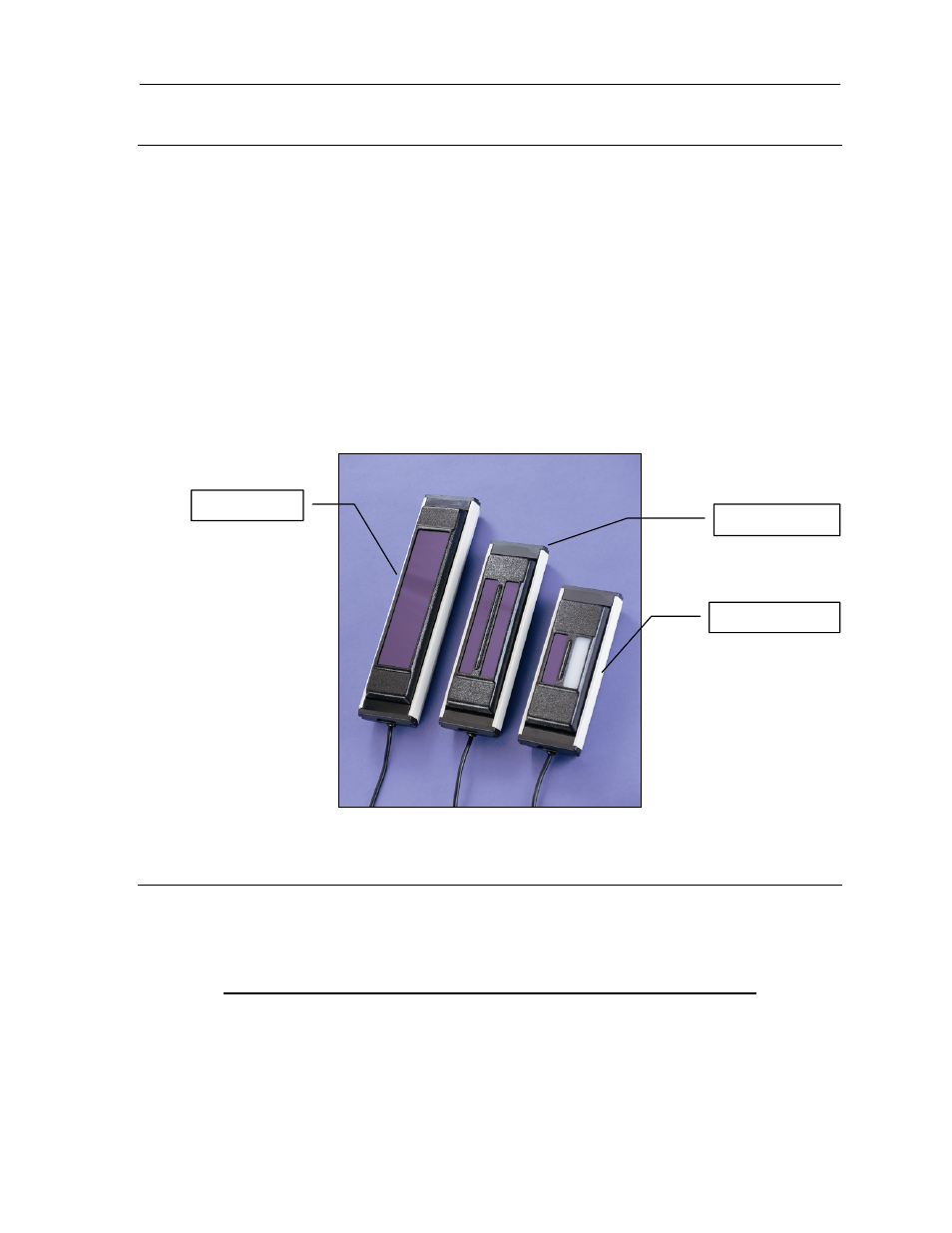

4-Watt Model
6-Watt Model
8-Watt Model
