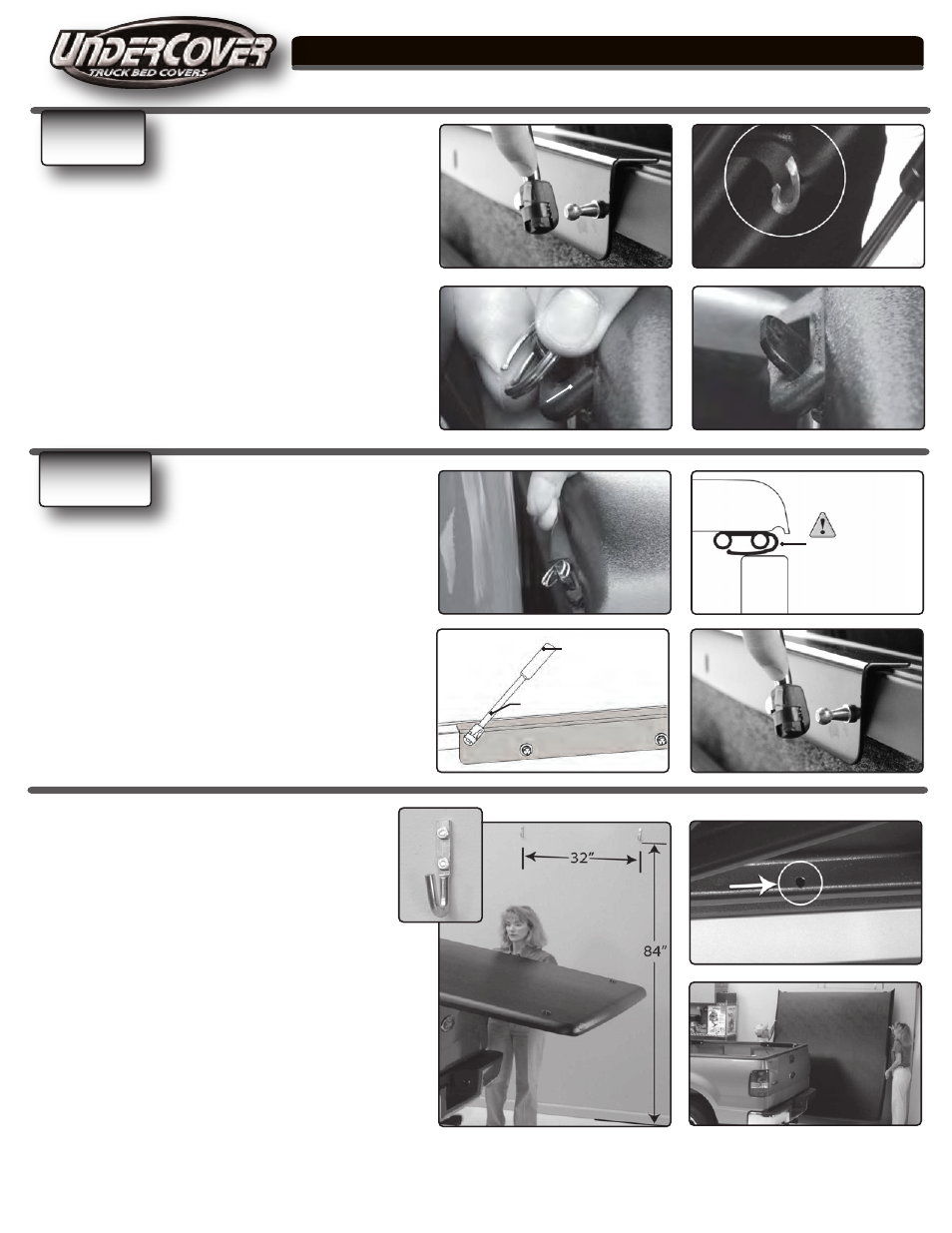

Removal, Reinstallation & Wall Hanging Instructions

Minute

Removal

Minute

Re-Install

3 Easy Steps!

Wall Hanging Instructions

Step 1 - Release strut off of ball stud, be sure to

secure cover to prevent it from closing unex-

pectedly. Place loose end of strut in storage

clip. Repeat for other side.

Step 2 - With the cover closed, remove the

spiral rings at the front of the cover.

Note: Always be sure to remove the struts prior to

removing the spiral rings.

Step 3 - With some assistance, carefully lift the

cover off of the truck bed.

Step 1 - Place tonneau cover on the truck bed

positioning the female hinges over the spiral

ring tabs.

Step 2 - Install the spiral rings to the spiral ring

taps.

Step 3 - Open the cover and re-install the

struts. Be sure the front flap is hanging over

the bulkhead properly.

Step 1 - Prior to removing the tonneau,

mount the two J-Hooks provided, on the

garage wall. The hooks must have a mini-

mum height from the floor of 84”. Center

horizontally 32“ apart from each other.

For long bed trucks mount 98” from floor.

Step 2 - Remove your tonneau from the truck

bed.

Step 3 - Hang the tonneau vertically on the

hooks, under side against the wall, inserting

the hooks into the holes provided.

HYDRAULIC STRUT

(LARGE END)

ATTACHES TO COVER

(ROD END)

INCORRECT

PLACEMENT

OF FRONT FLAP
