13
Grass Catcher Removal and Attachment
ATTACHING THE GRASS CATCHER
1. Set the back plate and support (A, Figure 19) onto
the pins of the hitch plate (C). Secure with rod (D)
and hair pin (B).
2. Hook the bags on the back plate (Figure 7).
3. Install the catcher cover (A, Figure 7) and secure
with the hinge pins (D, Figure 6) and hair pin clips
(D).
Note: Push the hair pin clips all the way on or they will
be bent by the hinge when the cover is opened.
4. Insert lower chute (A, Figure 10) and middle tube
(D) into upper tube (E) and clip into turbo.

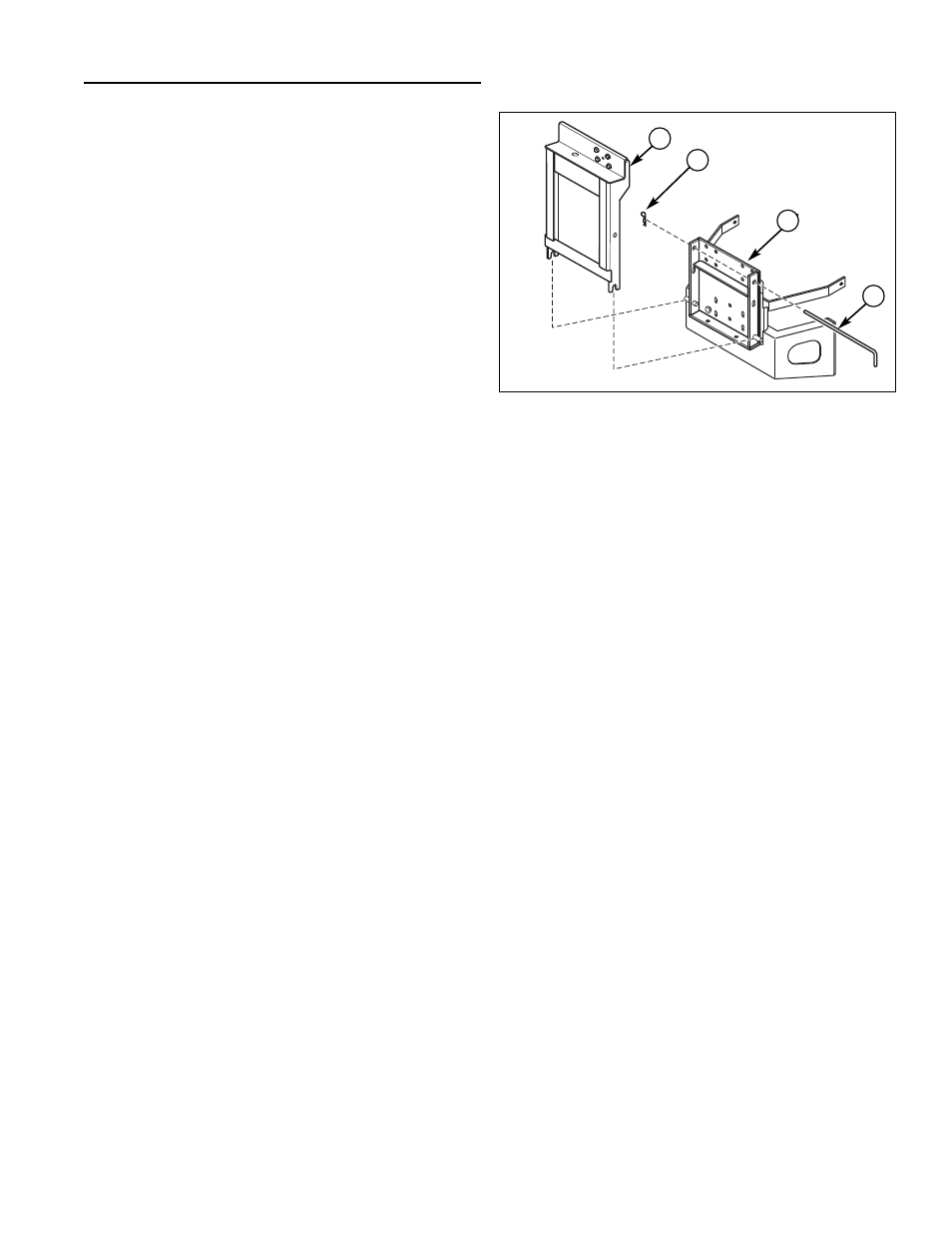

Figure 19 . Install Back Plate (Flat Style Bumper)
A. Back Plate and Support C. Hitch Plate
B. Hair Pin
D. Rod
A
B
C
D
