Grass Catcher Removal an d Attachment
REMOVING THE GRASS CATCHER
1. Remove the hair pin clips (B, Figure 16) and hinge
pins (D) and remove the cover (A).
A
B C D

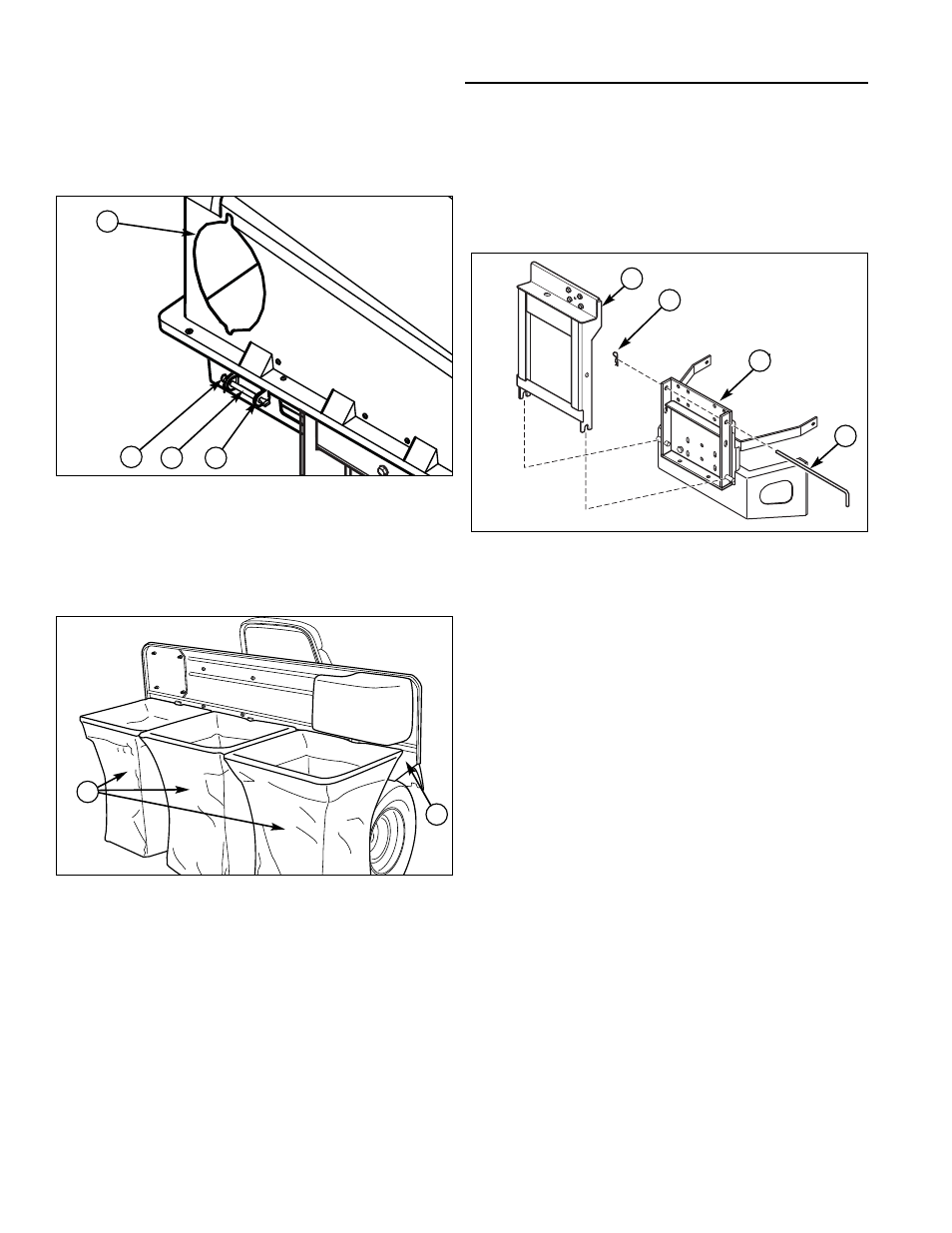

Figure 16. Remove the Cover
A. Cover
C. Hinge
B. Hair Pin Clip E. Hinge Pin
2. Remove the bags (A, Figure 17) by tilting them off
their hooks. Empty any grass out of the bags.
Figure 17. Bags
A. Bags
B. Back Plate
A
B
Note: Back plate (A, Figure 18) will fall when rod (D)
is removed.
3. Remove the hair pin (B, Figure 18) and rod (D)
while holding back plate (A).
4. Lift the back plate and support (A) off hitch plate
(C).
Figure 18 . Install Back Plate (Flat Style Bumper)
A. Back Plate and Support C. Hitch Plate
B. Hair Pin
D. Rod
A
B
C
D
