6. Install the three pipe plugs (31) in the pump casing.

7. Replace all relief, cooling, flushing or drain lines.

8. Read carefully the section of this manual title OPERATION.

9. Connect electricity to motor.

10. Open suction and discharge valves.

11. Loosen pipe plug (31) and vent seal chamber prior to starting.











Thrush Co. Inc.

P.O. Box 228 · 340 West 8

th

St.

Peru, IN 46970 (765) 472-3351

www.thrushco.com

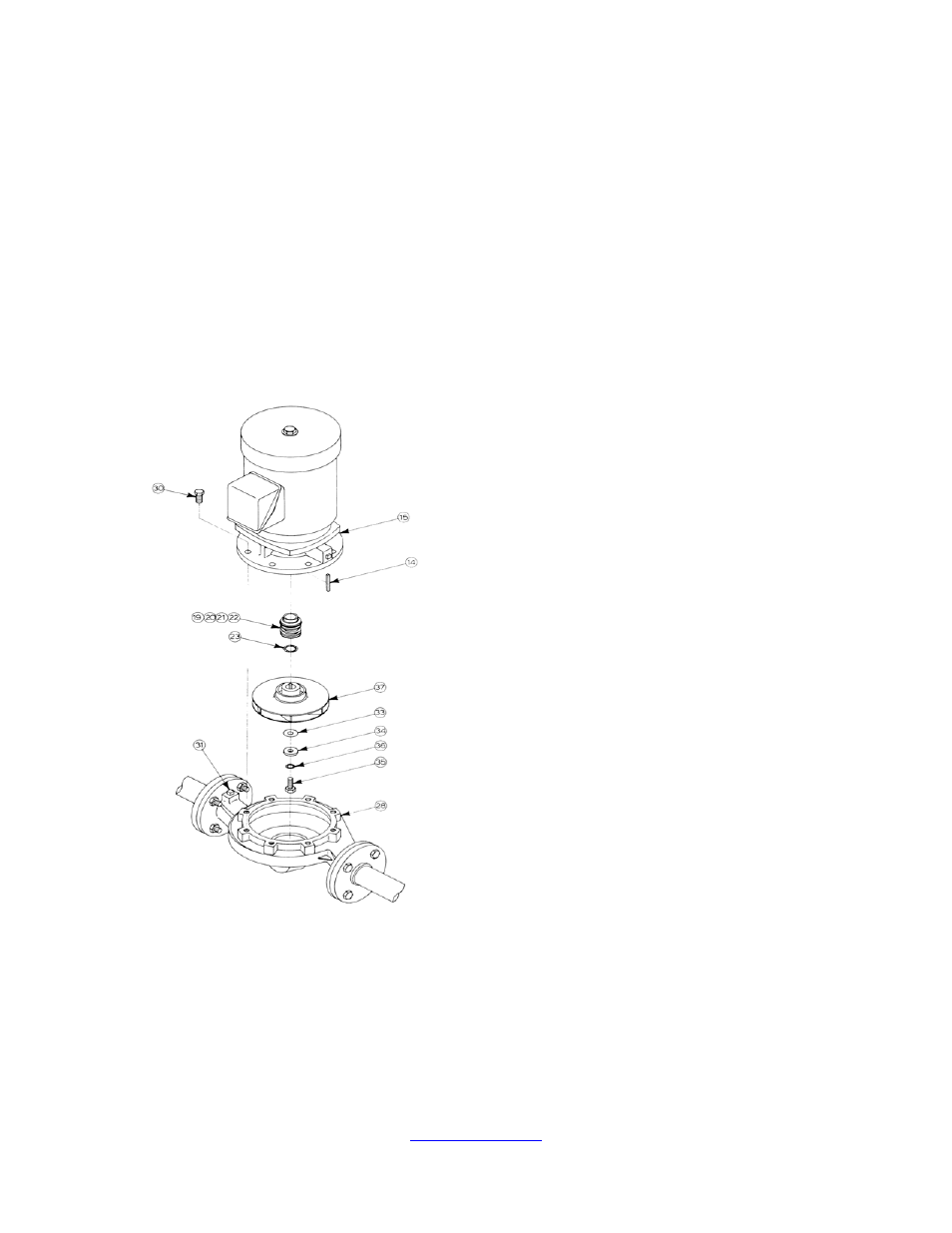

TV2g Parts List

14.

Impeller Key

15.

Bracket

16.

Spacer Ring (not shown)

19.
20. Cartridge
21. Seal
22.
23. Sleeve Gasket
27. Casing Gasket (not shown)
28. Casing
29. Pipe Plug
30. Cap Screw

33. Imp. Washer Gasket
34. Imp. Washer
35. Imp. Bolt
36. Imp. Bolt Gasket
37. Impeller
39. Suction Wear Ring (not shown)
50. Motor (not shown)

}
