3.3.1 Model 720 Air Eliminator (Continued)
Installation Tips
1. The Model 720 Air Eliminator should be located in a clean, open area, where it is
easily accessible for inspection, service and repair.
2. The Model 720 Air Eliminator should be installed at the top of each air separator
(Figure 3-5), or it may be installed at the system piping highest point with a pipe
run from the air separator.
3. Additional Model 720 Air Eliminators are recommended for each component and
pipe locations where air could accumulate.
4. A shut off valve should be provided to simplify cleaning and replacement of float
and control assembly if necessary. Valve should remain open during normal
operating processes.
TO PUMP
(AS Model Shown)
FROM
SYSTEM
SHUT OFF
VALVE
DRAIN LINE TO
DRAIN/SINK/
OR CONTAINER

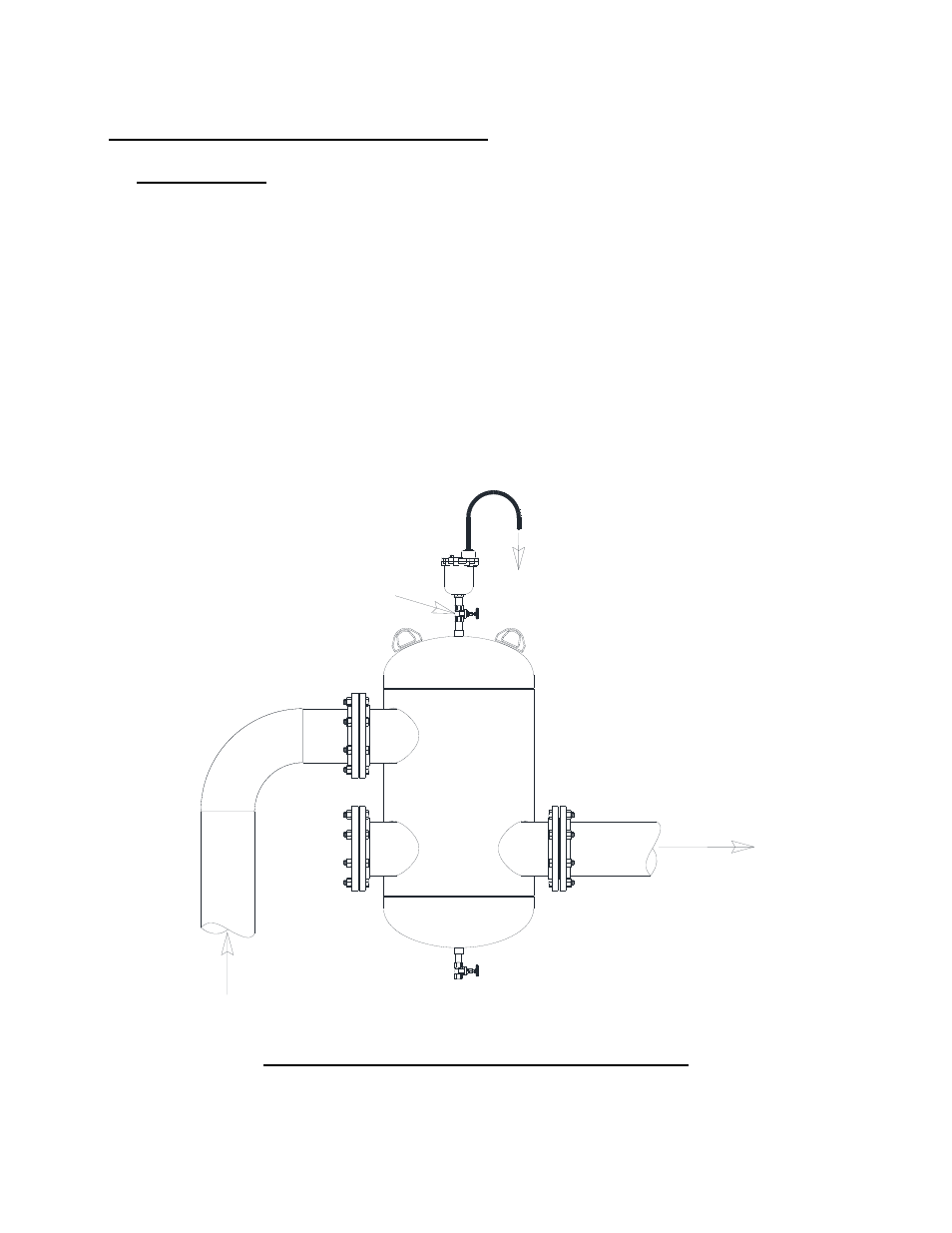

Figure 3-5 Model 720 Air Elimination Installation
