4.3 Initial Startup Procedure
The Standard Pressurizer-VS is equipped with an ABB Drive (Figure 4-3-1), also
available is an optional Yaskawa Drive (Figure 4-3-2). Displays and controls for each
controller are described below.
START
Initiates operation of drive
HELP
"HELP" button providing manual information
STOP
Ceases operation of drive
LOC/REM
Changes drive state from
local control (control panel)
to remote control (I/O or other external source
SOFT KEY 1
Function Changes according to state of panel
SOFT KEY 2
Function changes according to state of panel
UP
Changes parameters and
their value/increase reference
DOWN
Changes parameters and
their value/decrease reference
Drive Set Point (this % reading is
equal to system set point in PSI)
Current Discharge Pressure
Current Motor Amps
Current Drive Speed
100%
MENU DIR
LOC
_ _ _ _ PSI
_ _ _ _ A
_ _ _ _ Hz
?
LOC
REM
START ST0P
FWD REV SEQ REF
REM OTE
ALARM
MONITOR
M ENU
ESC
RESET
DATA
ENTER
AUTO
HAND OFF
STOP RUN
‐DRIVE‐ Rdy
Auto: Set Point
U1‐01 = 60.00 PSI
‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐
U1‐02 = 0.00 Hz
U1‐91 = 20 PSI
Drive Status
U1‐01 Drive Set Point
U1‐02 Current Drive Speed
U1‐91 Current Discharge Pressure
MENU
Scrolls through 5 main menus
ESC
Returns to previous Screen
UP
Changes parameters and
their value/increase reference
DOWN
Changes parameters and
their value/decrease reference
AUTO
The drive will start in "Auto" Mode
HAND
Initiate Operation of Drive
OFF
Ceases operation of drive
RESET
Selects digit to be changed
DATA/ENTER
Enter menus and parameters/sets values

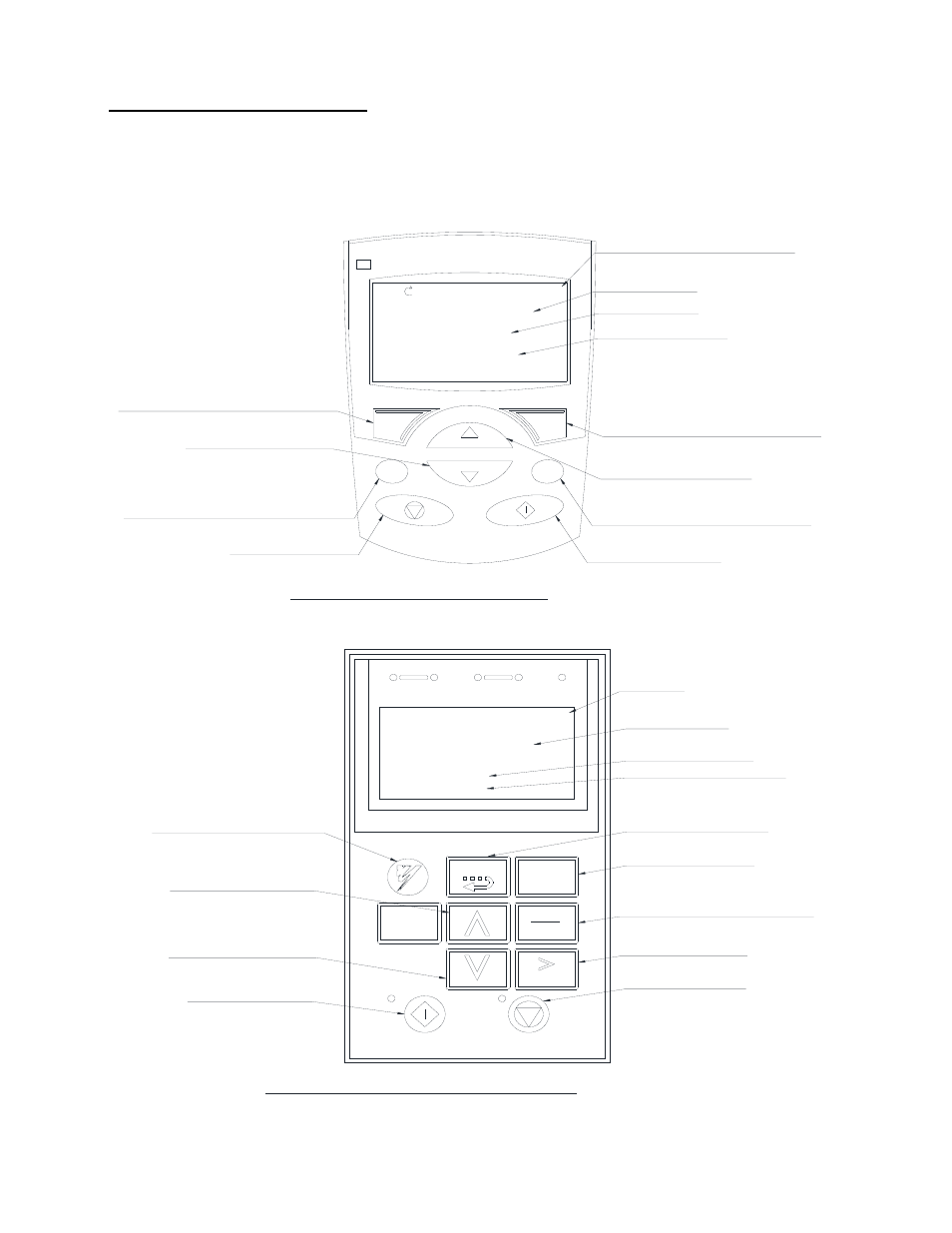

Figure 4‐3‐1 ABB Controller (Standard)
Figure 4‐3‐2 YASKAW A Controller (Optional)
