Installation, Low profile faceplate installation – Regency Energy U21 Small Gas Insert User Manual
Page 27
Regency
®
E21-3 Gas Fireplace Insert
27
INSTALLATION
1)

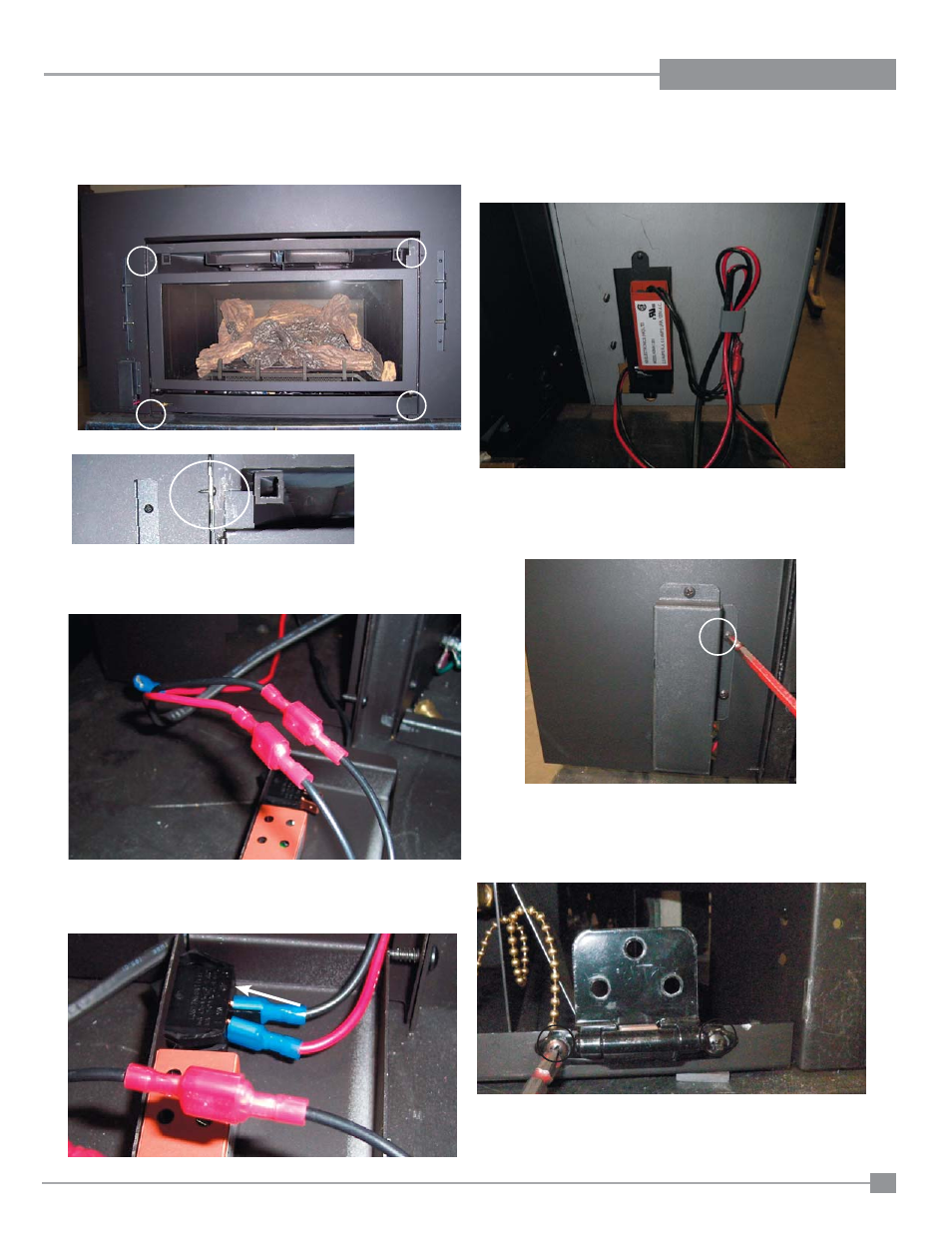

Attach the inner faceplate panel to the insert body using 4 screws
in the locations shown below.
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
2)
Connect the male end black and red fan switch wires to the wire
connectors from the fan speed control.
3)
Connect the female ends of the ON/OFF switch - to the ON/OFF
switch in the control box.
6)
Attach the 2 bottom louver hinges to the bottom fl ange on the
fi rebox using 2 screws per hinge.
Diagram 6
Diagram 7
4) Tuck the wires into the clip to keep them away from the insert using
the clip provided. Attach the clip to the rear of the faceplate to en-
sure that the wires do not touch the side of the unit. The power cord
should be run behind the inner faceplate panel.
5) Install the on /off switch - fan speed control box to the left hand
bottom leg of the inner faceplate. Controls located on the left side.
LOW PROFILE FACEPLATE INSTALLATION
