Regency Wood Insert & Hearth Heater

parts list

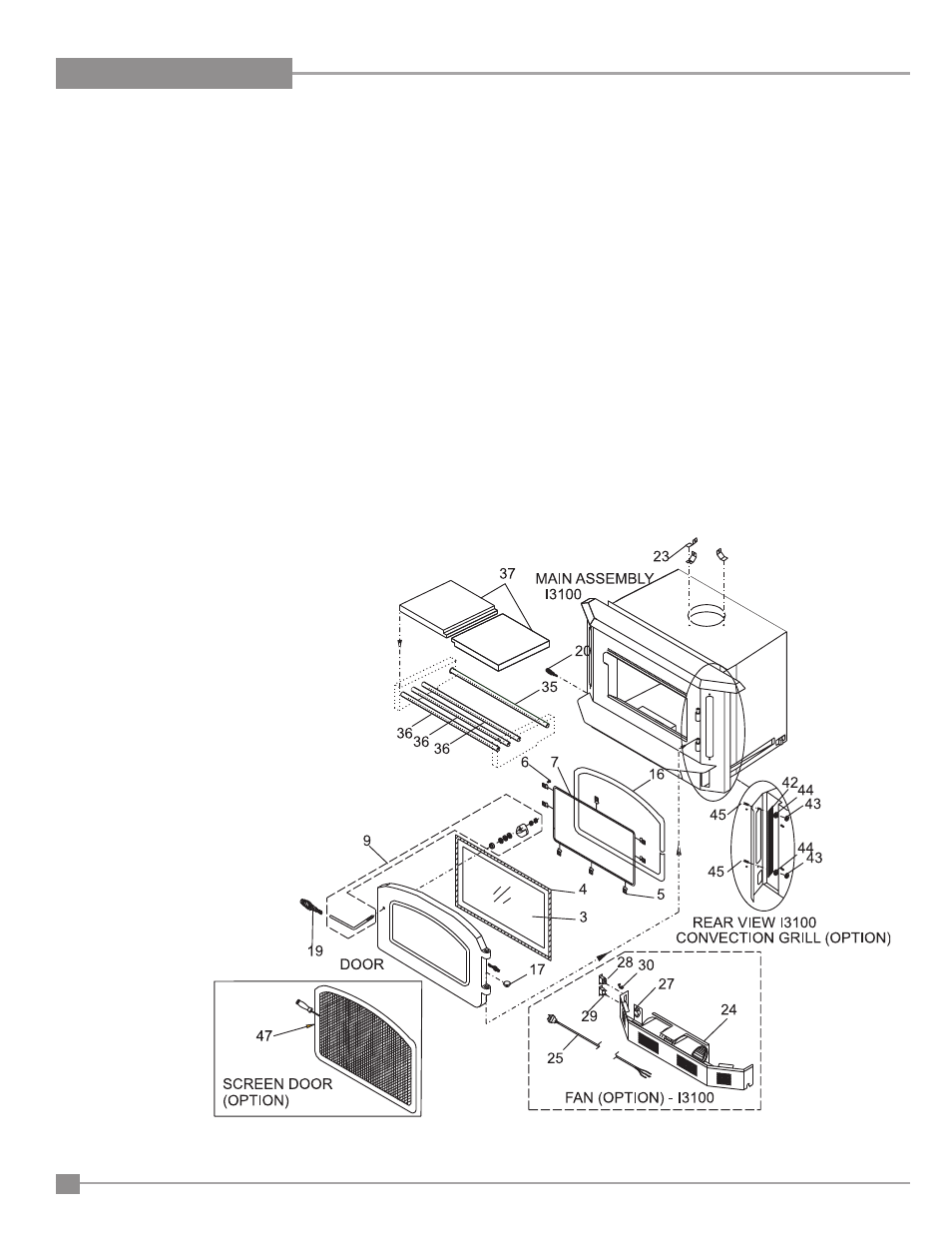

i3100 Main asseMBlY

part # description

850-152

Door Assembly - Large Gold (I3100)

850-151

Door Assembly - Large Black (I3100)

850-153

Door Assembly - Large Nickel Accent (I3100)

850-154

Door Assembly - Large Gold Accent (I3100)

3) 846-304

Glass - Replacement - (I3100)

4) 936-243

7/8" Adhesive Tape Gasket

5) 846-920

Glass Retainer Clips (set of 8)

6) *

Screw 1/4-20 x 3/8"

7) 948-172/P Glass Retainer - Large (I3100)

9) 846-973

Door Handle Assembly

16) 846-570

Med. Density Door Gasket Kit

17) 846-918

Hinge Caps (2/set) Gold

948-079

Hinge Caps Nickel (each)

19) 948-101

Spring Handle - Large Gold

948-135

Spring Handle - Large Nickel

20) 948-132

Spring Handle - Small Gold

948-136

Spring Handle - Small Nickel

23) 820-235

Flue Brackets (Pkg)

163-915

I3100L Fan/Blower Assembly

24) 910-157/P Blower/Fan Motor

25) 910-678

Power Cord (120 Volts)

27) 910-142

Fan Thermodisc

28) 910-140

Fan Speed Switch

HI/OFF/LOW (3-way)

29) 910-138

Switch - Auto/Manual (2-way)

30) *

Grommet Strain Relief

35) 063-954

Air Tube - 1" I3100 (Qty:1)

36) 063-953

Air Tube - 3/4" I3100 (Qty: 3) (each)

37) 063-955

Baffle (2/set) I3100

42) 163-932

Convection Grill-Gold (I3100)

163-930

Convection Grill-Black (I3100)

43) *

Hex Nut 10-24 Zinc coated

44) *

Washer #10 Flat

45) *

Bolt, 10-24 x 3/4" Black Carriage

47) 846-103

I3100 Wood Screen

948-216

Regency Logo

908-332

Manual
