10

Regency Wood Insert & Hearth Heater

installation

Ground

Fan

Fan

Ground

Green

Neutral

Live

Whit

e

Fan

Switch

Manual/

Auto

Switch

Black

Black

High

(Black)

Low

(Red)

Black

Fan Thermodisc

(normally open)

120V AC

60 Hz

The

rmo

Sw

itch

Se

nso

r

The

rmo

Sw

itch

Se

nso

r

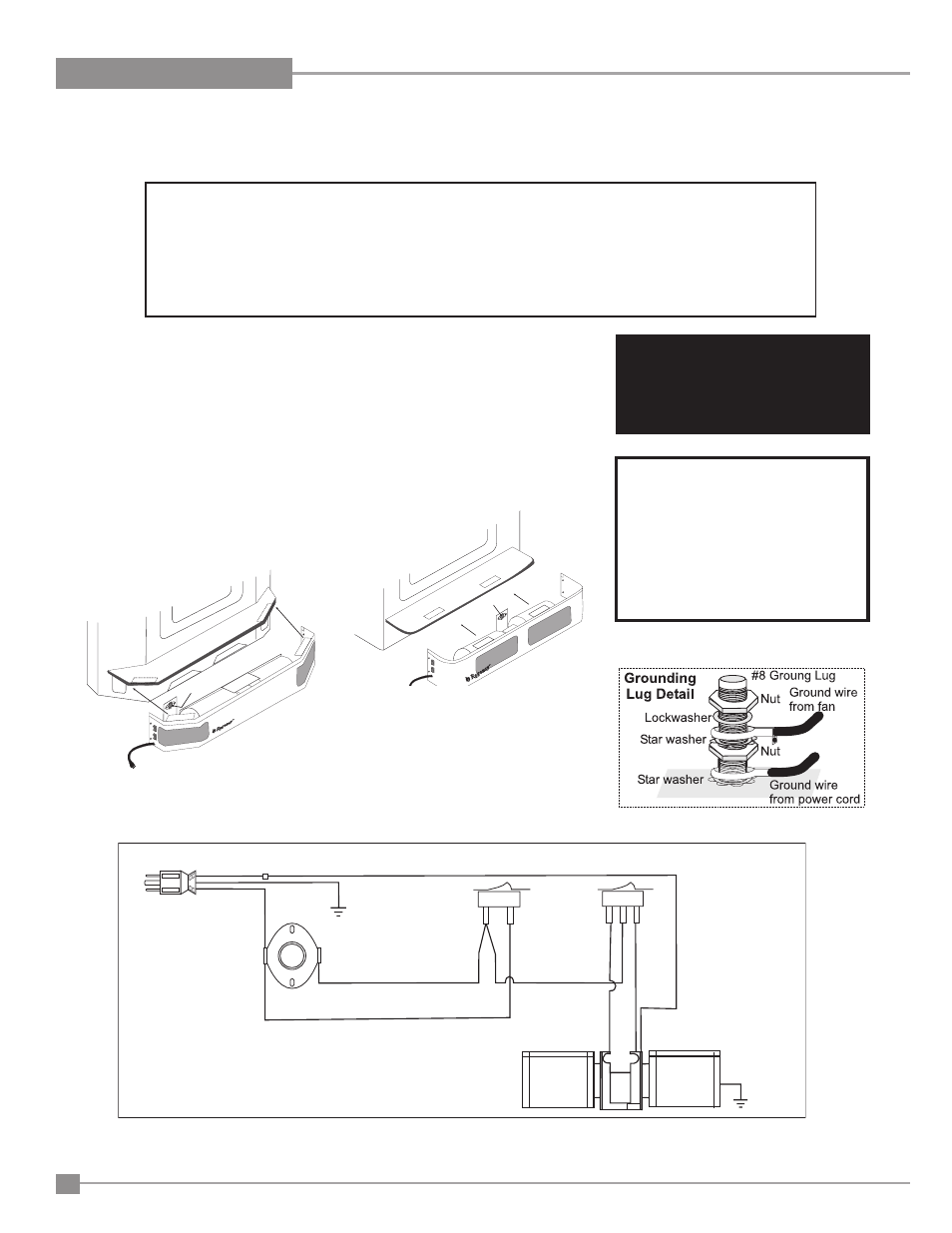

Blower/Fan Wiring Diagram

of the clips.

3) Ensure that the power cord is not in contact

with any hot stove surfaces.

4) Push the Regency logo plate into the two

holes in the front bottom left corner of the

fan.

do not turn fan on until your insert has

reached operating temperature or at least

30 minutes after starting fire.

fan / BloWer

Your fan should only be installed once the unit is

in place in order to prevent any damage to the

fan. To attach, follow the instructions provided

with the fan

1) Align the fan support with the offset clip

on the bottom of the ashlip.

2) Slide the supports into the clips. The tension

holding the clips in place may be adjusted by

increasing or decreasing the offset spacing

caution: label all wires prior

to disconnection when servic-

ing controls. Wiring errors can

cause improper and dangerous

operation.

WarninG:

electrical Grounding instructions

this appliance is equipped with a

three pronged (grounding) plug for

your protection against shock hazard

and should be plugged directly into

a properly grounded three-prong

receptacle. do not cut or remove the

grounding prong from this plug.

installer: Please record unit serial number here before installing blower.

Serial No.______________________________
