Regency Wood Insert & Hearth Heater

installation

Pull Open

Push Closed

shipping.

Hearth Heater (H2100M)

steel Baffle

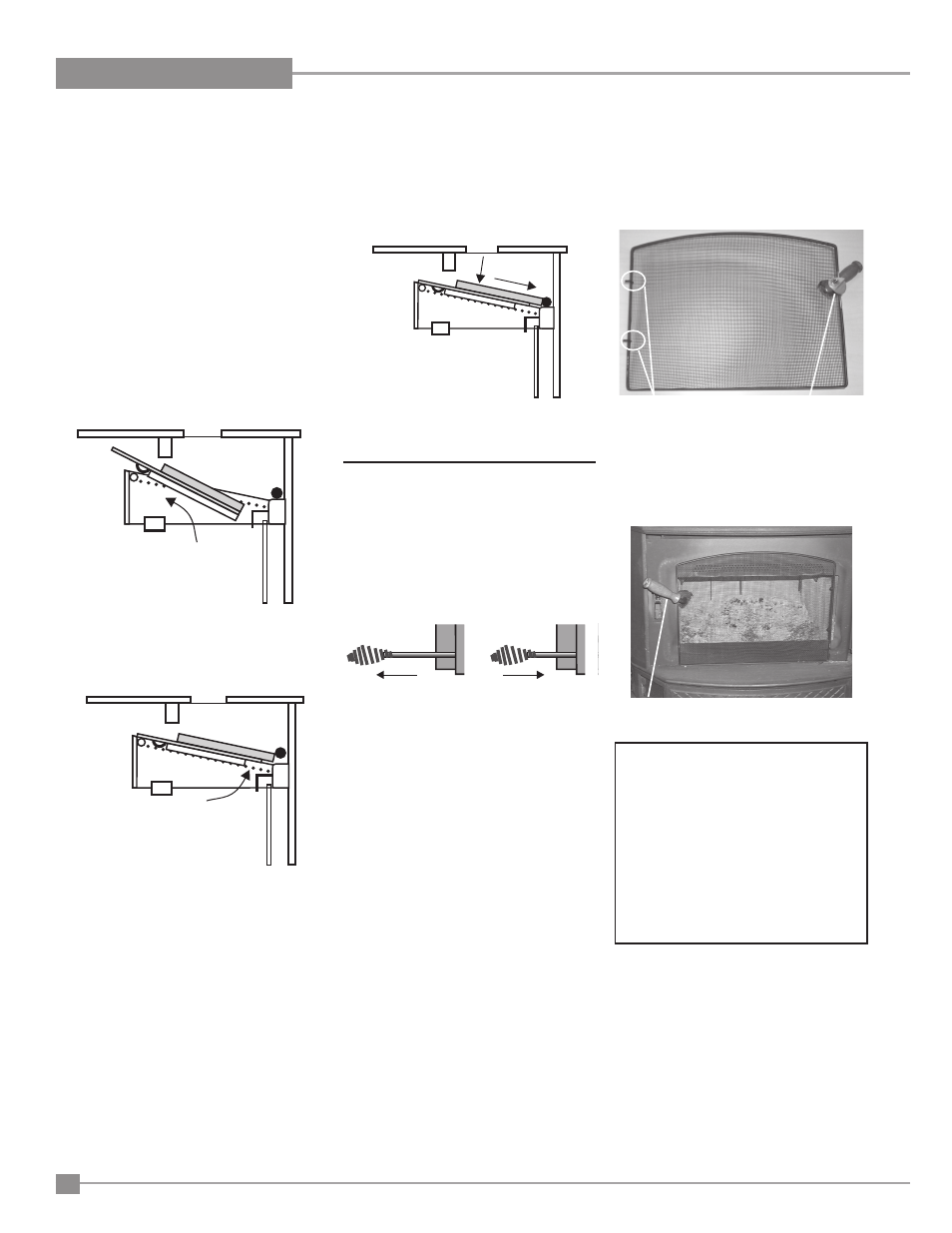

Place the insulation batt on top of the baffle.

Make sure that this batt is laying flat and does

not obstruct the smoke from getting up the flue

opening. This insulating batt may be wrapped

in paper for handling purposes and does not

require removal. Batt hold down weights are

supplied with the unit and are to be placed on

the insulation to either side of the flame spreader

as shown in the diagram and at the rear, directly

in front of the flue opening.

Lift the front end of the baffle up and over the

rear of the air tube. On Hearth Heater (H2100M)

remove center tube by sliding it sideways first

and then down.

Lift the rear of the baffle, pivoting it on the air

tube, until it clears the rear air channel.

Slide the rear of the baffle on top of the rear

air channel in front of the locating tabs. Make

sure that the insulation is lying flat and does

not obstruct the smoke from getting up the flue

opening. Place hold down weights on top of

the insulation - one on each side.

draft control

Before establishing your first fire, it is important

that your fully understand the operation of you

draft control. The draft rod is on the left side of

the Inserts and it controls the intensity of the

fire by increasing or decreasing the amount of

air allowed into the firebox. To increase your

draft - pull open, and to decrease - push closed.

As well as a primary and glass wash air system,

the unit has a full secondary draft system that

allows air to the induction ports at the top of

the firebox, just below the flue baffle.

WarninG: to build a fire in ignorance or to

disregard the informa tion contained in this

section can cause serious permanent dam-

age to the unit and void your warranty.

screen door

Hook screen to the inside on the right side

of the firebox door opening. Lock in place by

turning handle.

Back Side of Screen Shown

WarninG

fireplace stoves equipped with doors

should be operated only with doors

fully closed. if doors are left partly

open, gas and flame may be drawn out

of the fireplace stove opening, creat-

ing risks from both fire and smoke.

When operated with doors open the

manufacturer supplied screen must

be used.

note: The handle must be positioned at 10

o'clock when closed to avoid the handle from

getting hot and to ensure the screen stays in

place.

Handle Lock

Hooks

Handle at 10 o'clock position.
