Regency CS2400 Freestanding Wood Stove
INSTALLATION
Z
6"
6"
16"
Y
Y
X
X
6"
for
angled
corners
6"
16"
6"
6"
Z
Fuel Door
Opening
The Regency Freestanding models have been alcove approved and must be installed
with a listed double wall connector to the ceiling level.
Note: Minimum alcove ceiling height - 84"
Maximum depth of alcove - 36"
Minimum Overall Width (X) of Floor
Protector
for all installations:
US
38-3/8"
Canada
42-3/8"
Floor Protection
A combustible fl oor must be protected by a non-combustible material (like tile,
concrete board, or certifi ed to UL-1618 or as defi ned by local codes) extending
beneath the heater and a minimum of 6" from each side and minimum 16" from
the fuel door opening of the stove and minimum 6" (or the rear clearance to
combustibles whichever is smaller) from the rear of the stove.
NOTE: In Canada, fl oor protection must extend 18" to the front and 8" to
each side of the stove.

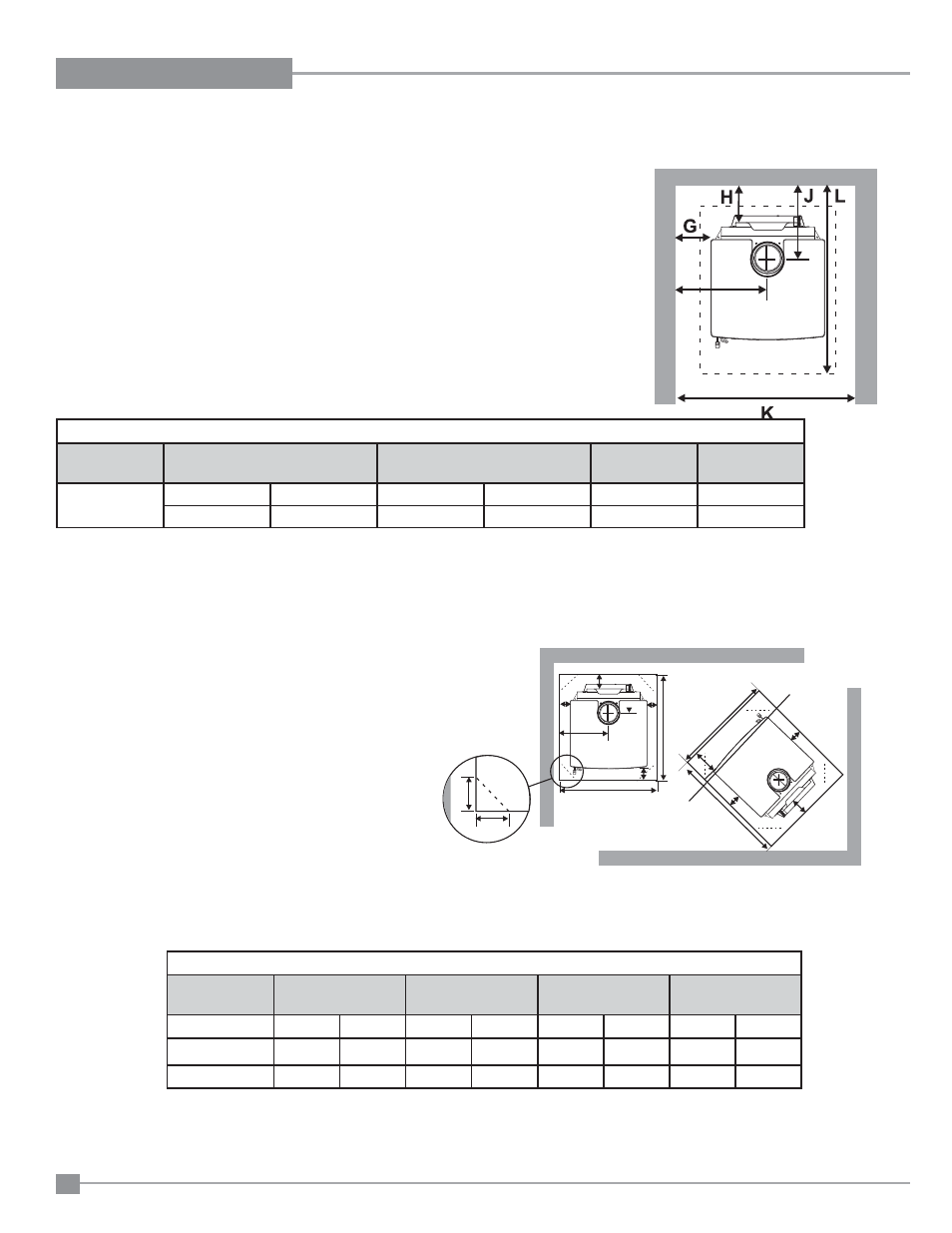

Minimum Alcove Clearance to Combustible Materials
Unit
From Back Shield
+ Side Shields.
From Flue
Center-Line
Min.
Width
Min. Hearth
to Rear Wall
CS2400
G
H
I
J
K
L
15"
6.5"
28"
14-7/8"
56"
47-1/2"
Minimum Overall Depth (Y) of Floor Protector
Unit
Residential
"C" Vent
Residential
Close Clearance
Mobile Home
Close Clearance
Alcove
CS2400
Y
Z
Y
Z
Y
Z
Y
Z
USA
47-5/16"
6"
47-5/16"
6"
47-5/16"
6"
47-5/16"
6"
Canada
51-5/16"
8"
51-5/16"
8"
51-5/16"
8"
51-5/16"
8"
MINIMUM ALCOVE CLEARANCE TO COMBUSTIBLE MATERIALS
MEASUREMENTS "FROM UNIT" ARE FROM THE SIDE SHIELDS OF THE STOVE TO A SIDE WALL OR TO A CORNER, AND
FROM THE REAR HEAT SHIELD TO A BACK WALL
Note:
If venting horizontally, fl oor protection must extend under the chimney connector and 2" inches beyond each side.
