Installation, Ashlip installation wood storage – Regency Alterra CS2400 Medium Wood Stove User Manual
Page 21
Regency CS2400 Freestanding Wood Stove
21
INSTALLATION

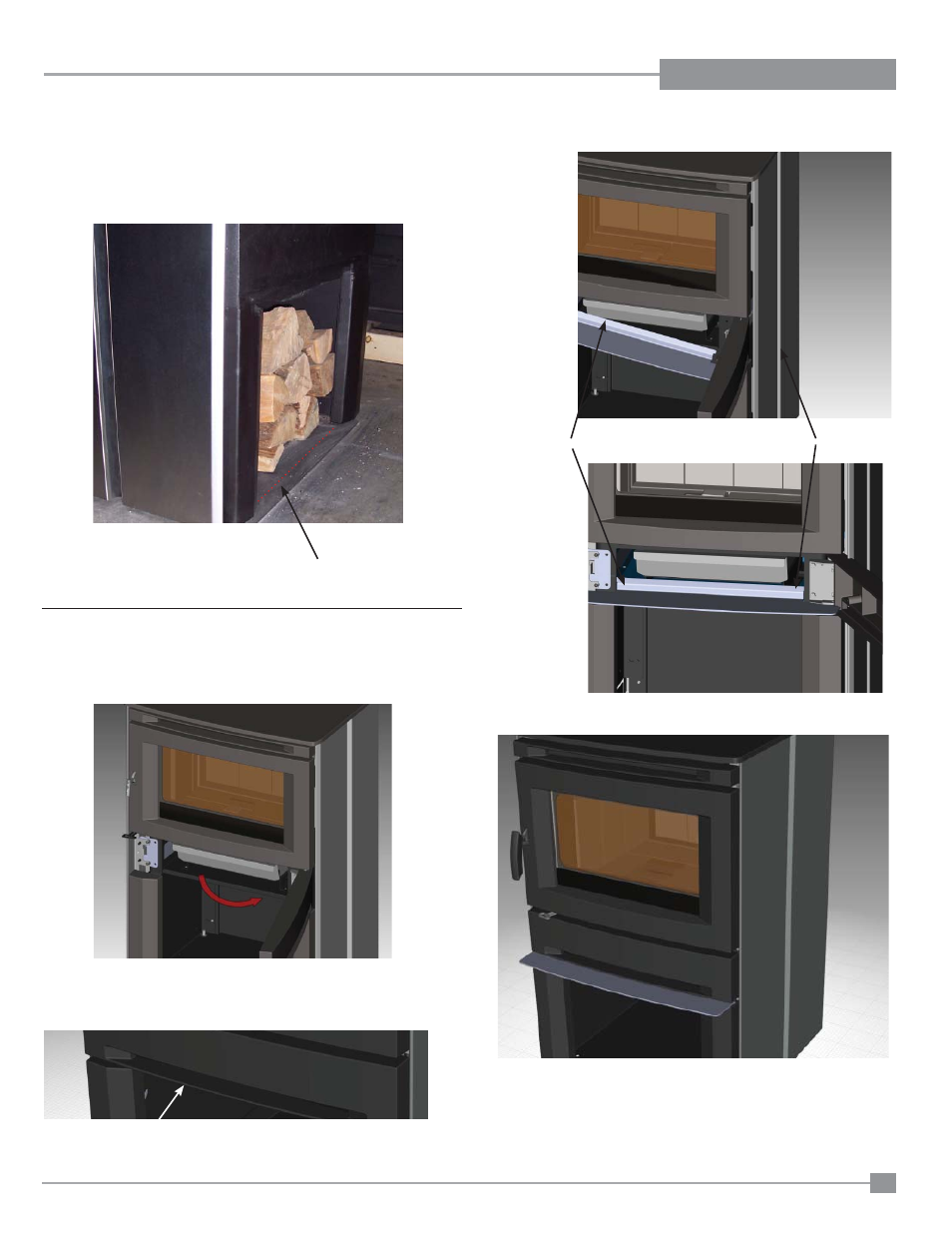

ASHLIP INSTALLATION
WOOD STORAGE
When storing wood within pedestal- ensure wood does not protrude past door
opening. Do not store newspaper within pedestal.
Note:
Please refer to local codes. (B365, NFPA 211) and your local jurisdiction..
Store wood behind opening
1) Open lower surround door.
2) Ashlip to be positioned just below the ashdrawer (if installed).
3)
Manoeuvre ashlip into position on an angle - the tabs on the ashlip rest
behind side walls on unit - see diagrams below.
Tabs on ashlip
Final install of Ashlip
Ashlip to be positioned here
