Regency CS2400 Freestanding Wood Stove
INSTALLATION
OPTIONAL OUTDOOR AIR KIT INSTALLATION

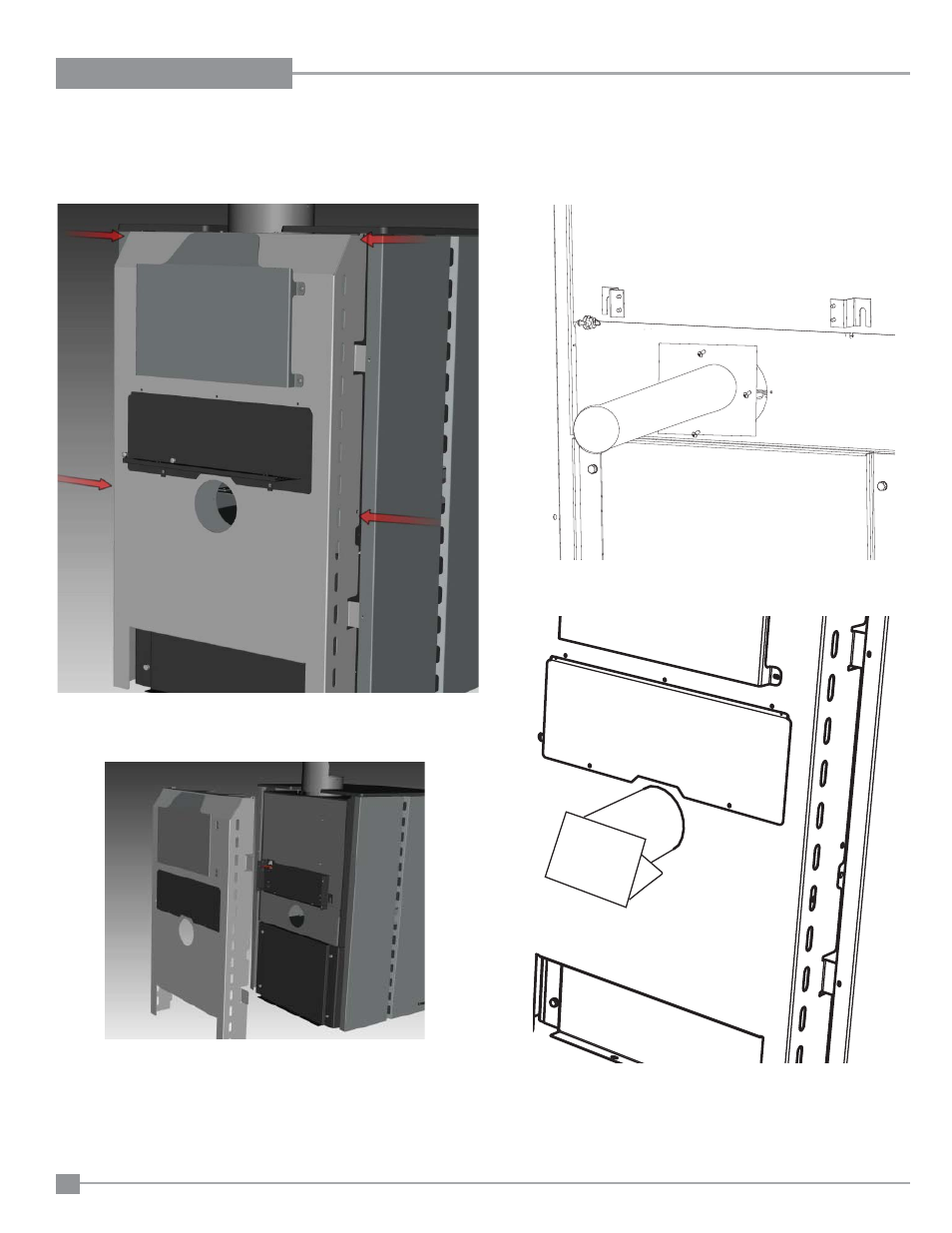

1)
Remove 4 screws from locations shown below to remove backing
plate.
2)
Center the plate / pipe over the opening on the back of the stove.
Secure with 4 self tapping screws.
3)
Reinstall the backing plate over the air kit pipe. Secure with 4 screws
removed from step 1.
4)
Slide cap over end to pipe to complete the installation.
