Sunnex Solo Spot Service & Installation Manual 6
CAUTION! The arm is equipped with friction joints. Do not tighten the joints excessively as
this will cause uneven movement and could damage the arm.
2.3 SoloSpot Ceiling (HM2017-44EXT)
1. Securely fasten lamp down tube from ceiling. It is recommended that 6-5/16" diameter or larger fasteners of the
proper length for your individual application be used. Be sure down tube is securely mounted to structural framework.
Down tube should be mounted plumb and square to ceiling surface.
2. Be sure transformer plug is not plugged into power source at this time.
3. After down tube support is secured plug electrical connectors at the end of the down tube support and lamp arm
together.

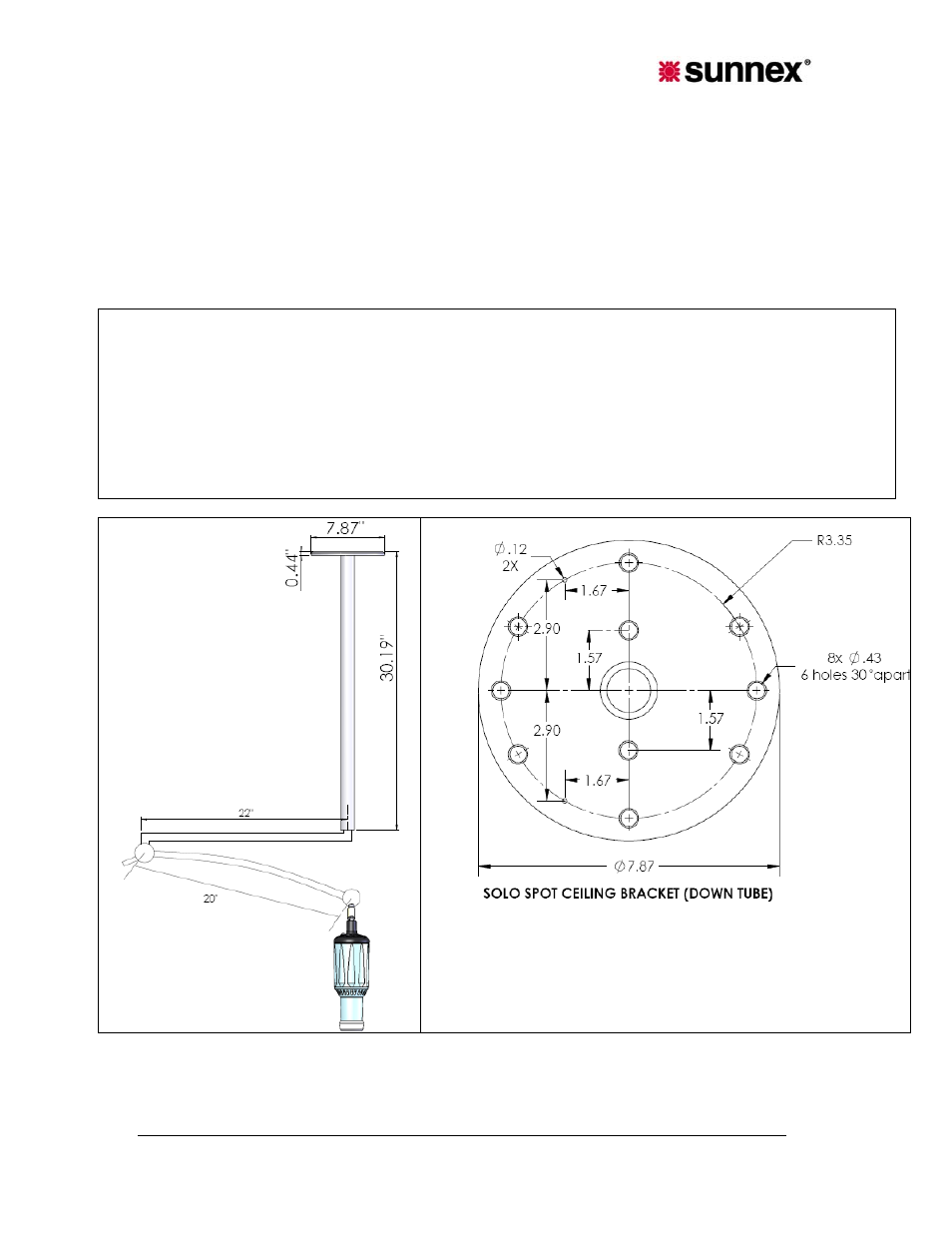

HOLE PATTERN
