Summit SWC1966 - Manual (Page 10)

10
-
Model SWC1875B
1 2
1 5
7 8 9 10
4
3
5
6

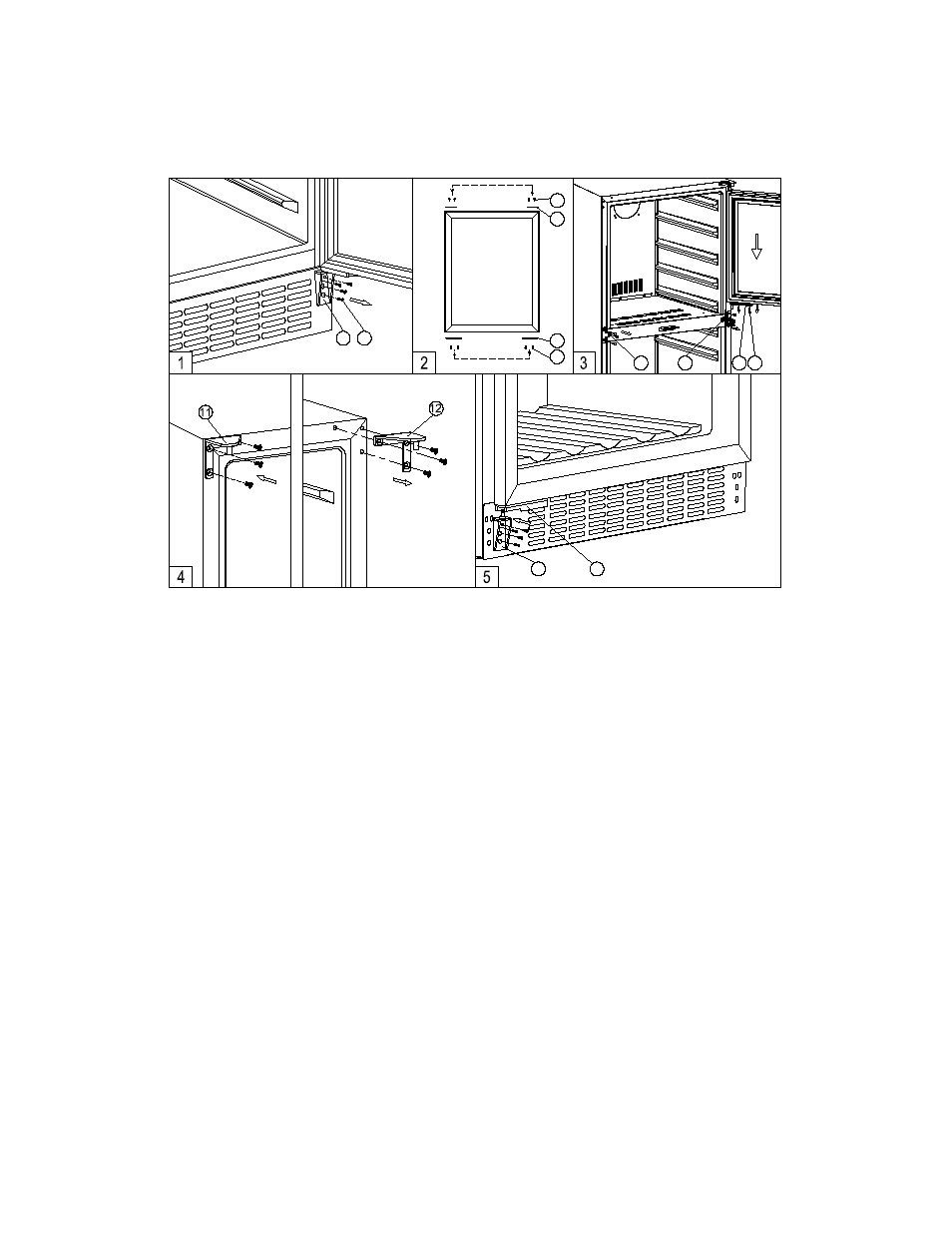

1. Remove the bottom hinge 1 by unscrewing the four lock screws 2. Be careful to hold the lower glass
door firmly after removing the screws. Then gently pull down to remove the lower glass door from the
middle hinge 8 and place it on a padded surface to avoid the risk of damage. (Fig. 1)
2. Unscrew and transfer the lower door adapters 4 & 5 to the left designated positions of glass door. (Fig.
2)
3. Remove the upper door adapter 9 by unscrewing the two lock screws 10.Be careful to hold the upper
glass door firmly after removing the screws. And then gently pull down to remove the upper glass
door from the top hinge and place it on a padded surface to avoid the risk of damage. (Fig. 3)
4. Unscrew and remove the middle hinge 8 and the right top hinge 12. (Figs. 2 & 3)
5. Pop out the cover caps on the left side of cabinet and use them to
cover the screw holes on the right
hand side. At the same time unscrew and transfer the middle decoration cover 7 to the right
designated position of cabinet.
6. Screw the middle hinge 8 and the alternative left top hinge 11 included in the fittings
on the left hand
side of cabinet. (Fig.4)
7. Relocate the upper door adapter 9 and set the upper glass door to the designated position and install
the two lock screws 10 to connect the upper door adapter 9 with the upper glass door and tighten
them before the upper door is leveled.
8. Relocate the lower glass door and install the bottom hinge 1 to the designated position. Recheck and
adjust the lower door alignment by loosening the screws 3 & 6and moving the door adapters 4 & 5.
Tighten the four screws 3 & 6 after the door is levelled. (Fig. 5)
